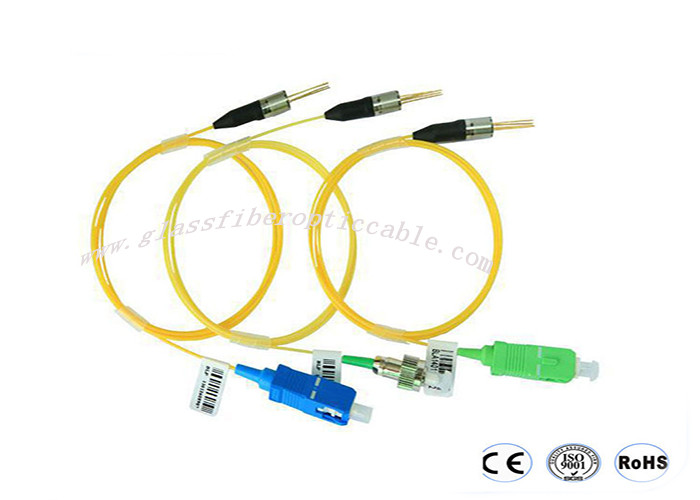

Fiber Optic Pigtail Coaxial 1310nm 1550nm DFB Laser Module Designed
10sets
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: ISO9001;2015
Model Number: 1310 &1550nm DFB Laser Module
High Light:

1550nm DFB Laser Module

,

1310nm DFB Laser Module

Payment & Shipping Terms

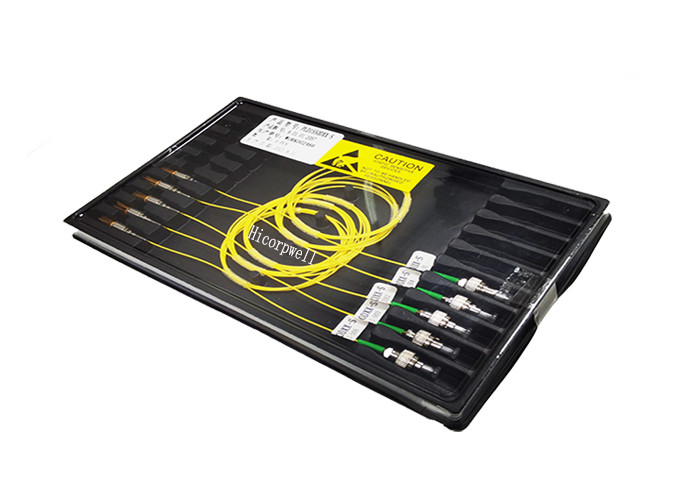

Packaging Details: Coaxial package with a single mode 26X5.5X19 cm 0.3KG for 10 pcs
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000pcs Per Week
Specifications
Type: 1310 &1550nm DFB Laser Module
Wavelength: 1310 &1550nm
Isolation: Single/double
TEC (Cooled): With / Without
Tolerance: +/-3nm
Payment: TT/PayPal
Max. Reverse Voltage: 15(PD)
Package Type: Through Hole
Product Description

Fiber Optic Pigtail Coaxial 1310 &1550nm DFB Laser Module Designed





HCW-1550nm DFB Pigtailed Components



Features



Ø Built - in optical isolator

Ø Low capacitance and low dark current

Ø
High stability of DFB lasers die

Ø Low threshold current , low operating current

Ø Integrated high isolation , low insertion loss



Applications



CATV Reverse Transmission

Other Analog or Digital Optical Transmission



Absolute Maximum Ratings



Parameter Symbol Min. Max. Unit Test Condition
Storage Temperature Tstg -40 100 -
Operating Temperature Top -40 85 -
Forward Current(LD) If(LD)   150 mA
Reverse Voltage(LD) Vr(PD)   2 V
Forward Current(PD) If(LD)   2 mA
Reverse Voltage(PD) Vr(PD)   15 V
Soldering Temp - - 260 -
Soldering Time - - 10 S S





Optical & Electrical Characteristics



Parameter Symbol Min. Typ. Max. Unit Test Condition
Rated Power Po 6 8   mW Ith+40mA
Threshold Current Ith   5 10 mA CW
Operating Operating If   45 55 mA CW,P=Po
Forward Voltage Drop Vop - 1.1 1.5 V CW, Ith+40mA
Cent Wavelength λc 1540 1550 1560 nm -3dB
Spectrum Width Δλ -   0.2 nm -20dB
Side-mode Suppression Ratio SMSR 35   - dB -
Bandwidth(3dB) Bw - 2.5   GHz -
Monitor Current Im 0.1   0.9 mA CW, Ith+40mA
Dark Current of Monitor Id - - 0.1 uA 5V
Relative Intensity Noise RIN - -155 -150 dB/Hz CW, 25℃
RF Bandpass Flatness BF   ±1.0   dB If=Iop,45MHz-2500MHz,T=25 °C
Third-order Distortion IMD3 - -55 - dBc 2 tone test,
Optical Isolation ISO 30 40 - dB 25℃

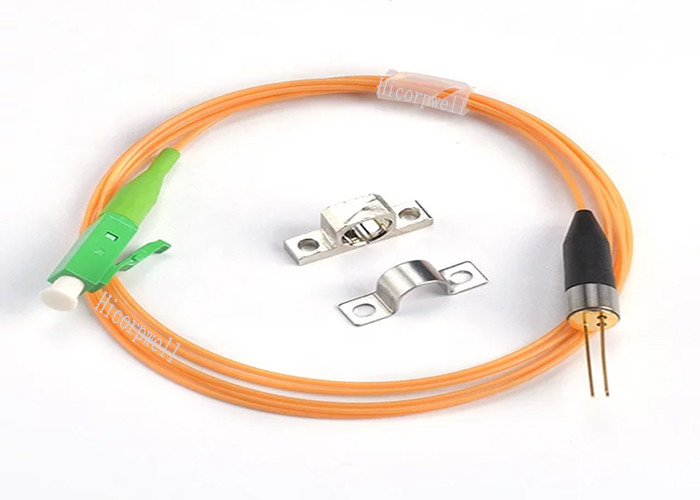

Fiber Optic Pigtail Coaxial 1310nm 1550nm DFB Laser Module Designed 0

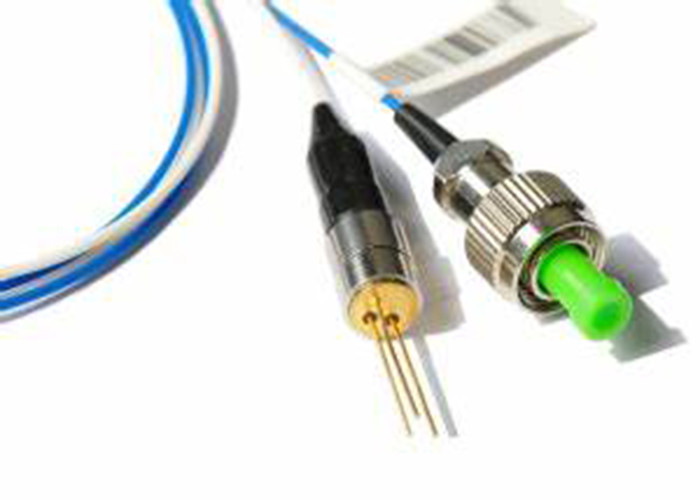

Fiber Optic Pigtail Coaxial 1310nm 1550nm DFB Laser Module Designed 1

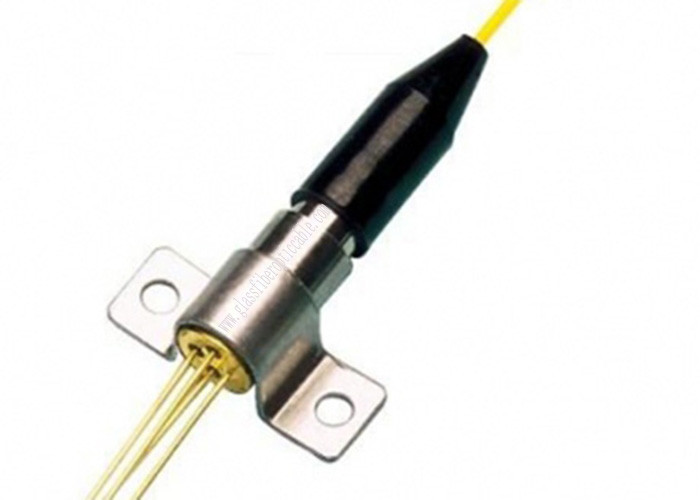

Fiber Optic Pigtail Coaxial 1310nm 1550nm DFB Laser Module Designed 2
