RF Attenuator DC-3GHz Attenuator 100w Coaxial Attenuator 3dB RF Attenuator DIN Male to Female for IBS&BTS

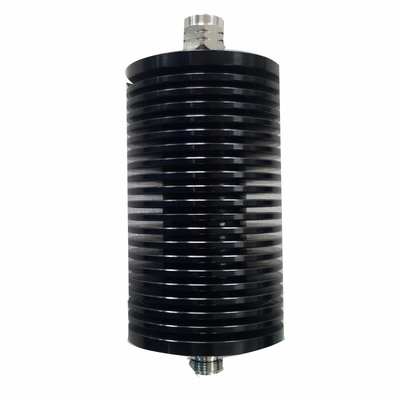

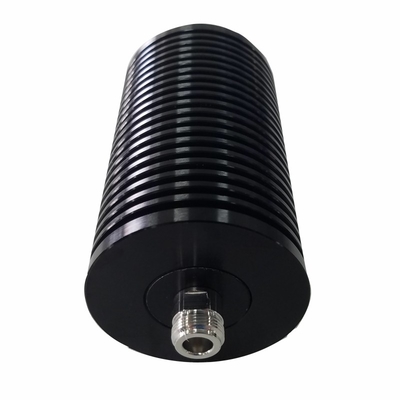

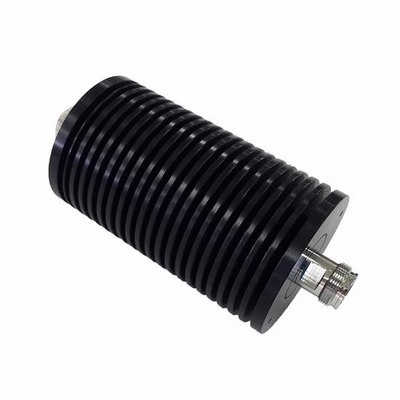

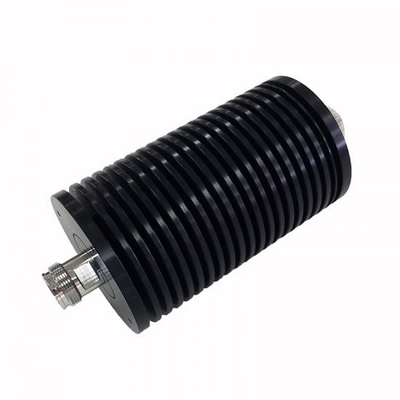

RF Attenuator (DC-3GHz, 100W, 4.3-10 M/F)
DC-3GHz RF Attenuator is wide frequency band(2G/3G/4G/LTE Coverage),
100W RF Attenuator is high power and widely used in IBS &DAS system.
Product Features
◆ Wide Frequency Band DC-3GHz
◆ Low VSWR
◆Low Attenuation Accuracy
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
| Model No. | M-100-4MF-03 | M-100-4MF-06 | M-100-4MF-10 | M-100-4MF-15 | M-100-4MF-20 | M-100-4MF-30 | |
| Freq(MHz) | DC-3GHz | ||||||
| Attenuation(dB) | 3 | 6 | 10 | 15 | 20 | 30 | |
| Accuracy(dB) | ±0.5 | ±0.5 | ±0.8 | ±1.0 | ±1.2 | ±1.5 | |
| VSWR | ≤1.2 | ||||||
| Average Power(W) | 100 | ||||||
| Impedance | 50 ohm | ||||||
| Connector | 4.3-10 M-F | ||||||
| Color | Black | ||||||
| Ambient Temp(deg) | -35~+75 | ||||||
| Relative Humidity | 5%-95% | ||||||
