High Or Low Hydroxyl Ion (OH) Concentration 100 Um/200um/300um/400um Fibers For UV-To-Visible Visible-To-NIR
5KM per reel , 10km per reel
MOQ
negotiation
Price
High Or Low Hydroxyl Ion (OH) Concentration 100 Um/200um/300um/400um Fibers For UV-To-Visible Visible-To-NIR
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: 100 um/200um/300um/400um Fibers
High Light:

100 um Optical Fiber

,

Low Hydroxyl Ion 200um Fiber

,

300um Bare Optical Fiber

Payment & Shipping Terms
Packaging Details: Standard length: 5km/reel or 10km per reel (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Specifications
Fiber Type: 100 Um/200um/300um/400um Fibers
Paintcoat Color: Aqua,yellow ,black Or Others
Core (um): 50um-1000um
UVVIS Fibers: Ultraviolet And Visible Wavelengths
NA: 0.22±0.02 (0.1to 0.28 On Request);
Applications: Ultraviolet Spectrum Analysis, Laser Transmission, Health Detection, Nuclear Energy And Semiconductor Etc;
Coating Material: Acrylate & Polymide
Product Description

High or low hydroxyl ion (OH) concentration 100 um/200um/300um/400um Fibers for UV-to-visible visible-to-NIR application



Technical   data


Wavelength / spectralrangeUV:190 – 1200nm


WF:300 – 2400nm


Numerical aperture(NA)0,12 ± 0,02|0,22 ± 0,02|0,28 ± 0,02orcustomised


Operating temperature-190bis+350°C


Core diameter Available from 25 to 2000μm


Standard core / cladding ratios1 : 1,04|1 : 1,06|1 : 1,1|1 : 1,15|1 : 1,2|1 : 1,25|1 : 1,4 or customised


OH content UV:high(>700ppm)


WF:low(<1ppm)


Fibers with OH contents<0,25ppm are available upon request


Standard proof test100kpsi (nylon,ETFE,acrylate jacket) |70kpsi (polyimide jacket)


Minimum bending radius50 × cladding diameter(short-term mechanical stress)


150 × corediameter(during use with high laser power)



◆ Fine transmission performance at ultraviolet waveband, antiγ-ray at 800nm;


◆ Applied in ultraviolet spectrum analysis, laser transmission, health detection, nuclear energy and



semiconductor etc;


◆ NA=0.22±0.02 (0.1to 0.28 on request);


CCDR: 1:1.04, 1:1.1, 1:1.2 (1:1.06, 1:1.15, 1:1.25, 1:1.4on request)



First choice for applications including spectroscopy, medical diagnostics, medical technology, laser delivery systems and many more.




Core[μm](±2%) 50 100 105 115 192 200 300 365 400 500 600 800 1000
cladding[μm](±2%) 125 110 125 125 200 220 330 400 440 550 660 880 1100
coating material : Acrylate, Temperature range[℃]: -40-85
coating[μm](±3%) 245 245 245 245 245 350 450 550 550 770 840 1100 1300
coating material : Polymide, Temperature range[℃]: -65-300
coating[μm](±3%) 145 125 145 145 145 245 355 425 480 575 710 - -

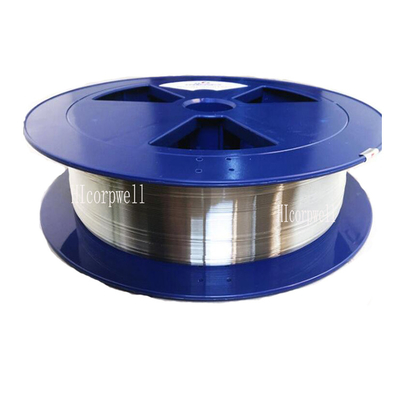

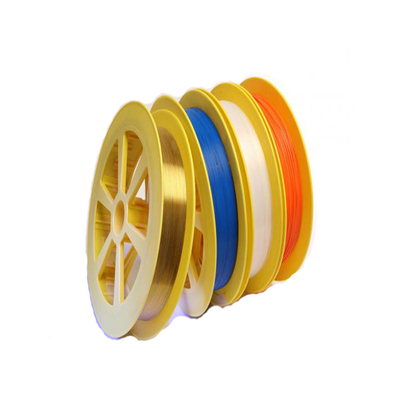

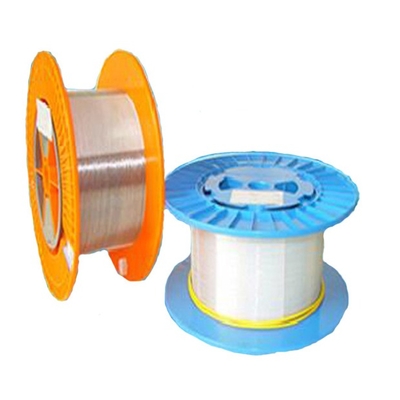

High Or Low Hydroxyl Ion (OH) Concentration 100 Um/200um/300um/400um Fibers For UV-To-Visible Visible-To-NIR 0High Or Low Hydroxyl Ion (OH) Concentration 100 Um/200um/300um/400um Fibers For UV-To-Visible Visible-To-NIR 1High Or Low Hydroxyl Ion (OH) Concentration 100 Um/200um/300um/400um Fibers For UV-To-Visible Visible-To-NIR 2
