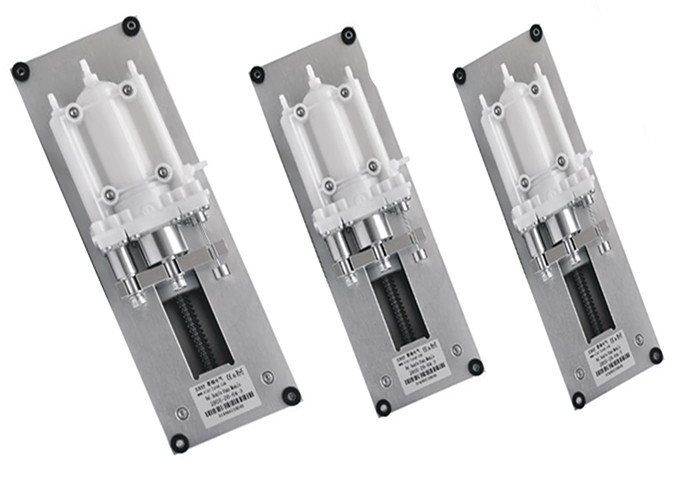

Ｈigh Accuracy Long Life Three-Channel Plunger Syringe & Syringe Module Negative Pressure Pump
This suction pump assembly is dedicated to 3-Part differential hematology analyzer, long travel, high accuracy, long life and maintenance-free. The specifications of the three-channel plunger are different, taking into account the suction and drainage for micro volumetric sample, diluent and hemolytic agent . Cavity is moulded, low cost, good consistency.
It is mainly used in 3-Part differential hematology analyzer, in which the empty travel interval of sampling pump body can effectively avoid the sampling abnormal movement caused by linkage, improve sampling accuracy and reduce control complexity.
|Name||Sample acquisition pump||Hemolytic agent pump||Diluent pump|
|Stepper motor step angle(°)||1.8|
|Motor current (A)||2.0|
|Screw pitch (mm)||2.50|
|Linear distance per step of motor (mm)||0.0125|
|Fluid volume per step of motor (ul/step)||0.02513||0.35343||2.51327|
|Accuracy of suction and drainage Note①||1%|
|Repeatability of suction and drainage (Cv) Note②||0.5%|
|Life cycle||1 million|
|Working medium||Clear water, oil, weak acid and base, etc.|
|Thread Interface Form||Barbed type|

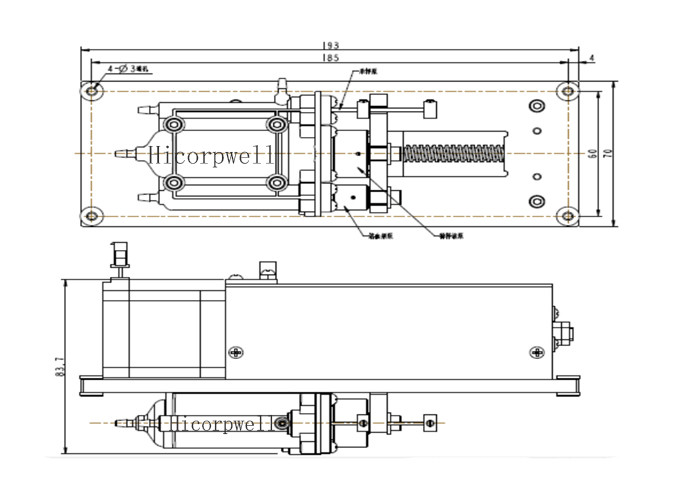

|overall dimension (mm)||193*70*83.7|
Note 1: The nominal accuracy of suction and drainage is measured at a range of no less than 10% displacement.
Note 2: The nominal repetition accuracy is measured at a range of no less than 10% displacement.
