Optical Fiber Array 4 8 16 32 64 Channels Articulated Arm Fixed Optical Array Fiber
10 sets
MOQ
negotiation
Price
Optical Fiber Array 4 8 16 32 64 Channels Articulated Arm Fixed Optical Array Fiber
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: ISO9001;2015
Model Number: 4 8 16 32 64 Channels Fiber Array For PLC
High Light:

64 Channels Optical Fiber Array

,

32 Channels Fiber Array For PLC

,

16 Channels Fiber Array For PLC

Payment & Shipping Terms
Packaging Details: 12x9.8x2.5 MM
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500pcs Per Week
Specifications
Channels Qty: 4 8 16 32 64 Channels Fiber Array For PLC
Operating Temperature: '-40~+85
Fiber Length: 1m Or On Customer’s Request
Material: Silicon, Quartz
Fiber Type: ITU G652.D/G657.A Or Custom
Polishing Angle (°): 0°(± 0.3°) Or 8°(±0.3°)
V-groove Pitch(um): 250/127(±0.5)
Used For: PLC
Product Description

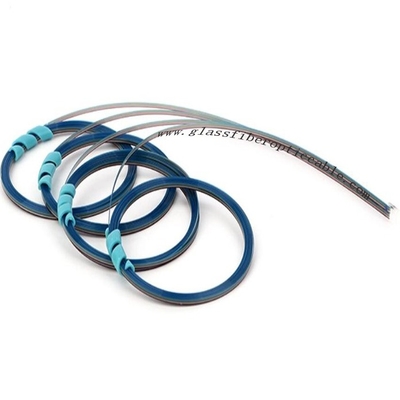

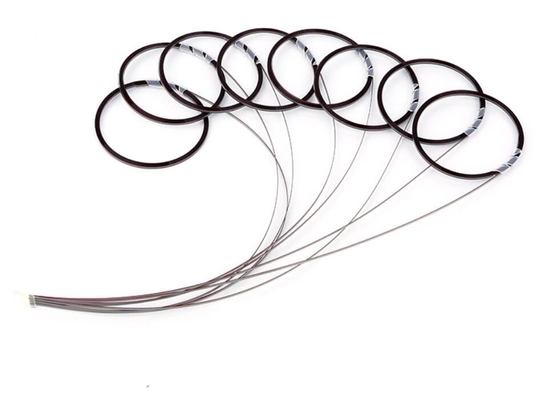

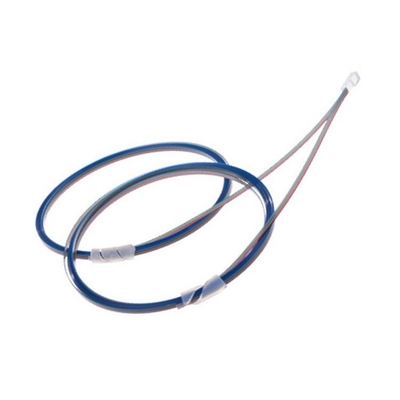

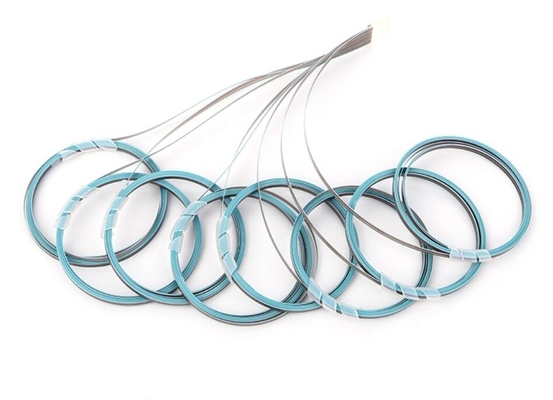

Optical Fiber Array Technologies Optical Fiber Array 4 8 16 32 64 Channels Articulated Arm Fixed Optical Array Fiber



Hicorpwell fiber array provides a variety of options,such as the channel number of fiber array,core spacing and grinding angle.



It is widely used in planar optical waveguide (PLC),rrayed waveguide grating (AWG),Active array optical devices in different



fields such as MEMS and so on;the main material of HVCs high- quality fiber arrays is quartz glasswith a small expansion



coeficient and a unique production process so that its products maintain high-quality working conditions in harsh environments.



Channels



1CH 2CH 4CH 8CH 16CH 32CH 64CH
Material Silicon, Quartz
V-groove Pitch(um) 250/127(±0.5)
Polishing angle (°) 0°(± 0.3°) or 8°(±0.3°)
Pigtail Type 250/900um 2core 250/900um 4core Ribbon 8core Ribbon 2×8core Ribbon 4×8core Ribbon 8×8core Ribbon
Channel Spacing (um) 250 250 250 127 127 127 127
Package (mm) 8x2.5x2.5 9.5x2.5x2.5 9.5x2.5x2.5 9.5x2.5x2.5 1.5x3.0x2.5 11.5x5.7x2.5 12x9.8x2.5
Working Temp (°C) -40 ~ +85
Storage temp (°C) -40 ~ +85
Fiber length 1m or on customer’s request
Fiber type ITU G652.D/G657.A or custom





Ordering information



CM -xx -x -xx -xx -xx -xx

C=CWDM

M=Module

Number of

Channels

Configuration 1st Channel Connector Pigtail fiber type Fiber length

04=4 Channels

08=8 Channels

16=16 Channels



M=Mux

D=Demux

27=1270nm

47=1470nm

49=1490nm

61=1610nm

No Connector

SC/PC(UPC,APC)

LC/PC(UPC,APC)

FC/PC(UPC,APC)

ST/PC(UPC,APC)



00=bare fiber

01=900um

loose tube 02=2mm Cable 03=3mm Cable

10=1.0m

12=1.2m

15=1.5m



Features

*Various coupling ratio
*Single mode and multi mode available
*Low PDL,low excess loss,low insertion lossRelated Products
