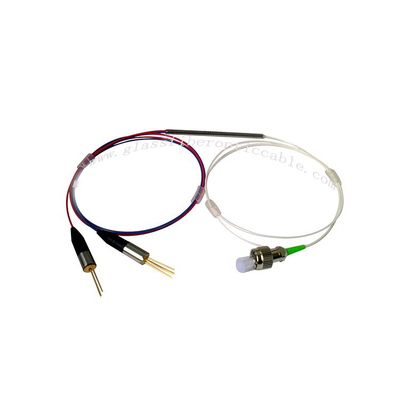

Fiber Optic Pigtail SC FC LC/APC Coaxial SM 2.5G DFB Laser Diode
Fiber Optic Pigtail Types
Fiber optic pigtails are available in various types: Grouped by pigtail connector type, there are LC fiber optic pigtails, SC fiber pigtails and ST fiber pigtails, etc. By fiber type, there are single-mode fiber optic pigtail and multimode fiber optic pigtail. And by fiber count, 6 fibers, 12 fibers optic pigtails can be found in the market.
By Fiber Type
Fiber optic pigtails can be divided into single-mode (colored yellow) and multimode (colored orange) fiber. Multimode fiber optic pigtails use 62.5/125 micron or 50/125 micron bulk multimode fiber cables and terminated them with multimode fiber optic connectors at one end. 10G multimode fiber cables (OM3 or OM4) are also available in fiber optic pigtails. The jacket color of 10G OM3 and OM4 fiber optic pigtail is usually aqua. Single-mode fiber pigtail cables use 9/125 micron single-mode fiber cable and terminated with single-mode fiber connectors at one end.
By Connector Type
According to different types of pigtail cable connector terminated at the end, there are LC fiber pigtail, SC fiber pigtail, ST fiber pigtail, FC fiber pigtail, MT-RJ fiber pigtail, E2000 fiber pigtail and so on. With different structures and appearance, each of them has their own advantages in different applications and systems. Let’s go through some widely used ones.
SC Fiber Optic Pigtail: SC pigtail cable connector is a non-optical disconnect connector with a 2.5mm pre-radiused zirconia or stainless alloy ferrule. SC fiber pigtail is economical for use in applications such as CATV, LAN, WAN, test and measurement.
2.Applications :
Optical Transmitter of Data Signal
Optical Transmitter of Analog Signal
Optical Bidi Module and Optical Receiver
Test Equipments
Transceiver Module
Telecommunication
3.ABSOLUTE MAXIMUM RATINGS (Tc=25°C)
| Parameter | Symbol | Ratings | Unit |
| LD Operating Current | If(LD) | Ith+20 | mA |
| LD Reverse Voltage | Vr(LD) | 2.0 | v |
| PD Operating Current | If(PD) | 2 | mA |
| PD Reverse Voltage | Vr(PD) | 15 | V |
| Operationg tempereture | Topr | -40~+85 | °C |
| Storage tempereture | Tstg | -40~+85 | °C |
| Welding tempereture | Tsld | 260/10 | °C/S |
4. (Tc=25oC) OPTICAL AND ELECTRICAL CHARACTERISTICS
| Parameter | Symbol | Min | Type | Max | Unit | Test Condition |
| Threshold Current | Ith | 5 | 15 | mA | CW | |
| Forward Voltage | Vop | 1.1 | 1.6 | V | CW,If=Iop | |
| Optical Output Power | Pf | 0.2 | 2.0 | mW | CW,If=Ith+20mA | |
| Center Wavelength | λc | 1547 | 1550 | 1553 | nm | CW,P0 = Pf |
| Rise/Fall Time(10~90)% | Tr/Tf | 0.4 | nS | If=Ith,Po=Pf(10-90)% | ||
| Monitor Current | Im | 0.1 | 1 | mA | CW,P0 = Pf | |
| Capacitance PD | CPD | 10 | 15 | PF | VRD=5V | |
| Dark Current PD | Id | 1 | nA | VRD=5V | ||
| Side Mode Suppression Ration | SMSR | 30 | 35 | dB | CW,Po=5mW |
According to customer requirements out of fiber-power design; side-mode suppression ratio only applies to DFB Laser Module .
5. LD PinASSIGNMENT
6.Purchase information BLLD-XXX-XXXX-XXX Coaxial Package laser diode
| —X | X | X | —X | X | X | X | —X | X | X | |
| Package type | Type conncetor |
Package series |
Type LD | Wavelength | power |
PD Conn ector pin |
Date rate | isolator | A&V ROHS | |
| Fiber | Rec | |||||||||
|
P:fiber
R:receptacle |
F:FC/UPC S:SC/UPC T:ST/PC FA:FC/APC SA:SC/APC N:NO |
A:FC-1 B:FC-2 C:FC-3 D:SC E:ST |
1:Type 1 2:Type 2 3:Type 3 4:Type 4 5:Type 5 no:R |
D:DFB LD
F:FP LD |
31:1310nm 55:1550nm 51:1510nm 53:1530nm 57:1570nm |
05:0.5mW 10:1.0mW 20:2.0mW 30:3.0mW 40:4.0mW |
A:type A B:type B C:type C |
1:1.25Gb/s 2:2.5Gb/s |
G:isolator
NO:nothing |
R:pass ROHS
NO:nothing |
The part number is PFA2-F3110A-1GR,It means laset diode is FP wavelength of LD is 1310nm,pin-out is type A ,Power is 1mW .
