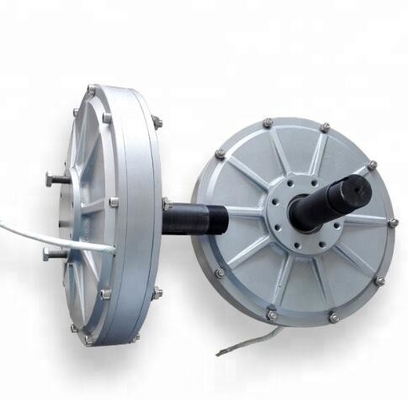

Best Generator Low Rpm Permanent Magnet Generator Coreless 2KW 50RPM 3KW 60RPM 5KW 80RPM
we can supply modified kinds of Coreless Disk Permanent Magnet Generator.
The main models are as follow:
HCW-7.5KW 150RPM 38HZ
HCW-10KW 150RPM 30HZ
HCW-10KW 200RPM 50HZ
HCW-20KW 350RPM
HCW-20KW 300RPM 75HZ
HCW-20KW 225RPM 60HZ
HCW-50KW 600RPM 160HZ
| Rated Power | 3KW | 3KW | 5KW | 6KW | 10KW |
| Rated Rotate Speed | 100RPM | 180RPM | 100RPM | 150RPM | 100RPM |
| Rated Voltage | 380VAC | 380VAC | 380VAC | 380VAC | 400VAC |
| Rated Current | 4.6 | 4.7 | 7.6 | 15.2 | 14.5 |
| Efficiency | >85% | >85% | >88% | >88% | >88% |
| Wending Method | Y | Y | Y | Y | Y |
| Insulating Resistance | 100Mohm Min(500V DC) | 100Mohm Min(500V DC) | 100Mohm Min(500V DC) | 100Mohm Min(500V DC) | 100Mohm Min(501V DC) |
| Leakage Level | <5 ma | <5 ma | <5 ma | <5 ma | <5 ma |
| Start Torque | <1 N/M | <0.5 N/M | <0.5 N/M | <1 N/M | <1N/M |
| Phase Type | 3 Phase | 3 Phase | 3 Phase | 3 Phase | 3 Phase |
| Structure | Out rotor | Out rotor | Out rotor | Out rotor | Out rotor |
| Stator | Coreless wire coil | Coreless wire coil | Coreless wire coil | Coreless wire coil | Coreless wire coil |
| Rotor | Rare Earth Permanent Magnet | Rare Earth Permanent Magnet | Rare Earth Permanent Magnet | Rare Earth Permanent Magnet | Rare Earth Permanent Magnet |
| Generator Shell Diameter | 620 | 550 | 700 | 620 | 770 |
| Generator Shell Length | 410 | 330 | 400 | 410 | 590 |
| Weight | 110 | 65 | 125 | 110 | 245 |
| Shaft drameter | 80 | 78 | 98 | 80 | 85 |
| Generator shell material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Shaft material | Carbon steel | Carbon steel | Carbon steel | Carbon steel | Carbon steel |
| Bearing | SKF Deep groove ball bearing | SKF Deep groove ball bearing | SKF Deep groove ball bearing | SKF Deep groove ball bearing |
SKF Deep groove ball bearing |
Our magnetic generator is free 3 years warranty, All life long technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) the warranty period, company's quality problems caused by the maintenance of the freight borne by
the company, if not under warranty or man-made damage, the freight charges by the customer.
(3) Free maintenance services during the warranty period the cost involved be borne by the company,
do not charge a fee to customers, free warranty if any damage outside the warranty period,
the company will charge a fee for labor costs and materials.
