SC PC36 LC APC 24 Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk
2 pcs
MOQ
negotiation
Price
SC PC36 LC APC 24  Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: FC/SC/ST/LC Hand Throwing Disk
High Light:

Fiber Optic Polishing Hand Throwing Disk

,

Steel Fiber Optic Polishing Disc

Payment & Shipping Terms
Packaging Details: One piece in a carton
Delivery Time: 15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100pcs Per Week
Specifications
Name: FC/SC/ST/LC Hand Throwing Disk
Connectors: SC FC ST LC MPO MTP MTRJ
Type: Square Pressure Polishing Machine
60RPM: Grinding Plate Is Less Than 0.015mm
Usage: Polishing
Power Supply: 220V(AC), 50Hz
Cores: 18 20 24
Timer: Omron Rotation, Key Digital Timer, Any Timing
Product Description

SC PC36 LC APC 24 Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk



Features



* Fiber ferrules for grinding 2.5mm and 1.25mm PC end faces, such as FC, SC, ST/LC, etc.

* Made of high quality finished stainless steel, hard and wearable;

*The inner and outer round edges are designed for easy manual operation;

*The processing size is exquisite, smooth and burr-free, ensuring the grinding effect;

* Light and small, easy to carry;


Description



Under the condition that replacement or welding is not allowed, the end face of the tail fiber of damaged ( including scratches and cracks )



optical devices with various functions ( such as lasers, transceivers, modulators, optical switches, amplifiers, compensators, etc. )



Fiber optic manual grinding disc Manual grinding disc for repairing optical fiber end face is a fast,



simple and efficient tool for repairing end face on site.





Specifications



1. Timer: Omron rotation, key digital timer, any timing


2. Suitable: φ2.5mm PC,APC:FC,SC,ST;φ1.25mmPC,APC:LC,MU,MT,mini-MT,MT-RJ;



PC,APC:MPO,MTP,MPX;Pig-tail;Fiber-arry;PLC




3  Cores:18 20 24

4.  Standard fiber optic connectors: FC/UPC,SC/UPC,ST/UPC,LC/UPC,MU/UPC,



     FC/APC,SC/APC,MT-RJ,E2000 etc.



5.  Connector insertion loss: ≤0.2dB(SM),≤0.15dB(MM)

6.  Return loss: ≥50dB(PC),≥60dB(APC)

7.  Radius of curvature: PC:10~25mm(φ2.5mm),7~25mm(φ1.25mm),APC:5~12mm

8.  Repeat loss: ≤0.1dB;Swap loss: ≤0.2dB

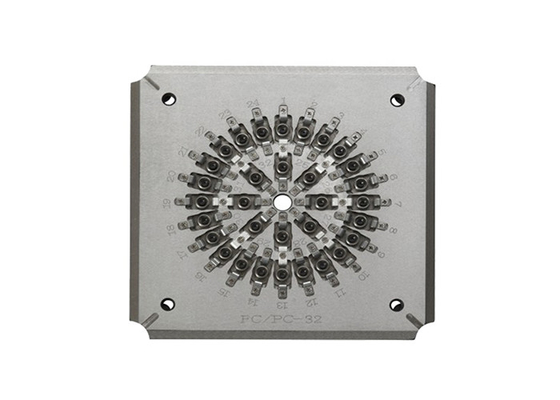

SC PC36 LC APC 24  Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk 0

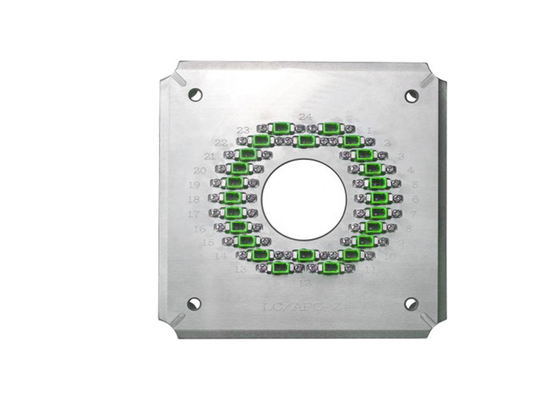

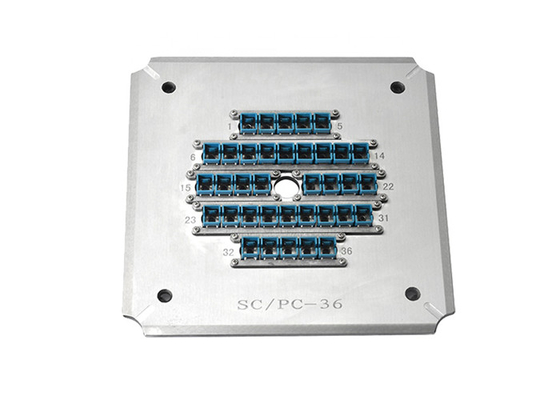

SC PC36 LC APC 24  Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk 1       SC PC36 LC APC 24  Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk 2
