Hicorpwell HCPD3.6-A0.3 Two Color Si-Photodetector TO-5 Peaks 0.94 And 3.3 Micrometers
5 pcs
MOQ
negotiation
Price
Hicorpwell HCPD3.6-A0.3 Two Color Si-Photodetector TO-5 Peaks 0.94 And 3.3 Micrometers
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: ISO9001;2015
Model Number: HCPD3.6-A0.3
High Light:

300um Two Color Photodetector

,

Two Color Si-photodetector

Payment & Shipping Terms
Packaging Details: Two color photodetector TO-5 Peaks 0.94 and 3.3 micrometers
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500pcs Per Week
Specifications
Type: Two Color Photodetector
Active Diameter: 300um
Name: Si-photodetector
Responsivity: Vr=-0.2V, λ=3000nm
Rise Time: RL=50Ω, Vr=-0.2V
-3dBm Bandwidth: RL=50Ω, Vr=-0.2V
Reverse Breakdown Voltage: Ir=10uA
Product Description

Hicorpwell HCPD3.6-A0.3 Two color Si-photodetector TO-5 Peaks 0.94 and 3.3 micrometers



FEATURES



> High reliability

> Low dark current

> Cut off wavelength to3600nm

> Topillumination planar PIN PD





APPLICATIONS



> Laser pulse test

> Optical fiber sensor

Absolute Maximum Ratings

> GasAnalyzer

> Science analysis and experiment

> Space light detect equipment

> Optical power meter

> NIR photometry



Absolute Maximum Ratings



Items

       SYMBOL

RATINGS

Unit
Operating temperature

Topr.



-20~+50

°C

Storage temperature

Tstg.



-55~+70

°C

Forward current

If 10

mA

Reverse voltage

Vr 1 V

Reverse Current

lr 1

mA

Soldering temperature(time)

Ts(10s)

260

°C

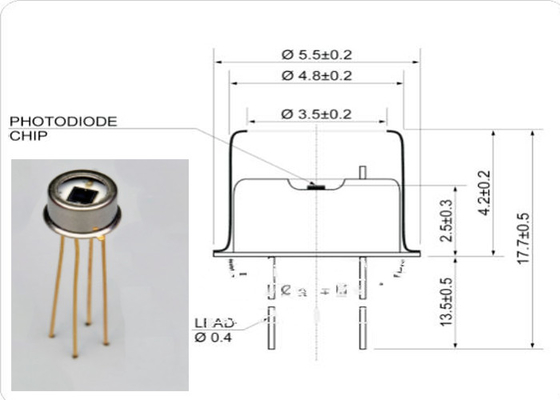

Hicorpwell HCPD3.6-A0.3 Two Color Si-Photodetector TO-5 Peaks 0.94 And 3.3 Micrometers 0





Order information





HCPD3.6-A0.3-XXXXX

X=TO46

X=SMFP

X=SMFA

X=SMSA

TO-46 Can with flat window cap

SMFiber coupling with FC-PC connector

SMFiber coupling with FC-APC connector

SMFiber coupling with SC-APC connector

X=5MMFA 50um MMFiber coupling with FC-APC

connector

X=6MMFA 62.5um MMFiber coupling with FC-APC

connector

X=JKFC

X=Other

TO-46 Can with FCreceptacle

By  customer's request

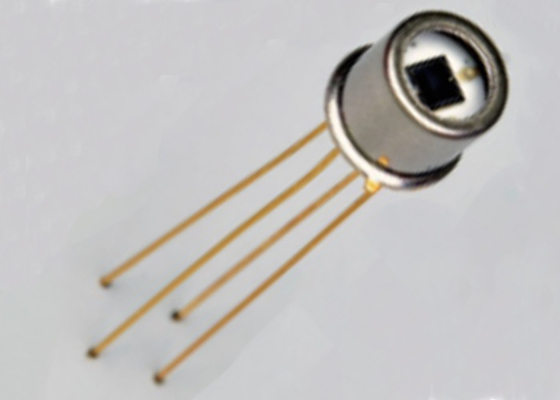

Hicorpwell HCPD3.6-A0.3 Two Color Si-Photodetector TO-5 Peaks 0.94 And 3.3 Micrometers 1



Hicorpwell HCPD3.6-A0.3 Two Color Si-Photodetector TO-5 Peaks 0.94 And 3.3 Micrometers 2

Hicorpwell HCPD3.6-A0.3 Two Color Si-Photodetector TO-5 Peaks 0.94 And 3.3 Micrometers 3

Hicorpwell HCPD3.6-A0.3 Two Color Si-Photodetector TO-5 Peaks 0.94 And 3.3 Micrometers 4
