GPON/EPON Network SC / APC To RF CATV Fiber Optic Receiver High isolation WDM Separate CATV and ONU
20 pcs
MOQ
negotiation
Price
GPON/EPON Network SC / APC To RF CATV Fiber Optic Receiver High isolation WDM Separate CATV and ONU
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: HCW -RF1550
Payment & Shipping Terms
Packaging Details: Packages Dimension 44*25*33cm (100 Pcs ), 100 Pcs Gross weight:8 kg
Payment Terms: Western Union, L/C, T/T
Supply Ability: 10000pcs Per Month
Specifications
Compatibility: Catv Optic Wdm Ftth Node
Name: FTTH Catv Optic Wdm Ftth Node
Wavelength: 1100~1600nm
Input Power: -10~0 DBm
Output Level: 64dBuV
RF Output Loss: ≥ 14dB@550~862MHz
Bandwidth: 40~862MHz
Working Temp: -25℃~+45℃
Output Port: 1
Size: 65*22*10mm
Product Description

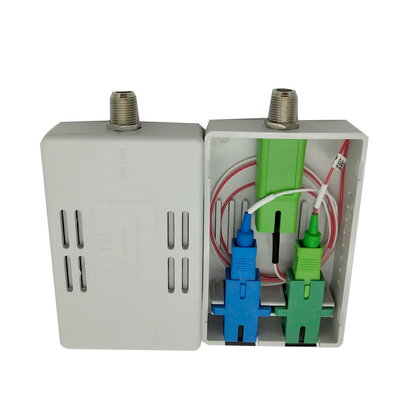

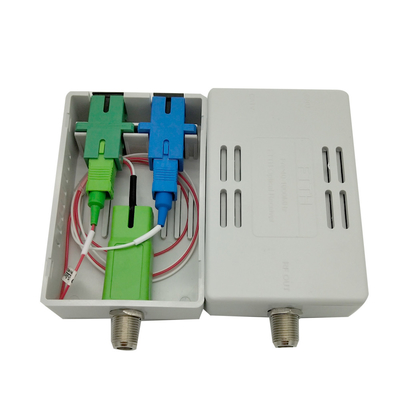

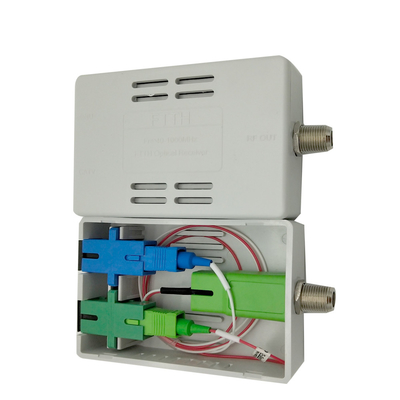

SC / APC To RF CATV Fiber Optic Receiver High isolation WDM Separate CATV and ONU





The product shell is small, the internal circuit is compact and reasonable;

excellent performance indicators, is the district or FTTH network of choice for products.

This device adopts technology of high isolation WDM in order to separate CATV and ONU signal.

Passive wdm optical receiver is our company specifically to deal with FTTH - fiber to the home network structure

and the introduction of another feature.







Function:


Input power:-8dBm~+2dBm; Output power:70dBμV(±10 dBμV)
Red light:<-9dBm; Green light:>-9dBm;Orange light on: >+2dBm
Frequency: 45~1000MHz/2600MHz (downstream) RF Output

Application:GPON/EPON network
MGC Attenuation adjustable:-20dB





Advantage:

1. Passive WDM Optical receiver no need any power supply to use

2. If input no less than -10dbm. This type will be can fully reduce cost.

3. This device adopts technology of high isolation WDM in order to separate CATV and ONU signal.

4. Maxim output level can reach 70dbuv

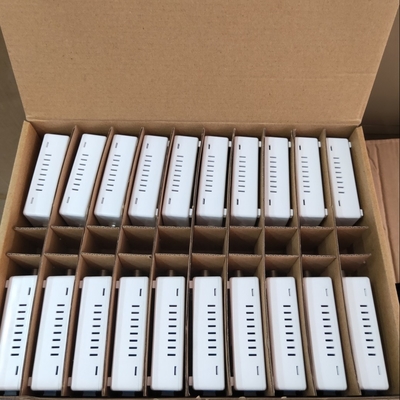

Packaging & Delivery

 package size:   44*25*33cm (100 Pcs )

 gross weight:    8 kg

 Package Type:
 1000 pcs/carton for Passive FTTH Optical Receiver Node



GPON/EPON Network SC / APC To RF CATV Fiber Optic Receiver High isolation WDM Separate CATV and ONU 0


 GPON/EPON Network SC / APC To RF CATV Fiber Optic Receiver High isolation WDM Separate CATV and ONU 1
