Customized Single Mode   SC  FC ST LC APC UPC  Fiber Optic OTDR Launch Cable Box
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Fiber Optic OTDR Launch Cable Box
Payment & Shipping Terms
Packaging Details: 1 pc/box Delivery Time 3-5 days based on quantity 238x141x66mm
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000pcs Per Month
Specifications
Size: 238x141x66mm
Name: Fiber Optic OTDR Launch Cable
Connectors: SC、FC、LC APC UPC
Temperature: -40~ +55°C
Material: SR Polypropylene
Fiber Type: 50/125 Multimode Or 9/125 Single Mode
Product Description

Customized Single Mode SC FC ST LC APC UPC Fiber Optic OTDR Launch Cable Box

An OTDR launch cable, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection. It is often available on a small spool or within a “launch box”, which is used to create the proper conditions for testing another similar optical fiber for faults.  This method avoids undesirable variations in loss and distance measurements. A launch fiber will help to overcome the blind spot or Dead Zone of an OTDR brought about by high launch power or faults near the launch end of the fiber.

A fiber ring serves as both a launch cable and a receive cable.OTDR Launch Cables are designed to be used
in conjunction with an OTDR to measure complete link loss of a fiber.
They are also known as pulse suppressor cables, launch cords, launch leads, receive cables or fiber rings.



Specifications



Attenuation @1310nm ≤0.35dB/km
@1550nm ≤0.21dB/km
Attenuation vs wavelength @1310nm 1285~1330nm ≤0.03dB/km
@1550nm 1525~1575nm ≤0.02dB/km


The OTDR Launch cables can be added with certain connectors,such as FC-FC,SC-SC,FC-SC ST-ST etc.


Please send us your requirements for the connectors you need.

Ordering Info:



Part No. Description
Fiber-BOX-SM05 SM G652D, 500M,
Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC,
FC/APC, LC/UPC, LC/APC optional
Fiber-BOX-SM10 SM G652D, 1KM,
Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional
Fiber-BOX-SM20 SM G652D, 2KM,
Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,
LC/UPC, LC/APC optional
Fiber-BOX-MM05 MM (62.5/125um or 50/125um), 500M,
Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-BOX-MM10 MM (62.5/125um or 50/125um), 1KM,
Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-BOX-MM20 MM (62.5/125um or 50/125um), 2KM,
Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-BOX-SM705 SM G657A, 500M,
Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,
LC/UPC, LC/APC optional
Fiber-BOX-SM710 SM G657A, 1KM,
Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional
Fiber-BOX-SM720 SM G657A, 2KM,
Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,
LC/UPC, LC/APC optional
Fiber-BOX-OM305 OM3, 500M,
Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-BOX-OM310 OM3, 1KM,
Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-BOX-OM320 OM3, 2KM,
Connector; FC/PC, SC/PC, ST/PC, LC/PC optional



Main Features :

  • Water and dust proof allowing the unit to be taken into almost any environment ;
  • the case can house up to 2000meters of fiber ;

  • small volume, light weight(1kg)easy to carry;

  • excellent sealing performance

  • we also supply the OTDR launch cable in roll type.

Standard Package


package : by cartons

The fiber ring box can work with any type of OTDR as below.

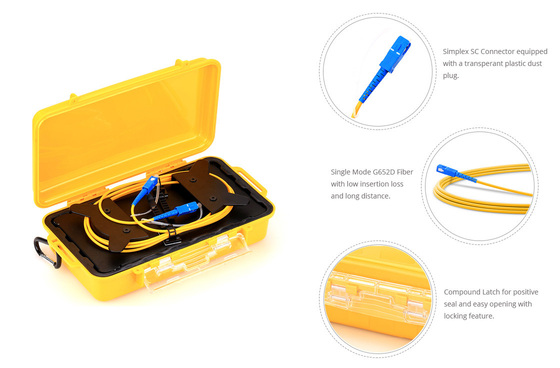

Customized Single Mode   SC  FC ST LC APC UPC  Fiber Optic OTDR Launch Cable Box 0Customized Single Mode   SC  FC ST LC APC UPC  Fiber Optic OTDR Launch Cable Box 1

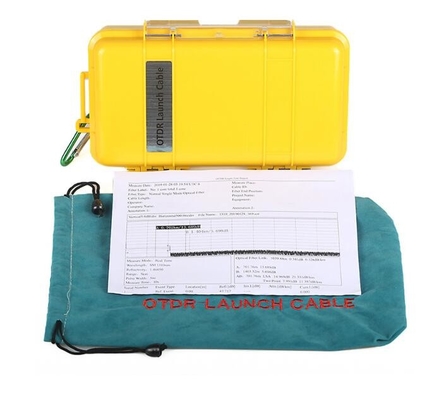

Customized Single Mode   SC  FC ST LC APC UPC  Fiber Optic OTDR Launch Cable Box 2

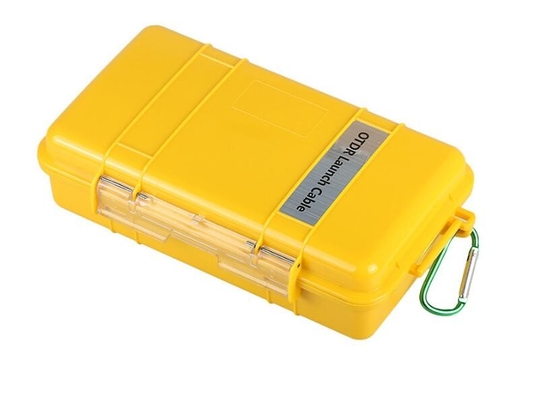

Customized Single Mode   SC  FC ST LC APC UPC  Fiber Optic OTDR Launch Cable Box 3
