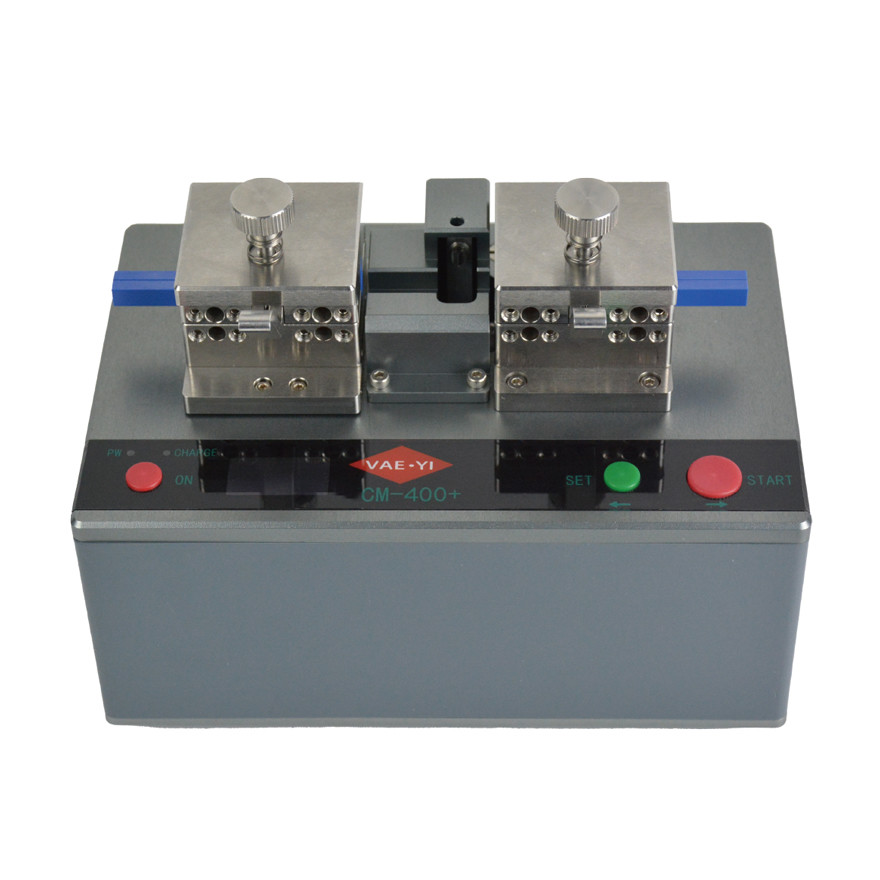

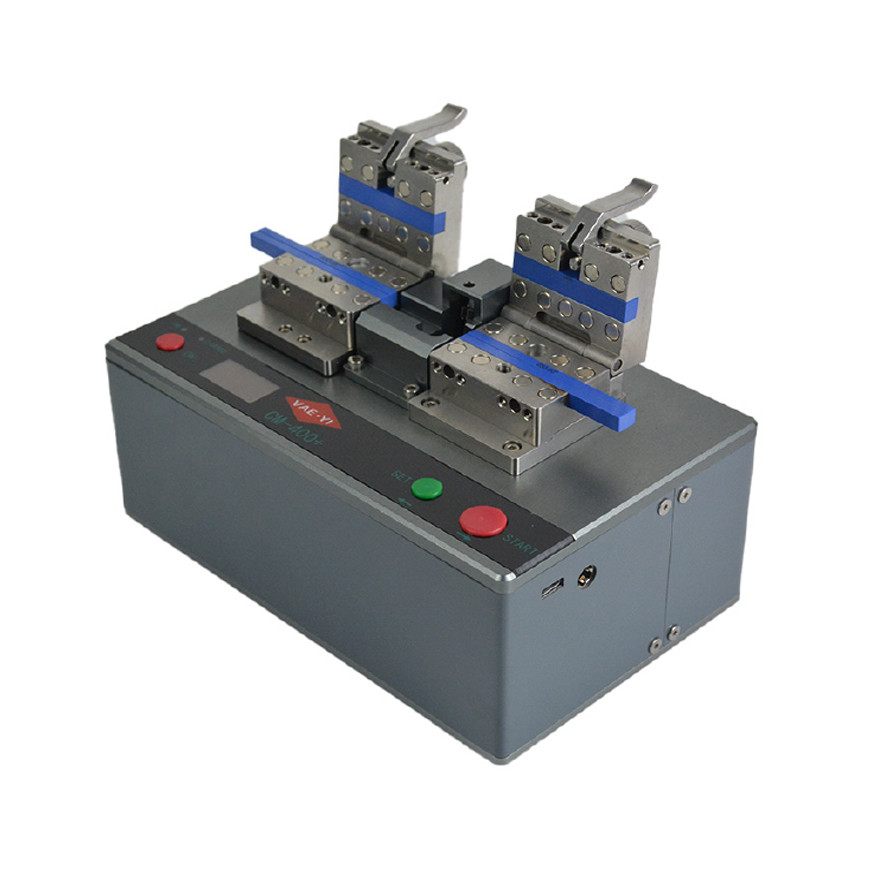

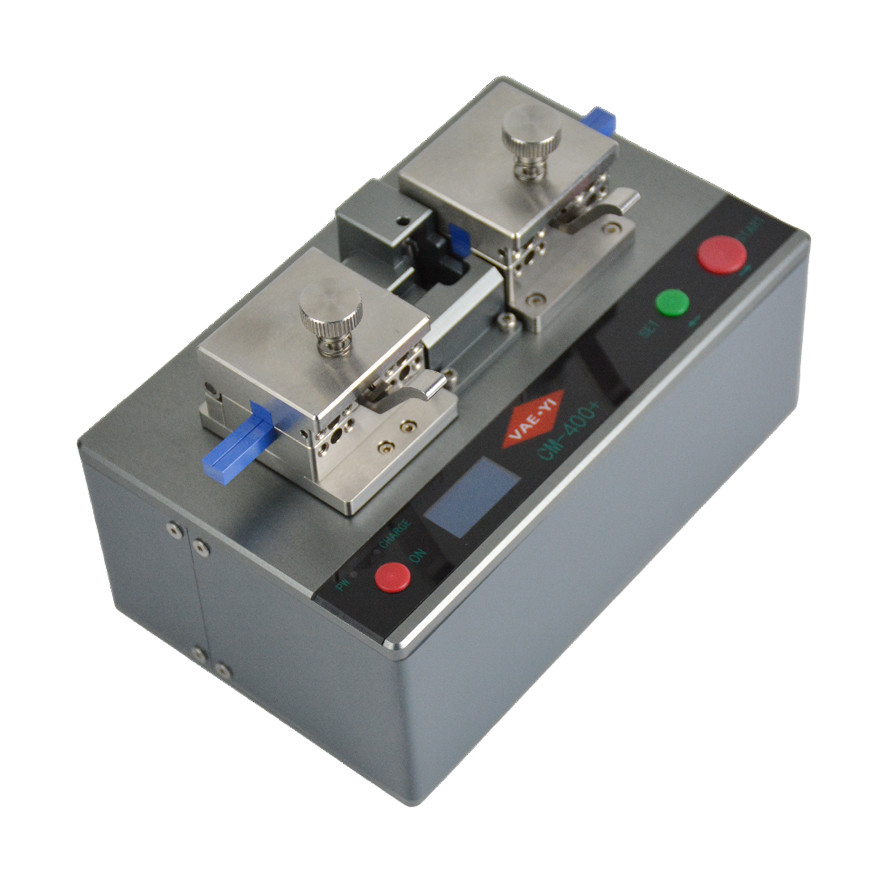

HCW-CM-400 is the first generation large diameter fiber cleave andend-face fabrica on tool developed by HCW-CM-400
is mainly suitable for the fabrica on of 80-400μm cladding diameter optical fiber end- face, with fast cuting speed and good end-face effect.
| Product Name | CM-400 Large diameter Fiber cleave |
|---|---|
| Item | CM-400 Large diameter Fiber cleave |
| Cleave mode | 200/300/400/500/600um |
| Coating Diameter | 160-3000μm |
| Cladding Diameter | 80-600μm |
| Battery Capacity | 3000mAh 33.3Wh |
> Automated cleave process for optimal cleave quality and repeatability
> Universal fiber clamping mechanism
> Designed for fiber cladding diameters from 125 to 550
> Low cleave angles with very flat end faces, typical <0.5°
> Can be powered with battery or external power supply
> Available platforms that support Fujikura, Fitel, 3SAE, or use without fiber holders
> Dimensions: 150(W) x 90(D) x 60(H) mm, 150(W) x 90(D) x 80(H) mm (incl. lever)
> Weight: 1.1 kg
> Power Source: Built in rechargeable Li-Ion battery or external power supply (100 - 240 V AC, 50/60 Hz)
> Supported fiber cladding: 125 to 550μm
> Supported fiber coating: 250 to 900μm
