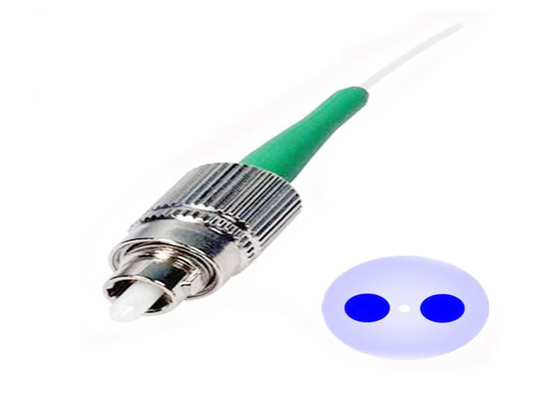

Highly birefringent (hi-bi) fiber 1310 nm SM FC/APC Polarization Maintaining Fiber Jumper Pigtail 0.9 Sleeve FC Fiber
Hicorpwell Laser's Panda PM fiber patch cord pigtail uses Japan's Fujikara Panda PM fiber.

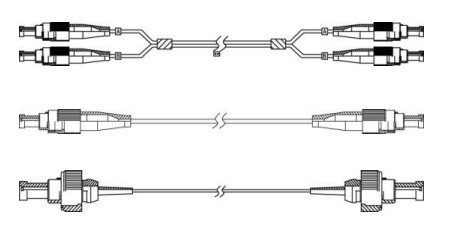

We can produce pigtail jumpers, the length can be customized according to customer requirements.
Can be made into 0.9 casing, 2.0 casing, 3.0 casing several styles.
[Features]
Accurate refractive index profile.
Good cross-section.
Good vertical and horizontal.
Excellent optical performance.
[Specification]
Product Name: PM FC Fiber
Fiber Type: Jumper / Pigtail (Choose)
Fiber Length: 1m / 2m (Choose)
3.ABSOLUTE MAXIMUM RATINGS (Tc=25°C)
| Parameter | Symbol | Ratings | Unit |
| LD Operating Current | If(LD) | Ith+20 | mA |
| LD Reverse Voltage | Vr(LD) | 2.0 | v |
| PD Operating Current | If(PD) | 2 | mA |
| PD Reverse Voltage | Vr(PD) | 15 | V |
| Operationg tempereture | Topr | -40~+85 | °C |
| Storage tempereture | Tstg | -40~+85 | °C |
| Welding tempereture | Tsld | 260/10 | °C/S |
4. (Tc=25oC) OPTICAL AND ELECTRICAL CHARACTERISTICS
| Parameter | Symbol | Min | Type | Max | Unit | Test Condition |
| Threshold Current | Ith | 5 | 15 | mA | CW | |
| Forward Voltage | Vop | 1.1 | 1.6 | V | CW,If=Iop | |
| Optical Output Power | Pf | 0.2 | 2.0 | mW | CW,If=Ith+20mA | |
| Center Wavelength | λc | 1547 | 1550 | 1553 | nm | CW,P0 = Pf |
| Rise/Fall Time(10~90)% | Tr/Tf | 0.4 | nS | If=Ith,Po=Pf(10-90)% | ||
| Monitor Current | Im | 0.1 | 1 | mA | CW,P0 = Pf | |
| Capacitance PD | CPD | 10 | 15 | PF | VRD=5V | |
| Dark Current PD | Id | 1 | nA | VRD=5V | ||
| Side Mode Suppression Ration | SMSR | 30 | 35 | dB | CW,Po=5mW |
According to customer requirements out of fiber-power design; side-mode suppression ratio only applies to DFB Laser Module .
5. LD PinASSIGNMENT

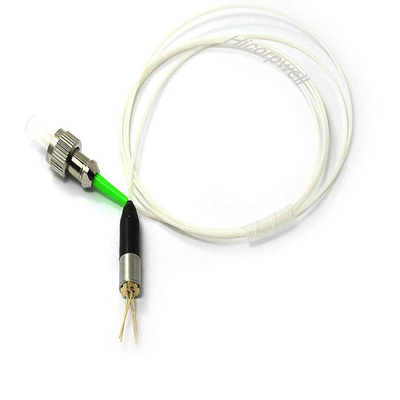

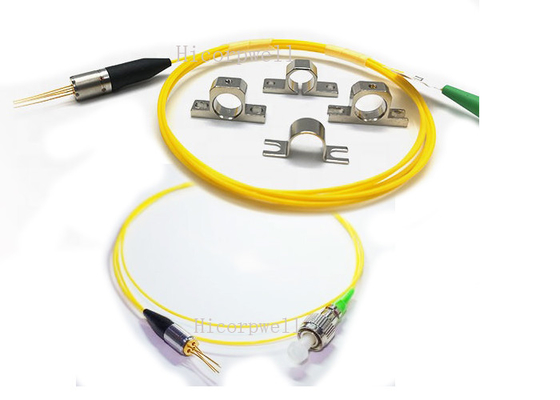

6.Purchase information BLLD-XXX-XXXX-XXX Coaxial Package laser diode
| —X | X | X | —X | X | X | X | —X | X | X | |
| Package type | Type conncetor |
Package series |
Type LD | Wavelength | power |
PD Conn ector pin |
Date rate | isolator | A&V ROHS | |
| Fiber | Rec | |||||||||
|
P:fiber
R:receptacle |
F:FC/UPC S:SC/UPC T:ST/PC FA:FC/APC SA:SC/APC N:NO |
A:FC-1 B:FC-2 C:FC-3 D:SC E:ST |
1:Type 1 2:Type 2 3:Type 3 4:Type 4 5:Type 5 no:R |
D:DFB LD
F:FP LD |
31:1310nm 55:1550nm 51:1510nm 53:1530nm 57:1570nm |
05:0.5mW 10:1.0mW 20:2.0mW 30:3.0mW 40:4.0mW |
A:type A B:type B C:type C |
1:1.25Gb/s 2:2.5Gb/s |
G:isolator
NO:nothing |
R:pass ROHS
NO:nothing |
The part number is PFA2-F3110A-1GR,It means laset diode is FP wavelength of LD is 1310nm,pin-out is type A ,Power is 1mW .
