Name: D80 SMA QBH QD HCW400/440/590/880XT22WT 1064nm Bare Fiber Core 400um NA 0.22 980nm Wavelength
Brand: Shenzhen Hicorpwell Technology Co., Ltd
SKU: 100 um/200um/300um/400um Fibers
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Type: 100 Um/200um/300um/400um Fibers

Paintcoat Color: Aqua,yellow ,black Or Others

Core (um): 50um-1000um

UVVIS Fibers: Ultraviolet And Visible Wavelengths

NA: 0.22±0.02 (0.1to 0.28 On Request);

Applications: Ultraviolet Spectrum Analysis, Laser Transmission, Health Detection, Nuclear Energy And Semiconductor Etc;

Coating Material: Acrylate & Polymide

Highlight:

Bare optical fiber 400um core

1064nm wavelength optical fiber

980nm NA 0.22 fiber

Basic Infomation

Place of Origin: China

Brand Name: HICORPWELL

Certification: IEC 60794-2-10/11

Model Number: 100 um/200um/300um/400um Fibers

Payment & Shipping Terms

Packaging Details: Standard length: 5km/reel or 10km per reel (as per your requirements)

Payment Terms: Western Union, L/C, T/T

Supply Ability: 1000KM Per Month

Gallery

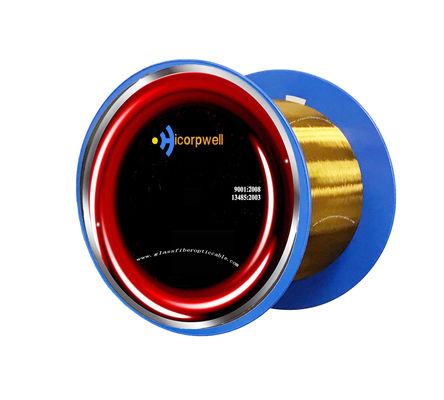

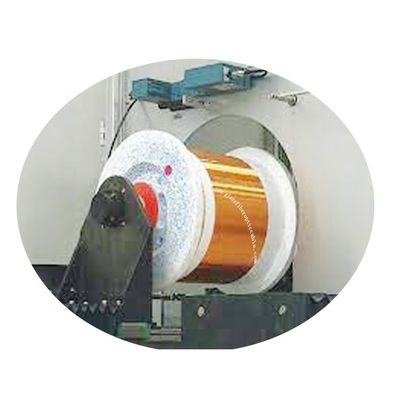

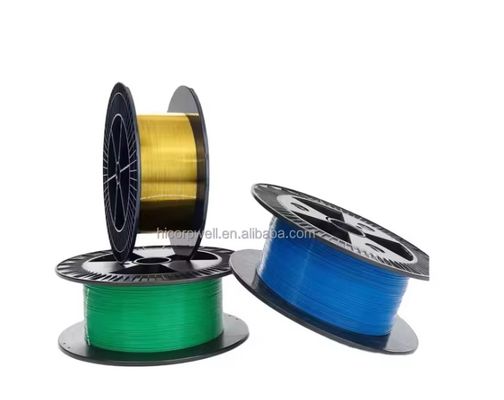

D80 SMA QBH QD HCW400/440/590/880XT22WT 1064nm Bare Fiber Core 400um NA 0.22 980nm Wavelength

Product Description

D80 SMA QBH QD HCW400/440/590/880XT22WT 1064nm Bare Fiber Core 400um NA 0.22 980nm Wavelength

Technical Specifications

Wavelength / Spectral Range: UV: 200-1200nm, WF: 300-2400nm
Numerical Aperture (NA): 0.12 ± 0.02 | 0.22 ± 0.02 | 0.28 ± 0.02 or customized
Operating Temperature: -190°C to +350°C
Core Diameter: Available from 25 to 2000μm
Standard Core / Cladding Ratios: 1:1.04 | 1:1.06 | 1:1.1 | 1:1.15 | 1:1.2 | 1:1.25 | 1:1.4 or customized
OH Content: UV: high (>700ppm), WF: low (<1ppm)
Fibers with OH contents <0.25ppm available upon request
Standard Proof Test: 100kpsi (nylon, ETFE, acrylate jacket) | 70kpsi (polyimide jacket)
Minimum Bending Radius: 50 × cladding diameter (short-term mechanical stress), 150 × core diameter (during use with high laser power)

Key Features

Fine transmission performance at ultraviolet waveband, anti γ-ray at 800nm
Applied in ultraviolet spectrum analysis, laser transmission, health detection, nuclear energy and semiconductor applications
NA = 0.22 ± 0.02 (0.1 to 0.28 available on request)
CCDR: 1:1.04, 1:1.1, 1:1.2 (1:1.06, 1:1.15, 1:1.25, 1:1.4 available on request)

Applications

First choice for applications including spectroscopy, medical diagnostics, medical technology, laser delivery systems and many more.

Standard Dimensions

Core [μm] (±2%)	50	100	105	115	192	200	300	365	400	500	600	800	1000
Cladding [μm] (±2%)	125	110	125	125	200	220	330	400	440	550	660	880	1100

Coating Specifications - Acrylate

Coating Material: Acrylate, Temperature Range: -40°C to 85°C

Coating [μm] (±3%)	245	245	245	245	245	350	450	550	550	770	840	1100	1300

Coating Specifications - Polyimide

Coating Material: Polyimide, Temperature Range: -65°C to 300°C

Coating [μm] (±3%)	145	125	145	145	145	245	355	425	480	575	710	-	-
