Home /Products/Fiber Testing Tools/Fiber Testing Tools Providing Smooth Burr Free Grinding and Polishing for Optical Fiber Connectors FC SC ST LC MU MT and MPO Types

Fiber Testing Tools Providing Smooth Burr Free Grinding and Polishing for Optical Fiber Connectors FC SC ST LC MU MT and MPO Types

10 pcs
MOQ
negotiation
Price
Fiber Testing Tools Providing Smooth Burr Free Grinding and Polishing for Optical Fiber Connectors FC SC ST LC MU MT and MPO Types
Features Gallery Product Description Request A Quote
Features
Specifications

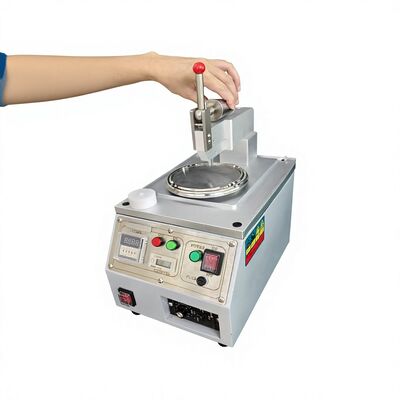

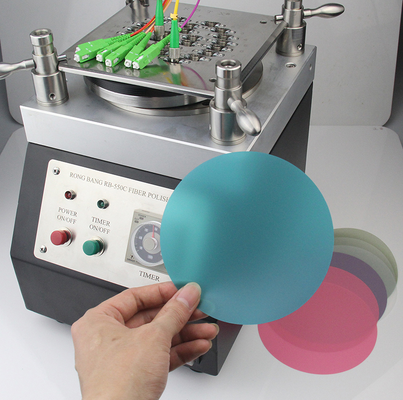

Name: Fiber Optic Polishing Machine
Connectors: SC FC ST LC MPO MTP MTRJ
Type: Square Pressure Polishing Machine
60RPM: Grinding Plate Is Less Than 0.015mm
Usage: Polishing
Power Supply: 220V(AC), 50Hz
Cores: 18 20 24
Timer: Omron Rotation, Key Digital Timer, Any Timing
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Fiber optic polishing machine
Payment & Shipping Terms
Packaging Details: One piece in a carton
Delivery Time: 15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100pcs Per Week
Product Description

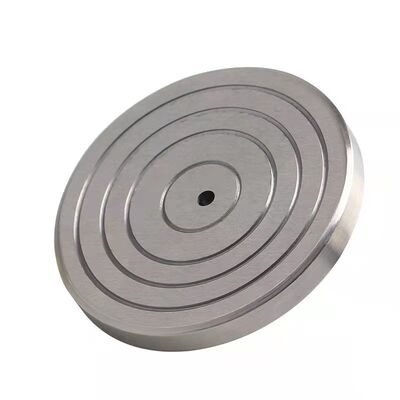

Square Pressure Polishing Machine Polishing Disc Sanding Grinding Disk Stainless Steel FC/SC/ST/LC Disk



Features



* Fiber ferrules for grinding 2.5mm and 1.25mm PC end faces, such as FC, SC, ST/LC, etc.

* Made of high quality finished stainless steel, hard and wearable;

*The inner and outer round edges are designed for easy manual operation;

*The processing size is exquisite, smooth and burr-free, ensuring the grinding effect;

* Light and small, easy to carry;


Description



Under the condition that replacement or welding is not allowed, the end face of the tail fiber of damaged ( including scratches and cracks )



optical devices with various functions ( such as lasers, transceivers, modulators, optical switches, amplifiers, compensators, etc. )

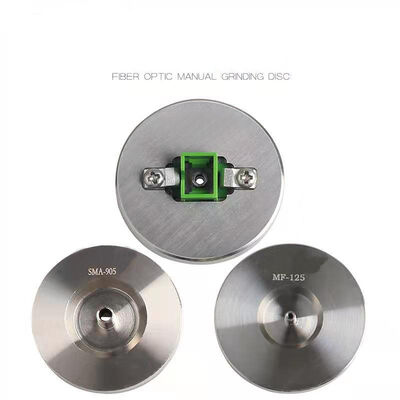

Fiber optic manual grinding disc Manual grinding disc for repairing optical fiber end face is a fast,



simple and efficient tool for repairing end face on site.





Specifications



1. Timer: Omron rotation, key digital timer, any timing


2. Suitable: φ2.5mm PC,APC:FC,SC,ST；φ1.25mmPC,APC:LC,MU,MT,mini-MT,MT-RJ；



PC,APC:MPO,MTP,MPX；Pig-tail；Fiber-arry；PLC




3  Cores:18 20 24

4.  Standard fiber optic connectors: FC/UPC,SC/UPC,ST/UPC,LC/UPC,MU/UPC,



     FC/APC,SC/APC,MT-RJ,E2000 etc.

5.  Connector insertion loss: ≤0.2dB(SM),≤0.15dB(MM)

6.  Return loss: ≥50dB(PC),≥60dB(APC)

7.  Radius of curvature: PC:10～25mm(φ2.5mm),7～25mm(φ1.25mm),APC:5～12mm

8.  Repeat loss: ≤0.1dB；Swap loss: ≤0.2dB



Fiber Testing Tools Providing Smooth Burr Free Grinding and Polishing for Optical Fiber Connectors FC SC ST LC MU MT and MPO Types



         Fiber Testing Tools Providing Smooth Burr Free Grinding and Polishing for Optical Fiber Connectors FC SC ST LC MU MT and MPO TypesFiber Testing Tools Providing Smooth Burr Free Grinding and Polishing for Optical Fiber Connectors FC SC ST LC MU MT and MPO Types



Fiber Testing Tools Providing Smooth Burr Free Grinding and Polishing for Optical Fiber Connectors FC SC ST LC MU MT and MPO Types       Fiber Testing Tools Providing Smooth Burr Free Grinding and Polishing for Optical Fiber Connectors FC SC ST LC MU MT and MPO Types
