Black Color Hand Fiber Optic Reel , Fiber Cable Reel 500 M To 1000m Length

China Black Color Hand Fiber Optic Reel , Fiber Cable Reel 500 M To 1000m Length supplier
Black Color Hand Fiber Optic Reel , Fiber Cable Reel 500 M To 1000m Length supplier Black Color Hand Fiber Optic Reel , Fiber Cable Reel 500 M To 1000m Length supplier Black Color Hand Fiber Optic Reel , Fiber Cable Reel 500 M To 1000m Length supplier Black Color Hand Fiber Optic Reel , Fiber Cable Reel 500 M To 1000m Length supplier

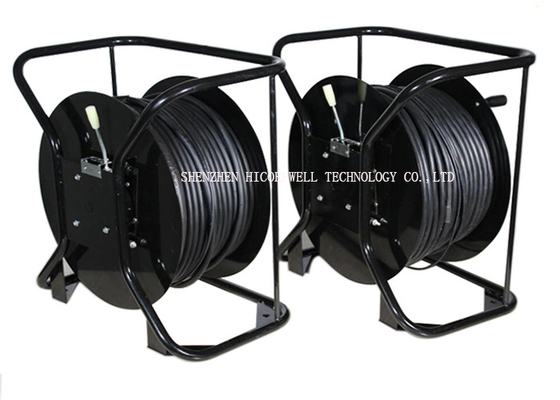

Large Image :  Black Color Hand Fiber Optic Reel , Fiber Cable Reel 500 M To 1000m Length

Product Details:

Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Hand Fiber Optic Cable Reel

Payment & Shipping Terms:

Minimum Order Quantity: 1 KM
Price: negotiation
Packaging Details: 5000 Kilometer/Kilometers per Week Armored Tactical FO Military SM G657A2 Cable
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000 Kilometer/Kilometers per Week
Contact Now
Detailed Product Description
Cable Type: Fiber Optic Cable Reel Connectors: Customized,LC,FC,SC Connectors
Paintcoat Color: Black Or Orange Or ,Yellow ,others Cable Purpose: Telecome Application
Length: 500 M To 1000m Application: Military Tanks And Outside Broadcast Vehicles



Black Color Hand Fiber Optic Reel , Fiber Cable Reel 500 M To 1000m Length



A cable reel is a round, drum-shaped object such as a spool used to carry various types of cables.
Cable reel which can also be termed as drums have been used for many years to transport electric cables, fiber optic cables and wire products.


Portable field deployable tactical fber optic cable reel has been optimised for using in harsh environments where mobility and rapid deployment of the cable are very essential.

This assembly is specifically designed for field deployable applications. Particularly, it can broadcast the communication for film crews to connect HDTV camera equipments with central broadcasting trucks about events like music concerts and sporting events.

This deployable assembly includes a marcaddy drum, breakout modules with ruggedised tails at each end, choice of connectors, tactical cable and a high durability protective conduit IP rated pulling sock.



Optical fiber reel (also known as mobile optical cable) is mainly used for winding optical fiber, signal cable, power cable and other cables. The spool is made of steel pipe, imported engineering plastics are used as the wheel, light and durable; rods and wheels. Surface spray treatment. Beautiful and atmospheric.



Manual retractable wire: Rotate the winding handle clockwise or counterclockwise to complete the task of receiving and releasing the wire.



Retractable cable reel, handle cable wire :



I. Cable reel: Portable optical cable disk (also called handle wire spool, handle wire winch, mini portable cable laying ), which is mainly used in the television relay car, wound fiber, signal line, power cable and other cables; Wheel plate light and durable; Surface spray treatment, easy to use.



II. System construction



The product mainly consists of winding wheel, wire frame, winding handle, handle, and bearing seat.



III. Functional characteristics



1. Manual recharging line: the function of winding and winding by clockwise or counterclockwise winding handle.



2. The rotating shaft is equipped with bearing sleeve, which can easily be used to realize the collection line of the handle.



3. Easy to move: with handle, easy to move.



4. It is equipped with a preferable handle, and the handle strength is durable.



5. Equipped with brake device, the brake can be jammed at any time.



6. Both side with bearing support line, which can be used for long term and never deformation.



7. Main technical indicators



7-1:Line size: 230mm*230mm, 230mm*300mm,300mm*400mm



7-2:Such as 300mm*400mm frame: Wire diameter: 7.0m*400M,5.0mm*700M,3.0mm*1500M




The Application of Fiber Optic Patch Cable Reel

we can supply several deployable fiber cable reels, which can be used in the following situations - field

communication and CATV, quick deployment, quick distributing and retrieving of military field

communication system, cable deployment of radar, aviation and naval vessel, complicated circumstances

of oil field, mining and harbors, TV re-broadcasting and communication, emergency repairing and

supporting LAN cabling.




FO Cable Specifications   Performances





Cable
Count
ITEM CABLE OD.
mm(a)
CABLE
WEIGHT
(kg)
MAXIMUM TENSILE BEND RADIUS* L.P.
N/100mm
S.T. L.T. Dyn. Sta.
4F 4.5MM Φ4.5±0.2 26.5 800 400 70 35 3000
6F 4.5MM Φ4.5±0.2 38.5 1000 500 100 50 3000
8F 5.0MM Φ5.0±0.2 33.0 1000 501 100 50 3000
10F 5.0MM Φ5.0±0.25 36.0 1000 502 120 60 3000
12F 5.5MM Φ5.5±0.25 39.0 1200 600 150 75 3000
24F 7.0MM Φ7.0±0.3 54.0 1500 750 170 85 3000



Black Color Hand Fiber Optic Reel , Fiber Cable Reel 500 M To 1000m Length
