SC APC Sinplex Fiber Optic Adapter , Flexible IEC 60794 Fiber Fast Connector
200 pcs
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: SC APC Fiber Optic Adapter
High Light:

fiber cable connectors

,

fiber fast connector

Payment & Shipping Terms
Packaging Details: Package size: 46*33*23cm Gross weight: 18 KG PE bag and small box and carton.
Payment Terms: Western Union, L/C, T/T
Supply Ability: 50000pcs Per Week
Specifications
Name: SC APC Sinplex Fiber Optic Adaptor
Color: Green Or Blue
Fiber Type: Single Mode/ Multimode
End Face Type: PC/UPC/APC
Item: SC Fiber Optic Adapter
Durability: ≤0.2dB After 1000cycles
Product Description

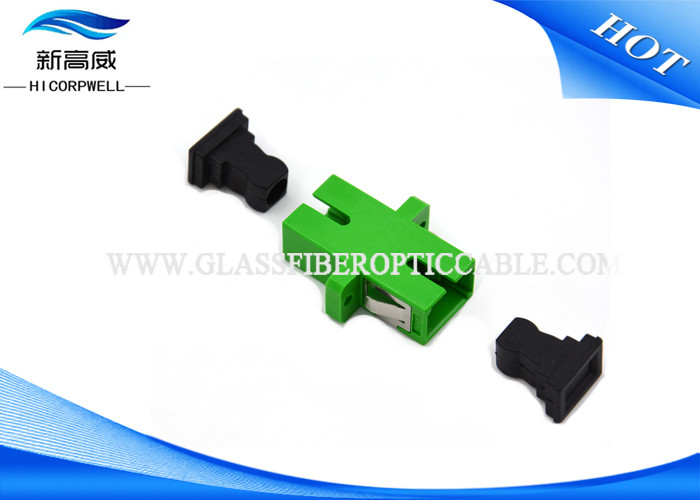

 SC APC Sinplex Fiber Optic Adaptor  Fiber Optic Components

A ceramic sleeve is supplied to ensure a high precision alignment. The housing is available in different

colors with options for flange or flangeless body, metal clips or inbuilt clips.

A protective cap is provided at each end of the adaptor with the same color as the adaptor.

Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs.

The housing of the Adaptors of the last generation has a reference key for the right position coupling and

zirconia or phosphorus bronze split sleeve for high alignment.

we could supply standard types of Adaptors, such as FC, SC, LC, ST, MU, MTRJ, MPO/MTP etc.

Hybrid is also available.

Our adaptors design, material and manufacturing process assure long life and high repeatability of

optical performances even for different brand connectors mating.



Precisely external size make it easier to install, flexible and convenient use.





Item Insertion Loss Mechanical resistance Repeatability Operating Temperature
SM/PC ≤0.2dB 200-600g 0.2dB(1000times) -40°C~+80°C
SM/APC ≤0.2dB 200-600g 0.2dB(1000times) -40°C~+80°C
MM/PC ≤0.3dB 200-600g 0.3dB(1000times) -40°C~+80°C





Parameter



Unit SC
SM MM
PC UPC APC PC
insertion loss dB ≤0.2 ≤0.1 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30
Interchangeability dB ≤0.2

Repeatability



dB ≤0.2
Mechanical endurance Time >1000

Operating temperature



°C -40~75
Storage temperature °C -45~85
