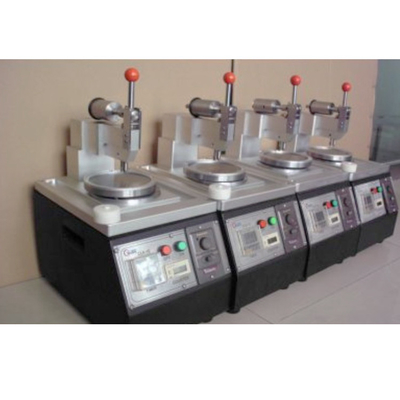

Fiber optic Polishing Machines Grinding Machine For Fiber Optic Patch Cord Pigtail Production Line
1pcs
MOQ
negotiation
Price
Fiber optic Polishing Machines Grinding Machine For Fiber Optic Patch Cord Pigtail Production Line
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: FO Connector Polishing Equipment with Good Repeatability
High Light:

fiber optic tools

,

fiber optic cable tester

Payment & Shipping Terms
Packaging Details: One piece in a carton
Delivery Time: 15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100pcs Per Week
Specifications
Name: FO Connector Polishing Equipment
Connectors: SC FC ST LC MPO MTP MTRJ
Type: Square Pressure Polishing Machine
60RPM: Grinding Plate Is Less Than 0.015mm
Usage: Polishing
Power Supply: 220V(AC), 50Hz
Cores: 18 20 24
Timer: Omron Rotation, Key Digital Timer, Any Timing
Product Description



Fiber optic Polishing Machines Grinding Machine For Fiber Optic Patch Cord Pigtail Production Line





1.  Machinable ceramics (including extremely high hardness ZrO2), quartz, glass, metal, plastic

and other materials



2.  Independent rotation and revolving compound movement, to ensure uniformity and consistency of grinding quality. Revolution can be stepless speed, speed range of 0-60rpm, to  meet the requirements of different grinding process



3.  Four corner pressure design, and can be set according to processing requirements grinding time



4.  The plane of the grinding plate is less than 0.015mm when the revolution speed is 60rpm



5.  Automatically record the number of grinding, can guide the operator according to the number of



     grinding paper to adjust the use of grinding time



6.  Pressurization, unloading and replacement of fixture grinding sheet convenient and quick



7.  The use of polymer waterproof material to ensure that electrical and chassis sealed waterproof.





Specifications

1.Machine Size
240mm*240mm*260mm
2.O.D. of Rotation Plate
127 mm(5 inch)
3.Time Settings
99 min 99 sec (Max)
4.Speed for Rotation Plate
90 rpm
5.Height of Plate Jumpiness
<10 um
6.Pressure Configuration
21 ~ 36 N/cm2
7.Work Temperature
10℃~40℃
8.Relative Humidity
15%~85%
9.Noice
unloading Less 50 dB
10.Libration
Working Status 0.25g 5~100Hz 10min
11.Stopping Status
0.50g 5~100Hz 10min
12.Power Input
220~230 VAC 50Hz/60Hz
13.Electric Power
40W
14.Net Weight
28kg
15.Materials
stainless steel
Fiber optic Polishing Machines Grinding Machine For Fiber Optic Patch Cord Pigtail Production Line 0Fiber optic Polishing Machines Grinding Machine For Fiber Optic Patch Cord Pigtail Production Line 1
