High Success Rate FTTH SC UPC Fast Connector 0.2 DB Insert Loss Easy Install
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Certification: IEC 60794-2-10/11
Model Number: SC UPC Fast Connector
High Light:

fiber cable connectors


fiber quick connector

Payment & Shipping Terms
Packaging Details: Each fact connector into a plastic bag for SC UPC Fast assembly
Delivery Time: 15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 50000pcs Per Week
Type: SC UPC Fast Connector
Insertion Loss: Less Than 0.2 (max 0.4)
Paintcoat Color: Blue Or Green
Return Loss: ≥40dB
Drop Cable: 2.0*3.0mm
Tensile Strength: >50N
Product Description

FTTH 0.2dB Insert Loss SC UPC Fast Connector Fiber Optic Components


Field installation connector is a new kind of connector that could be used in FTTH project scene.


They don’t need to polishing, no epoxy. They could be installed in the field and make connection


less than two minutes. Of course, It don’t need fused the fiber.


Just some little tools enough, so it could save time and cost.

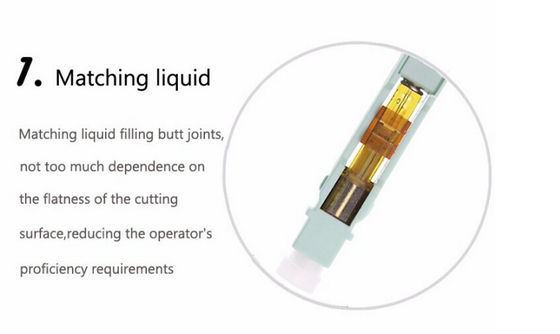

We could offer embedded type fast connector. This connector has a bare fiber insert in the ferrule.


The front end face was polished in advance. The fiber mating point is in a precision V groove.





- Polishing way is UPC or APC

- Connector type is SC/FC/LC and could match with normal SC/FC/LC adapter

- Related cable is Bow-type drop cable 2.0*3.1 or normal 3.0mm.

- Good performance and high success rate

- Easiness in installation

- Special tool is simple and convenient to use





Items Test condition Value
Optical performance Insertion Loss(1310nm&1550nm) <0.2dB(typical)/ 0.5dB(Max)
Return Loss(1310nm&1550nm) UPC>40dB,APC>50dB

Environmental Performance

(Max. Insertion Loss change)

Temperature Cycle -20°C ~+70°C (96hours) <0.2dB

Mechanical Performance

(Max. Insertion Loss change)

Online tension 20N- 100N <0.2dB
Impaction 3 axis/3times 4m high <0.2dB
Repeated operation times 5



High Success Rate FTTH SC UPC Fast Connector 0.2 DB Insert Loss Easy Install 0High Success Rate FTTH SC UPC Fast Connector 0.2 DB Insert Loss Easy Install 1
