Optical Fiber Cleaver Fiber Testing Tools For 250 To 900 Micron In Black
1 pcs
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Fiber Optical Cleaver
High Light:

fiber optic test equipment

,

fiber optic tools

Payment & Shipping Terms
Packaging Details: Dimensions (W x D x H): 77mm x 84mm x 42mm (2.7" x 3.2" x 1.6")
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000pcs Per Week
Specifications
Packages Size: 77W X 84D X 42H (mm)
Cladding Diameter: 0.125mm
Weight: 430g Without Scrap Collector;
Typical Cleave Anglector: 0.5 Degrees
Typical Blade Life: 48,000 Fiber Cleaves
Coating Diameter: 250 To 900 Micron Fiber
Product Description

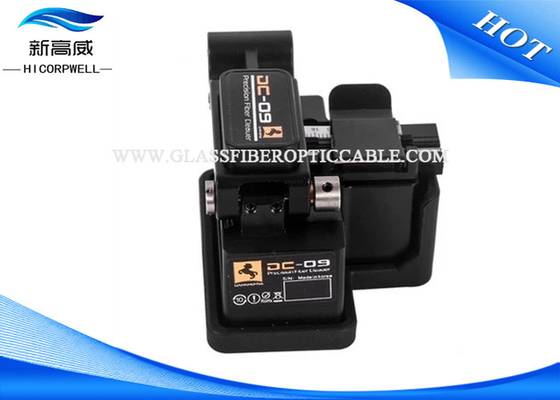

Optical Fiber Cleaver Fiber Testing Tools For 250 To 900 Micron In Black





Features:



• Model No: DC 09


• Applications: Single fibers: 250um to 900um coating, 125um cladding


• Fiber Handling System: AD-30A Adapter Plate


• Cleave Length: (900um fiber) 10mm to 20mm, (250um fiber) 6mm to 20mm


• Dimensions (W x D x H): 77mm x 84mm x 42mm (2.7" x 3.2" x 1.6")


• Weight: 240g


• Blade lifetime: 48,000 fiber cleaves (4000 12-fiber cleaves)


• Cleave angle capability: typically < 0.5°





This fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers.



It is a simple operation for the user to remove or install the single fiber adapter and alternate between



mass and single fiber cleaving.

• Provides approximately 36,000 /48000times optional.

• Compact body& light weight

• High Precision Cleaves

• 250um Coated or 900um Buffer fiber

• Singlemode





Weight 240g
Coating Diameter 0.25mm - 0.9mm (Single)
Cladding Diameter 0.125mm
Cleave Length

5mm - 20mm (Single)

Typical Cleave Angle 0.5 Degrees
Typical Blade Life 36,000 /48000 times  Fiber Cleaves
Number of Steps for Cleave 2
Blade Adjustments Rotational & Height
Automatic Scrap Collection Optional



                                         Optical Fiber Cleaver Fiber Testing Tools For 250 To 900 Micron In Black 0
