Features
Description
Under the condition that replacement or welding is not allowed, the end face of the tail fiber of damaged ( including scratches and cracks )
optical devices with various functions ( such as lasers, transceivers, modulators, optical switches, amplifiers, compensators, etc. )
Fiber optic manual grinding disc Manual grinding disc for repairing optical fiber end face is a fast,
simple and efficient tool for repairing end face on site.
1. Timer: Omron rotation, key digital timer, any timing

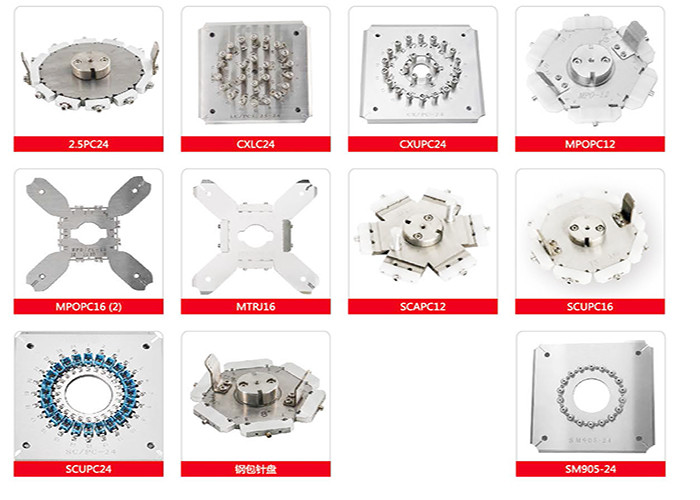

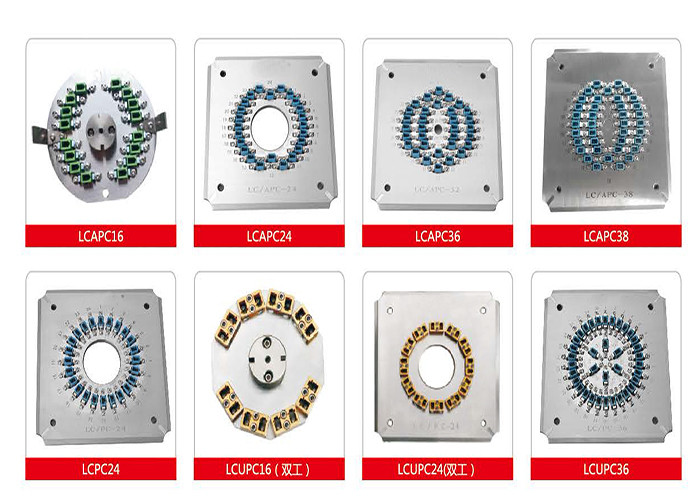

2. Suitable: φ2.5mm PC,APC:FC,SC,ST；φ1.25mmPC,APC:LC,MU,MT,mini-MT,MT-RJ；
PC,APC:MPO,MTP,MPX；Pig-tail；Fiber-arry；PLC
3 Cores:18 20 24
4. Standard fiber optic connectors: FC/UPC,SC/UPC,ST/UPC,LC/UPC,MU/UPC,
FC/APC,SC/APC,MT-RJ,E2000 etc.
5. Connector insertion loss: ≤0.2dB(SM),≤0.15dB(MM)
6. Return loss: ≥50dB(PC),≥60dB(APC)
7. Radius of curvature: PC:10～25mm(φ2.5mm),7～25mm(φ1.25mm),APC:5～12mm
8. Repeat loss: ≤0.1dB；Swap loss: ≤0.2dB
