Telecom Military Retractable Tactical Optical Cable Outdoor Portable Media Usage

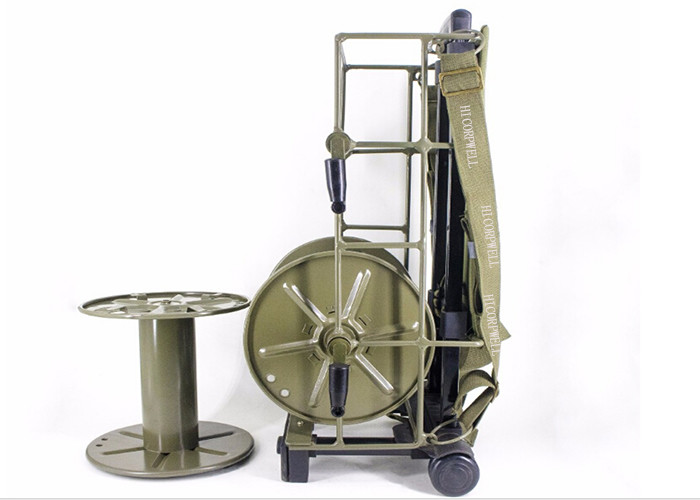

The mobile pre-terminated armoured cable reel is developed for temporary field deployment where fiber
connections are required.
Using flexible steel armour to protect optical fiber, making sure minimum damage.

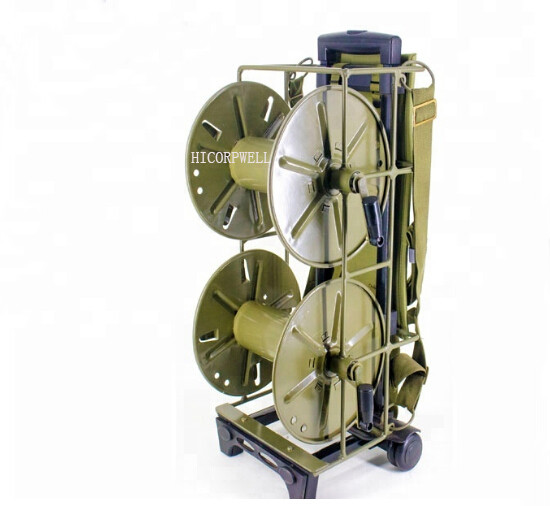

This reel comes in a portable cable reel for ease of transportation .
All armoured cables are flexible and are able to withstand multiple usages without kinks.
Prevents damage from improper twisting, high resistance to crush and high tensile strength
Mechanical protection against pest and rodent
One end of the cable is fixed to the reel while the other end is coiled freely for patching to the equipments.
Acturally , these will be customized base on user’s requirement so there are options of various cable and
connector type with any cable length which then will determine the size of the reel.
Main Features
Rotating reel for deploying and retracting of cable and comes with braking system
Various connectors are available such as FC/SC/ST/MU/LC/PDLC/ MPO..
Various cable are available, such CPRI cale, TPU Cable, Tactical cable,multicore indoor/outdoor
cable..etc.
Parameters :
| Item | Single mode | Multi mode | |
| Splicing Type | UPC | APC | PC |
| Insertion Loss | <or=0.3dB | <or=0.2dB | <or=0.3dB |
| Reture Loss | >or=45dB | >or=55dB | >or=35dB |
| Repeatability | <or=0.1dB | <or=0.1dB | <or=0.1dB |
| Temperature | -40/+80 | ||
Specifications&Performances
| Cable Count |
ITEM | CABLE OD.mm(a) |
S.S.T. OD.mm(b) |
T.B.O.F. OD.mm(C) |
| 4F | 4.5MM | Φ4.5±0.2 | Φ2.4±0.02 | Φ0.5 |
| 6F | 4.5MM | Φ4.5±0.2 | Φ2.6±0.03 | Φ0.5 |
| 8F | 5.0MM | Φ5.0±0.2 | Φ2.8±0.05 | Φ0.5 |
| 10F | 5.0MM | Φ5.0±0.25 | Φ3.0±0.05 | Φ0.5 |
| 12F | 5.5MM | Φ5.5±0.25 | Φ3.2±0.05 | Φ0.5 |
| 24F | 7.0MM | Φ7.0±0.3 | Φ4.3±0.05 | Φ0.5 |
| Cable Count |
ITEM | CABLE OD. mm(a) |
CABLE WEIGHT (kg) |
MAXIMUM TENSILE | BEND RADIUS* | L.P. N/100mm |
||
| S.T. | L.T. | Dyn. | Sta. | |||||
| 4F | 4.5MM | Φ4.5±0.2 | 26.5 | 800 | 400 | 70 | 35 | 3000 |
| 6F | 4.5MM | Φ4.5±0.2 | 38.5 | 1000 | 500 | 100 | 50 | 3000 |
| 8F | 5.0MM | Φ5.0±0.2 | 33.0 | 1000 | 501 | 100 | 50 | 3000 |
| 10F | 5.0MM | Φ5.0±0.25 | 36.0 | 1000 | 502 | 120 | 60 | 3000 |
| 12F | 5.5MM | Φ5.5±0.25 | 39.0 | 1200 | 600 | 150 | 75 | 3000 |
| 24F | 7.0MM | Φ7.0±0.3 | 54.0 | 1500 | 750 | 170 | 85 | 3000 |
