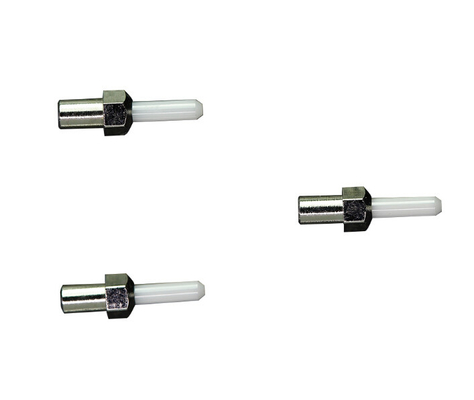

SC LC Fiber Optic Components Ceramics Zirconia Sleeve Ferrule White Color
100pcs
MOQ
0.15-0.25
Price
SC LC Fiber Optic Components Ceramics Zirconia Sleeve Ferrule White Color
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Guangdong China
Brand Name: HICORPWELL
Certification: ISO9001-2015
Model Number: Optical Fiber SC LC Ceramic Ferrule Ceramics Zirconia Sleeve Ferrule
High Light:

fiber cable connectors

,

fiber quick connector

Payment & Shipping Terms
Packaging Details: Vacuum packing or following your order's demand
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 4000000 Piece/Pieces per Month
Specifications
Name: Optical Fiber SC LC Ceramic Ferrule Ceramics Zirconia Sleeve Ferrule
Conerntricity: SM≤1.0 MM≤4.0
Length: SC: SM10.5±0.05 MM10.5±0.1 LC:
Ferrule: SC/LC/APC/CUSTOMIZED
OD Size: SC:2.499±0.0005 LC:1.249±0.000
Material: Zirconia Dioxide
Color: White
Sample: Free
Nearest Port: Shenzhen/HK
MOQ: Min Order And Sample Order Is Acceptable.
Product Description



SC LC Fiber Optic Components Ceramics Zirconia Sleeve Ferrule White Color





Processing equipments



CNC machining center, CNC lathe, grinding machine, automatic lathe machine, conventional lathe machine, milling machine, drilling machine, EDM, wire-cutting machine, CNC bending machine,Punching press, etc



Surface treatment



Heat treatment, polishing, PVD/CVD coating, galvanized, electroplating, spraying, and painting and so on



Testing tool



CMM, Measuring Projector, Mitutoyo Digital Vernier Caliper, Mitutoyo Digital Height Gauge, Feeler Gauge & Plug Gauge & Thread Gauge, Hardness Inspection Instrument, Salt spray testing machine, Fluorescent Magnetic Particle Flaw Detector, Roughness Tester, etc



Samples



Samples can be provided according to customers’ requirements or after get customers’ drawings.



Sample cost should be afforded by customer and return back when place bulk order.





O.D.Size

SC:2.499±0.0005 LC:1.249±0.0005

I.D.Size

Customized

Concentricity

SM≤1.0um MM≤4.0um

Length

SM10.5±0.05 MM10.5±0.1 LC:6.4+0.1

Ferrule Type

SC/LC/APC/Customized

Material

Zirconia Dioxide

Endface

Conical type/ Step type/Plane type

Color

White

Sample

Free

Type

SC

LC

MU

APC

UNIT

O.D.Size(mm)

SM: 2.4999±0.0005

SM: 2.4999±0.0005

1.249±0.0005

2.499±0.0005

φd±0.0005

MM: 2.4999±0.001

MM: 1.249±0.001

I.D.Size(mm)

SM: d±0.001

SM: d±0.001

d±0.001

d±0.001

d±0.001

MM: d±0.002

MM: 0.126±0.004

Concentricity(um)

SM: ≤1.0

SM: ≤1.0

≤1.0

≤1.0

Customized

MM: ≤4.0

MM: ≤4.0

Length(mm)

SM: 10.5±0.05

6.4+0.1

6.5±0.05

10.5±0.05

L±0.05

MM: 10.5±0.05





• High precision and Reliability .


• Excellent Strength, Endurability and Anti-aging performance .


• Various types of ferrules and End-faces .



Parking  :Carton, Wooden box, or as per the customer’s requirements



Delivery time



In 15-25 days after get the deposit (including tooling making time).



SC LC Fiber Optic Components Ceramics Zirconia Sleeve Ferrule White Color 0SC LC Fiber Optic Components Ceramics Zirconia Sleeve Ferrule White Color 1

SC LC Fiber Optic Components Ceramics Zirconia Sleeve Ferrule White Color 2SC LC Fiber Optic Components Ceramics Zirconia Sleeve Ferrule White Color 3
