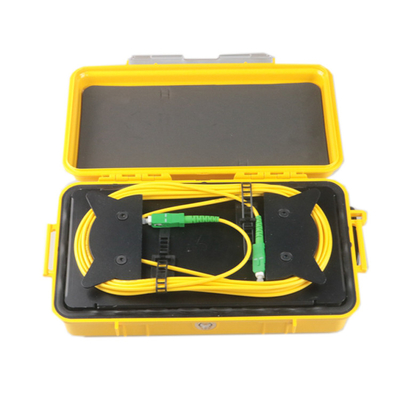

Fiber Optic Cable Spool Ring Box In Yellow Color For Fiber Optic Protection
10KM
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Fiber Optic Launch Box
High Light:

fiber optic patch box

,

fiber optic termination box

Payment & Shipping Terms
Packaging Details: Standard length: 2km/roll (as per your requirements)
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000KM Per Month
Specifications
Name: Fiber Optic Launch Box
Paintcoat Color: Yellow
Purpose: Box For Fiber Optic Protection
1310nm: 0.36-0.22 DB/Km
1550nm: 0.5-0.4 DB/Km
Fiber: G652D,G655
Certificate: IEC 60794-2-10/11
Connectors: Can Be Added As Per Your Request, SC/LC/FC/ST Etc
Product Description

OTDR Fiber Ring Box Dummy Fiber SM MM With SC FC LC etc Connectors Fiber Ring Box


An OTDR launch cable, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection.

A fiber ring serves as both a launch cable and a receive cable.

OTDR Launch Cables are designed to be used in conjunction with an OTDR to measure complete link loss of a fiber.

They are also known as pulse suppressor cables, launch cords, launch leads, receive cables or fiber rings.



Specifications



Attenuation @1310nm ≤0.35dB/km
@1550nm ≤0.21dB/km
Attenuation vs wavelength @1310nm 1285~1330nm ≤0.03dB/km
@1550nm 1525~1575nm ≤0.02dB/km


The OTDR Launch cables can be added with certain connectors,

such as FC-FC,SC-SC,FC-SC ST-ST etc.


Please send us your requirements for the connectors you need.



Ordering Info:




   Part No.                           Description
Fiber-BOX-SM05

SM G652D, 500M,
Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC,
FC/APC, LC/UPC, LC/APC optional

Fiber-BOX-SM10

SM G652D, 1KM,
Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional

Fiber-BOX-SM20

SM G652D, 2KM,
Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,
LC/UPC, LC/APC optional

Fiber-BOX-MM05

MM (62.5/125um or 50/125um), 500M,
Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

Fiber-BOX-MM10

MM (62.5/125um or 50/125um), 1KM,
Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

Fiber-BOX-MM20

MM (62.5/125um or 50/125um), 2KM,
Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

Fiber-BOX-SM705

SM G657A, 500M,
Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,
LC/UPC, LC/APC optional

Fiber-BOX-SM710

SM G657A, 1KM,
Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional

Fiber-BOX-SM720

SM G657A, 2KM,
Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,
LC/UPC, LC/APC optional

Fiber-BOX-OM305

OM3, 500M,
Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

Fiber-BOX-OM310

OM3, 1KM,
Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

Fiber-BOX-OM320

OM3, 2KM,
Connector; FC/PC, SC/PC, ST/PC, LC/PC optional





Main Features :



  • Water and dust proof allowing the unit to be taken into almost any environment ;
  •
  • the case can house up to 2000meters of fiber ;

  •

  • small volume, light weight(1kg)easy to carry;

  •

  • excellent sealing performance

  •

  • we also supply the OTDR launch cable in roll type.

  •

Standard Package


package : by cartons

The fiber ring box can work with any type of OTDR as below.


Fiber Optic Cable Spool Ring Box In Yellow Color For Fiber Optic Protection 0
