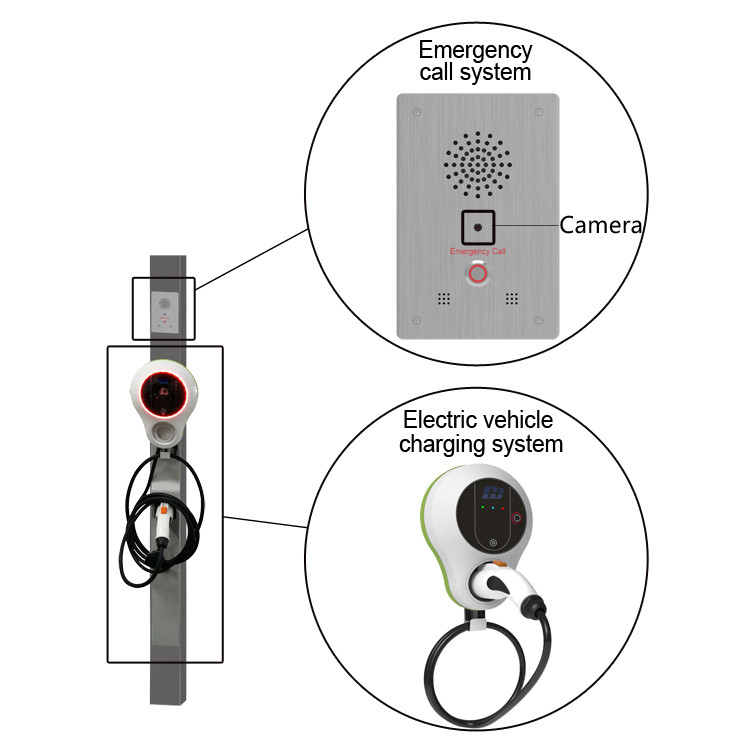

Smart City Smart Street Light Pole with Charge Station Function
Pole Specification :
| 3-12meter | |
| LED lamp | 30-180W |
| Driver | |
| Single control | Zigbee /Lorawan/NB-lot |
| Camera |
3-inch hemisphere, 300W pixels Supports maximum 2048 * 1536@30fps hd picture output Support h. 265 efficient compression algorithm, can save more storage space Support area intrusion detection, border detection, mobile detection and other intelligent detection functions Supports 350 ° horizontal rotation, vertical direction 0 ° to 90 ° Support 300 preset bits, 8 cruise scans Support POE (802.3af) power supply Support e-home protocols and fluorescent-cloud services Lightning protection, surge protection, surge protection, IP66 protection level |
| Software | Lighting system,advertisement, camera monitor,environment |
| weather sensor | Eight in one: Humidity, Air Pressure, Wind Speed, Wind Direction, Temperature, Decibel, PM2.5, PM10 |
| WIFI-AP |
2.4GHz 500MW / 300Mbps Chinese multi-SSID supports VLAN isolation Cover 100 meters and connect to 100 points Support 2 N-port antenna interfaces |
| WIFI-AC |
Centralized control of up to 128 APs The platform is based on embedded architecture to achieve high-speed forwarding of multiple services. Support IEEE802.11a/b/g and IEEE802.11n standards Implement centralized access and centralized deployment of APs |
| One key calls the terminal device |
Hd camera, active real-time surveillance,720P CMOS camera Full duplex voice intercom, audio coding: g.711, G713, PCM 3 m distance intercom, speaker: 8 Ω 3 w Dynamic noise reduction, clear sound pickup, SNR >85db Outdoor rainproof, IP52. RJ45 interface, support TCP/IP, DHCP |
| Voice box |
Theoretical power 1.4W×2 Impedance 4Ω Signal to noise ratio ≥ 80 Sensitivity 450±50mV |
| Microphone | For network call microphone input |
| Charging Station |
Installation form: embedded installation;Working environment temperature: - 30 ℃ ~ + 50 ℃ Input voltage: AC220V plus or minus 10%;Charging mode: single charge Total power: 7kW; Whole machine performance: the efficiency is greater than 99% Start mode: swipe card, APP scan code: protection level is greater than or equal to IP54 |
| LED full-color display |
Model: P4 indoor full color screen rated current Indoor color display: 40 (mA) Rated voltage: 5 (V) module size Module size: 256 * 128 (mm) Size size: 740 * 512 use environment environment: outdoor outdoor |
| full-color control card | Full color control card / support LED screen / P2.5 / P4 / P5 / P10 |
| Multifunction exchange |
Support network interface, WIFI, 4G (optional), access to the Internet, multi-network simultaneously online; Ethernet interface 1 X WAN 10/100Mbps, Adaptive Ethernet port 4 X LAN 10/100Mbps ,Adaptive Ethernet port Power supply range: 9-24V DC (24W) Working average current: about 320mA@12VDC |
| ODM/OEM | YES |
