IP 54 Permanent Magnet Generator 5KW 375r AC400V T Generator PMG 5kw For HAWT

IP 54 Permanent Magnet Generator 5KW 375r AC400V T Generator PMG 5kw For HAWT
Features Gallery Product Description Request A Quote
Name: Low Rpm PMG Generators
Rated Power: 5KW Low Rpm Generators
Shaft Material: Carbon Steel
Rated Voltage: AC 400V
Rated Current: 7.21A
PMG Collocation:: Y Connection,Three Phase Three Wires, Alterna
Speed Range: 0-450RPM
Rotor: Rare Earth Permanent Magnet
Power Type: Off-grid Or On-Grid
Weight: 100KG
High Light:

maglev wind generator


high efficiency generator

Basic Infomation
Place of Origin: China
Certification: ISO9001
Model Number: Permanent magnet generator coreless PMG
Payment & Shipping Terms
Packaging Details: Weight:100Kgs
Delivery Time: 25 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500 pcs  Per Month
Product Description


IP 54 Permanent Magnet Generator 5KW 375r AC400V t Generator PMG 5kw for HAW



Technology Advantages


Our Permanent Magnet Generator products adopt optimum pole slot configuration, and have shorten magnet circuit and the pitch of stator winding which make the structure design of the products more reasonable, and reduces material consume by 15% compared with like products.

Thus the products are small and light.


The start torque is lower by 40% than national standard, while the whole efficiency of the generators have boosted by 10%.


In order to improve the wind utilization rate, We have developed a new kind of PMG with low frequency and high efficiency recently,

whose speed of voltage buildup is lower, so it has a better performance in gentle breeze.


Resource Advantages


China , is the home of rare earth,where accounted for 80% the world's rare earth reserves.The National Rare Earth Application and Research Agency and the National Rare Earth High-Tech development zone are also in this area who have provided us with abundant permanent material and advanced technology support for the products R&D.


Relying on the superiority of Technology,Policy and local rare earth resources,the company has increased the yearly production of rare earth permanent magnet generator and rare earth permanent magnet synchronous motor to 100MW, All of those laid a solid foundation for the sustainable development of the enterprise.


Quality Guarantee


We apply high quality 40SH,42SH,40UH rare-earth NdFeB(Neodymium Iron Boron) Magnet to our generator. The fastness of magnet steel of rotor adopt inlaid type process, strong adhesives splicing ,furthermore epoxy resin encapsulating technology which increase stability and corrosion resistance of magnet.


The stator and rotor of generator apply high grade cold rolling silicon sheet, with high intensity and characteristic of uneasily deformed; the stator windings are wound with 180 grade combing paintcoat series enamel-cover round copper wire, especially it is impregnated by the techniques of combing process of vacuum constant temperature and constant heat, it has elevated insulation grade .


We choose professional completely-enclosed NSK,NTN,SKF,C&U bearings and nickle plated 40Cr steel shaft with quenching and tempering treatment,the outer frame is Zinc plated with anti-corrosion treatment.We believe high quality material and advanced craft is the firm guarantee of the high quality products.

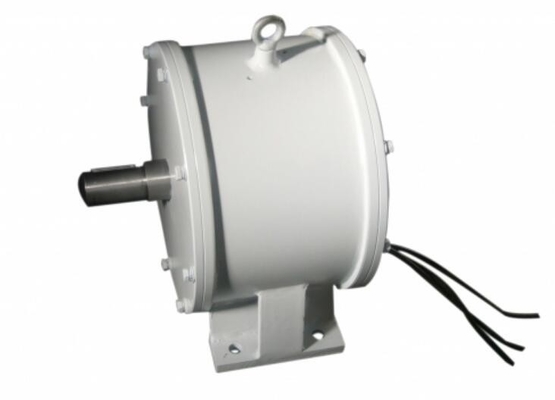

IP 54 Permanent Magnet Generator 5KW 375r AC400V T Generator PMG 5kw For HAWT 0


IP 54 Permanent Magnet Generator 5KW 375r AC400V T Generator PMG 5kw For HAWT 1
