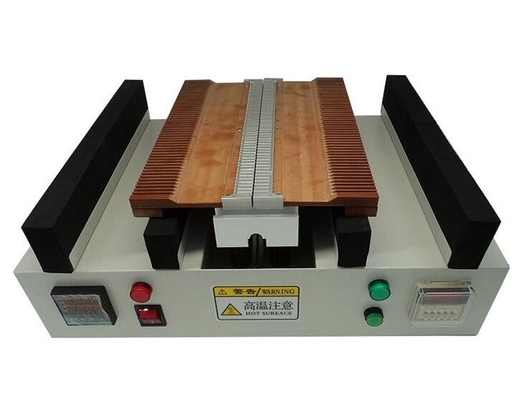

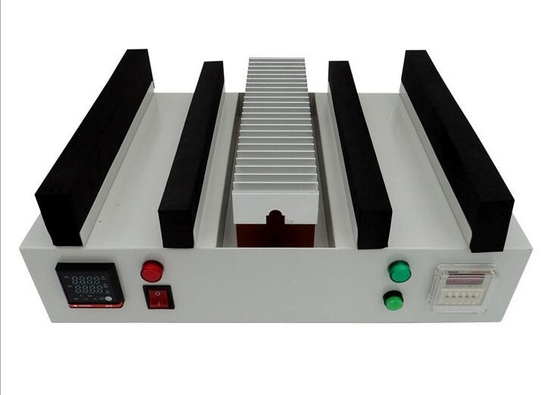

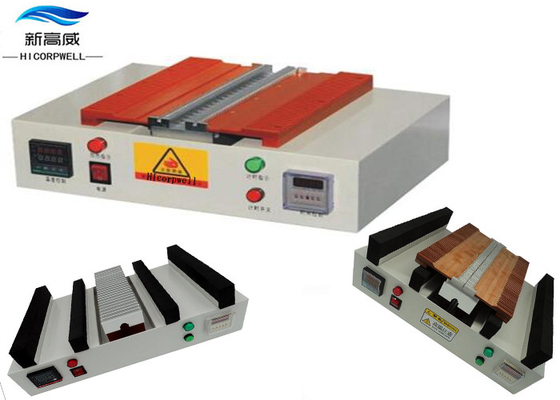

Stable Fiber Optic Components Uniform Heating Bake Oven Machine Connector Heat Opatch Cord Fiber

1, Overview:

Fiber curing furnace is a professional adhesive fiber heat curing of a device is a necessary equipment for production of optical

fiber jumper, pigtail fiber connector, optical communication device etc..

The equipment has high precision and wide applicability, and is used in the production of optical fiber connectors such as FC,

SC, LC, MU, MT, ST, MPO and so on.

2, Performance characteristics:

According to the specific needs of optical fiber connector production specially designed, to avoid the broken fiber tow and

inconvenient test problems, For each operation, 100 core joint and 42 one joint can be cured at the same time, which is

convenient and flexible and more suitable for the production of optical fiber connector manufacturers.

The temperature control is stable with the control of electronic components in Japan.

The temperature controller has the function of self tuning (PID).

- free setting of reference temperature, automatic humidity regulation, controllable range of 0 C to 300 C,

temperature control precision of up to 1 degrees C, adjustable heating time

- There are two modes of control are available:

A. continuous heating mode - continuous heating for a long time, maintaining the constant temperature,

controlled by the power supply switch

B. timing alarm mode - timed beep alarm, keep heating. Controlled by time switch, reset the time after reset button

3, the use of method:

1, connect the power line, open the power switch. The light is illuminated.

2, open the temperature controller ship type switch, the indicator lights up.

3, temperature setting, long press SET key, SV data value will flicker, adjust the upper and lower arrows, change the temperature, and adjust the digital position to the left arrow. After the temperature setting is suitable, press the SET key to save the temperature. OUT green and so on, indicating that it is heating.

4, time setting, S M H unit of time adjustable. Add and subtract the number, you can set the length of the time. When

completed, turn on the timing switch. The timing of the equipment has been officially started. When the set time count is

completed, the device buzzer alarm and the timing switch should be closed.

Note: Curing furnace belongs to high temperature baking equipment, careful hot operation.

In case of abnormal operation of the equipment, it is required to be overhauled by the professional personnel,

and do not disassemble itself.
