Pvc Jacket Netowork Ethernet LAN Cable Utp Cat 6 24awg 2pr 4pr 305m 1000ft 0.56 Utp Indoor
30 roll
MOQ
negotiation
Price
Pvc Jacket Netowork Ethernet LAN Cable Utp Cat 6 24awg 2pr 4pr 305m 1000ft 0.56 Utp Indoor
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Cat6 Lan Cable
High Light:

ethernet network lan cable

,

ethernet net cable

,

Pvc Jacket Ethernet LAN Cable

Payment & Shipping Terms
Packaging Details: 305m/ 1000ft/ Roll 1 Roll/ Box 2 Boxes/ Carton Box Size: 38*38*24cm Carton Size: 40*40*50cm G.W.: 28KG/ Carton
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500 Rolls Per Week
Specifications
Cable Type: Cat6 Network Ethernet Lan Cable
Paintcoat Color: Black Or Orange Or Others
MOQ: 30 Roll
Roll Length: 305 M
Material: CCA,BC Copper
Test: Pass Fluke Test
Number Of Conductors: 8
Jacket Material: PVC, ROHS PVC, LSZH PVC
Product Description





Pvc Jacket Netowork Lan Cable Utp Cat 6 24awg 2pr 4pr 305m 1000ft 0.56 Utp Cat6 Indoor Cable





Specifications



1, Bare copper conductor


2, 8P8C/RJ45/Golden-plated connector
3, OEM different color and length for cat5 patch cord





Category Cat6 cable
Structure Type UTP
Conductor Bare copper/CCAG
Pair 4 pairs
Awg 23awg/24AWG/26AWG/28AWG
Solid/Stranded Stranded
Insulation Material Color-coded PE
Outer Jacket Material PVC/ROHS
Color by customized order
Length by customized order
Reference Standard Category 5 UL444, ANSI/TIA/EIA 568B & ISO/IEC 11801 Standard
Rated Temperature -20° to +75°
Supports transmission Digital and analogue voice, data and video signal
Price we can offer the more competitive price
Quality Toppest raw material conductor, skilled workers to provide good quality products





Specification



Frequency Return Loss Min Attenuation Max

NEXT

Min

PSNEXT

Min

ELFEXT

Min

PSELFEXT

Min

(MHz) (dB) (dB/100m) (dB/100m) (dB/100m) (dB/100m) (dB/100m)
1 20 1.84 74.3 72.3 68 65
4 23.01 3.69 65.27 63.27 55.96 52.96
10 25 5.89 59.3 57.3 48 45
16 25 7.51 56.24 54.24 43.92 40.92
20 25 8.43 54.78 52.78 41.98 39.98
31.25 23.64 10.64 51.88 49.88 38.1 35.1
62.5 21.54 15.36 47.36 45.36 32.08 29.08
100 20.11 19.78 44.3 42.3 28 25
200 18 28.97 39.78 37.78 21.98 18.98
250 17.32 32.84 38.33 36.33 20.04

17.04







Inner conductor Material CCA/Copper clad aluminum wire
Diameter 0.56 ± 0.01mm
Insulation(Dielectric) Material Color-coded PE (Polyethylene)
Thickness 0.21mm
Diameter 0.98± 0.01mm
Cross Separator Material Plastic
Outer Jacket Material PE
Thickness 0.65mm
Nominal O.D 6.5mm ± 0.10mm
Color Black
Twisted pair N/A

Pair 1 : Blue, White / Blue

Pair 2 : Orange, White / Orange

Pair 3 : Green, White / Green

Pair 4 : Brown, White / Brown

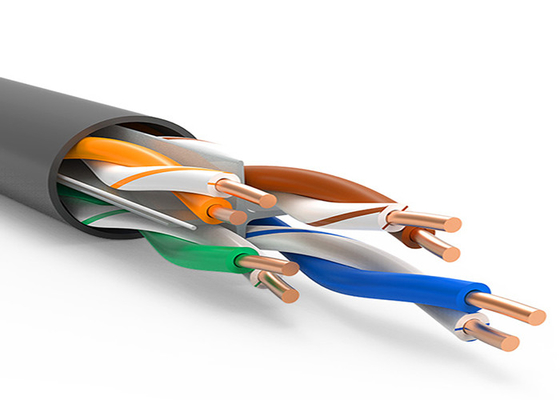

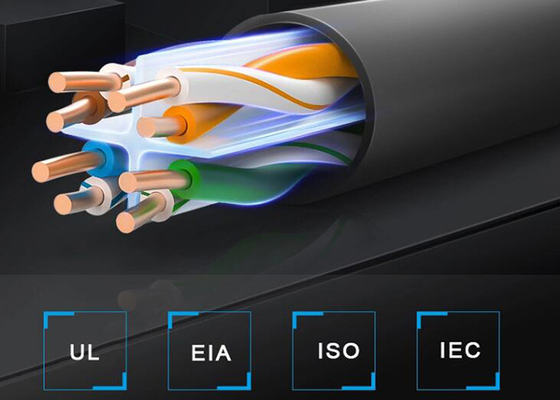

Pvc Jacket Netowork Ethernet LAN Cable Utp Cat 6 24awg 2pr 4pr 305m 1000ft 0.56 Utp Indoor 0Pvc Jacket Netowork Ethernet LAN Cable Utp Cat 6 24awg 2pr 4pr 305m 1000ft 0.56 Utp Indoor 1

Pvc Jacket Netowork Ethernet LAN Cable Utp Cat 6 24awg 2pr 4pr 305m 1000ft 0.56 Utp Indoor 2
