Best Home Generators 2020 Certificate Generator PMG 0.3kw 0.6kw With Low 400RPM 800RPM

1000W
MOQ
negotiation
Price
Best Home Generators 2020 Certificate Generator PMG 0.3kw 0.6kw With Low 400RPM 800RPM
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Low Rpm PMG Generators
Rated Power: 0.3kw 0.5kw 1kw Low Rpm Generators
Shaft Material: Carbon Steel
Rated Voltage: 24-48 V
Insulating Resistance: 100Mohm Min(500V DC)
Phase Type: Three Phase AC
Structure: Out Rotor
Stator: Coreless Wire Coil
Rotor: Rare Earth Permanent Magnet
Power Type: Off-grid Or On-Grid
Highlight:

maglev wind generator

,

high efficiency generator

Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: ISO9001
Model Number: Low Wind Speed Option Permanent Magnet Generator Coreless PMG 0.3kw 0.6kw With Low 400RPM 800RPM
Payment & Shipping Terms
Packaging Details: Poly 260W solar panel Size:1640*990*40mm Weight:20Kgs
Delivery Time: 25 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 pcs  Per Month
Product Description

Best Home Generators 2020 Certificate Generator PMG 0.3kw 0.6kw With Low 400RPM 800RPM

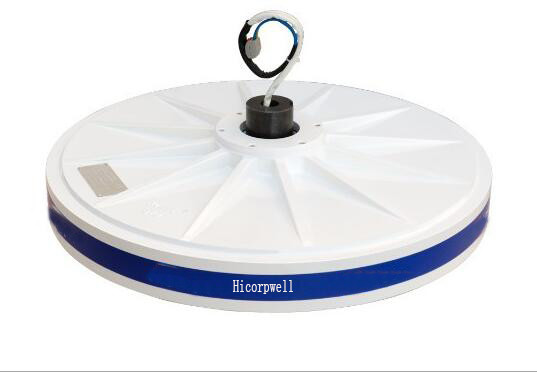

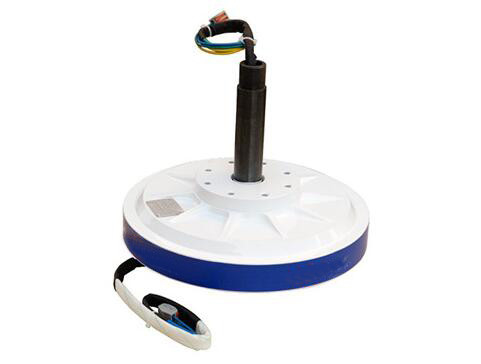

we can supply modified kinds of Coreless Disk Permanent Magnet Generator.



  • Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <1N.M
  • Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
  • Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
  • Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
  • Gearless, direct drive, low RPM generator.
  • High standard, quality components for use in harsh and extreme environments for wind turbines
  • High efficiency and Low mechanical resistance energy loss.
  • Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.



The main models are as follow:



  • H-0.3KW 200RPM
  • H-0.5KW 200RPM
  • H-1KW 180RPM
  • H-1KW 200RPM
  • H-2KW 120RPM
  • H-2KW 180RPM
  • H-3KW 100RPM
  • H-3KW 180RPM
  • H-5KW 100RPM
  • H-5KW 150RPM
  • H-10KW 100RPM

Inner Rotor



Model Rated output power (KW) Rated speed (RPM) Rated output voltage Weight (Kg)
H710 10 250 380VAC 145
7.5 200 380VAC
5 150 220VAC/380VAC
4 100 96VAC/240VAC
3 100 220VAC/380VAC
H 560 15 400 300VAC 135
10 250 380VAC
7.5 200 220VAC/380VAC
5 180 220VAC/380VAC
4 200 220VAC/380VAC 90
3 180 220VAC/380VAC
2 130 112VDC/220VAC/380VAC
1.5 100 112VDC/220VAC/380VAC
1 100 56VDC/112VDC/220VAC/380VAC
H520 3 200 112VDC/220VAC/380VAC 70
2 150 112VDC/220VAC/380VAC
1 90 56VDC/112VDC/220VAC
H460 2 180 112VDC/220VAC/380VAC 52
1.5 150 220VAC/380VAC
1 130 56VDC/112VDC/220VAC
H380 2 350 112VDC/220VAC/380VAC 34
1 180 56VDC/112VDC/220VAC
0.5 130 56VDC/112VDC
H330 1 350 56VDC/112VDC/220VAC 22
0.5 200 56VDC/112VDC
0.3 150 28VDC/56VDC
0.2 100 28VDC/56VDC
H270 0.5 350 28VDC/56VDC 11
0.3 300 28VDC
0.2 200 28VDC/56VDC
0.1 130 14VDC/28VDC
H230 0.2 350 14VDC/28VDC 8.5
0.1 200 14VDC/28VDC
H210 0.1 350 14VDC/28VDC 6
0.05 200 14VDC
H165 0.3 850 14VDC/28VDC 4
0.15 500 14VDC/28VDC
0.05 250 14VDC



Outer Rotor



Rated output power (KW) Rated speed (RPM) Rated output voltage     Rated output voltage
H770 15 260 380VAC 165
10 180 220VAC/380VAC
7.5 150 220VAC/380VAC
5 100 220VAC/380VAC
H700 10 250 380VAC 135
7.5 200 380VAC
5 150 220VAC/380VAC
4 100 96VAC/240VAC
3 100 220VAC/380VAC
H550 4 200 220VAC/380VAC 80
3 180 220VAC/380VAC
2 130 112VDC/220VAC/380VAC
1.5 100 112VDC/220VAC/380VAC
1 100 56VDC/112VDC/220VAC/380VAC
H510 3 200 112VDC/220VAC/380VAC 65
2 150 112VDC/220VAC/380VAC
1 90 56VDC/112VDC/220VAC
H 450 2 180 112VDC/220VAC/380VAC 48
1.5 150 220VAC/380VAC
1 130 56VDC/112VDC/220VAC
H380 2 350 112VDC/220VAC/380VAC 32
1 180 56VDC/112VDC/220VAC
0.5 130 56VDC/112VDC
H 320 1 350 56VDC/112VDC/220VAC 20
0.5 200 56VDC/112VDC
0.3 150 28VDC/56VDC
0.2 100 28VDC/56VDC
H260 0.5 350 28VDC/56VDC 11
0.3 300 28VDC
0.2 200 28VDC/56VDC
0.1 130 14VDC/28VDC
H 220 0.2 350 14VDC/28VDC 8.5
0.1 200 14VDC/28VDC
H200 0.1 350 14VDC/28VDC 6
0.05 200 14VDC
H150 0.3 850 14VDC/28VDC 4
0.15 500 14VDC/28VDC

Our magnetic generator is free 3 years warranty, All life long technical support and part cost supply.



(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.


(2) the warranty period, company's quality problems caused by the maintenance of the freight borne by



the company, if not under warranty or man-made damage, the freight charges by the customer.


(3) Free maintenance services during the warranty period the cost involved be borne by the company,



do not charge a fee to customers, free warranty if any damage outside the warranty period,



the company will charge a fee for labor costs and materials.
