OD 3.08mm X ID2.48mm SC Optic Fiber Alignment Split Sleeve

2000pcs
MOQ
0.15-0.25
Price
OD 3.08mm X ID2.48mm SC Optic Fiber Alignment Split Sleeve
Features Gallery Product Description Request A Quote
Features
Specifications
Name: SC Optic Fiber Alignment Split Sleeve
Length: 2.5mm
Ferrule: SC/CUSTOMIZED
OD Size (Ceramic): SC:3.2mm
Material: Phospher Bronze
Color: Yellow
OD Size (Zirconia): SC 3.08mm
Nearest Port: Shenzhen/HK
MOQ: 2000
Highlight:

3.08mm Fiber Optic System Components

,

LC Alignment Split Sleeve

Basic Infomation
Place of Origin: Guangdong China
Brand Name: HICORPWELL
Certification: ISO9001-2015
Model Number: SC split sleeve for SC adapters
Payment & Shipping Terms
Packaging Details: Vacuum packing or following your order's demand
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 4000000 Piece/Pieces per Month
Product Description

OD 3.08mm X ID2.48mm Phosphor Bronz for SC Split SleeveLength

The Phosphor Bronze version provides the precision you require on LC adapters applications.

The split sleeves have an outside diameter of OD 3.08mm X ID2.48mm and a length of 11.4mm.( MOQ:1000pcs)

Those split sleeves are used in adapters for aligning the connector ferrule.

We have a selection of high quality Zirconia Split Sleeves and Phosphor Bronze Sleeves,

for both singlemode and multimode applications.



Phosphor Bronze Split Sleeves are an economical solution for applications where tremendous durability

and repeated connect / disconnect operations are not required.



Specifications



Type Zirconia Split Sleeve Phospher Bronze Sleeve
Style SC LC, MU SC LC, MU
Length (mm) 11.4 6.8 11.4 6.8
O.D. Size (mm) 3.2 1.62 3.08 1.62
I.D. Size (mm) 2.5 1.246 2.48 1.246
Pulling Force (N) 2‐5.9 0.98‐2.45 2‐5.9 0.98‐2.96





Characteristics



Those split sleeves are used in adapters for aligning the connector ferrule.

We have a selection of high quality Zirconia Split Sleeves and Phosphor Bronze Sleeves,

for both singlemode and multimode applications.

Those high quality phosphor bronze material delivers a spring-like property

which ensures a strictly controlled withdrawal force of 200 to 600 grams.

Tolerance specifications are also well controlled resulting in a typical insertion loss of 0.1dB* or less.

Sleeves are available in SC, FC, ST, D4, MU, and LC style.



Applications

  • Singlemode and multimode
  • SC, FC, ST, D4, MU, LC and DIN adapters
  • Fiberoptic receptacles, adapters, attenuators and other

Features

  • High quality phosphor bronze material
  • High performance and superior durability
  • Low insertion loss*

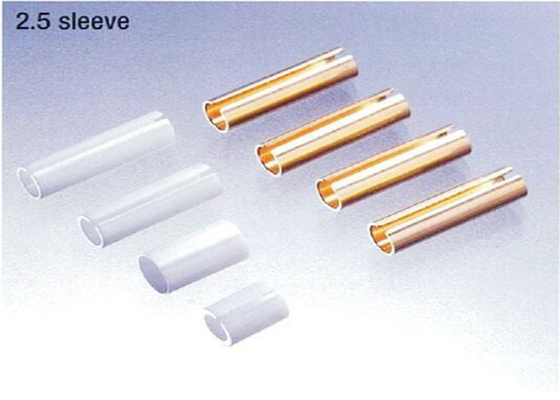

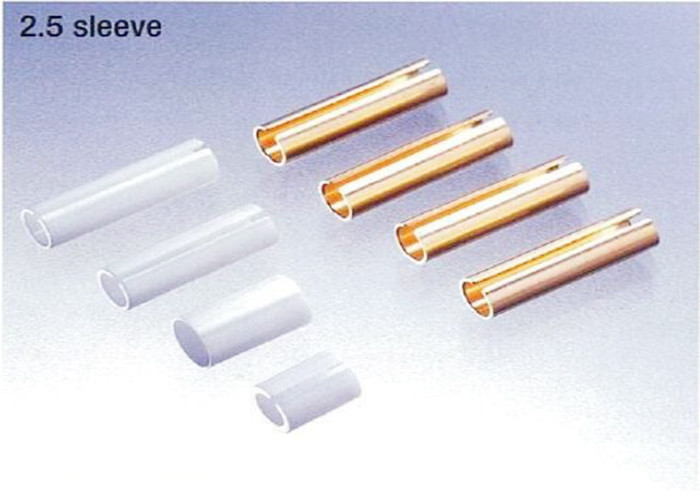

Ceramic Split Sleeves and Phosphor Bronze Split Sleeves

Ceramic Splits sleeves and Phosphor Bronze Split Sleeves are categorized into two types used for

ferrule outer diameters of 12.5mm and 2.5mm.

They are used for connecting and aligning ferrules used with ST, FC, SC, LC and MU Fiber Connectors.

We provide several kinds of ceramic split sleeves and Phosphor Bronze Split Sleeves with various Ferrules pull force requirements for

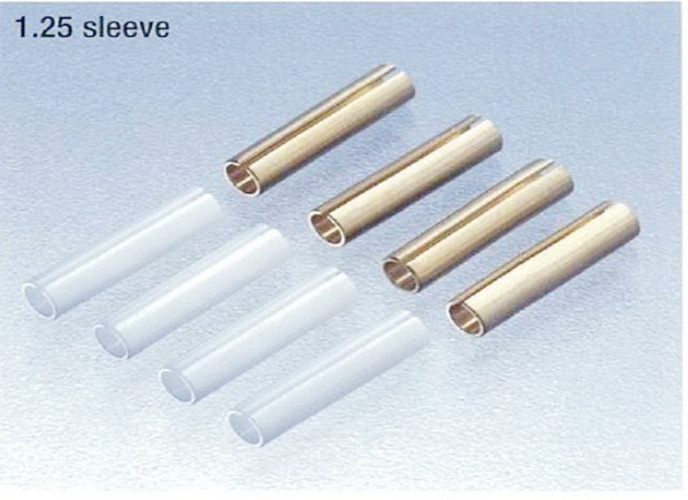

φ2.5mm OD Ferrules used for SC, FC and ST Fiber Adapters and for φ1.25mm OD Ferrules used for LC and MU Fiber Adapters.

We also provide sleeves with special configurations, such as taped or chamfered in ends.

Those configurations were uniquely designed to reduce the sleeve's broken rate and ferrule surface's abrasion

when inserting the adapters into the sleeves.

The configuration of products is greatly improved on the basis of considering requirements of pull-out force, insertion loss and length.

Besides Standard singlemode and multimode ceramic sleeves for standard FC, ST, SC, LC, MU fiber adapter,

We also offer custom manufacturing Non Standard Ceramic Sleeves , both split and solid types of various length and O.D.
