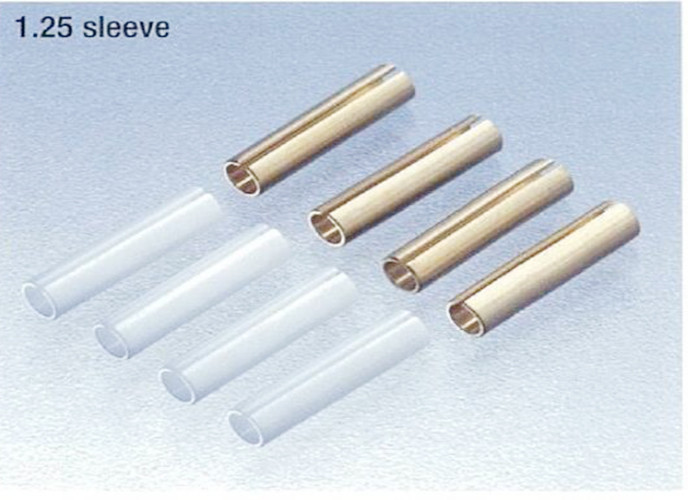

Phosphor Bronze Split Sleeves are an economical solution for applications where tremendous durability
and repeated connect / disconnect operations are not required.
The Phosphor Bronze version provides the precision you require on LC adapters applications.
The split sleeves have an outside diameter of 1.62X1.246mm and a length of 11.4mm.( MOQ:1000pcs)
Those split sleeves are used in adapters for aligning the connector ferrule.
We have a selection of high quality Zirconia Split Sleeves and Phosphor Bronze Sleeves,
for both singlemode and multimode applications.
Specifications
|
Type |
Zirconia Split Sleeve |
Phospher Bronze Sleeve |
|||
|---|---|---|---|---|---|
|
Style |
SC |
LC, MU |
SC |
LC, MU |
|
|
Length |
(mm) |
11.4 |
6.8 |
11.4 |
6.8 |
|
O.D. Size |
(mm) |
3.2 |
1.62 |
3.08 |
1.62 |
|
I.D. Size |
(mm) |
2.5 |
1.246 |
2.48 |
1.246 |
|
Pulling Force |
(N) |
2‐5.9 |
0.98‐2.45 |
2‐5.9 |
0.98‐2.96 |
Characteristics
Those high quality phosphor bronze material delivers a spring-like property
which ensures a strictly controlled withdrawal force of 200 to 600 grams.
Tolerance specifications are also well controlled resulting in a typical insertion loss of 0.1dB* or less.

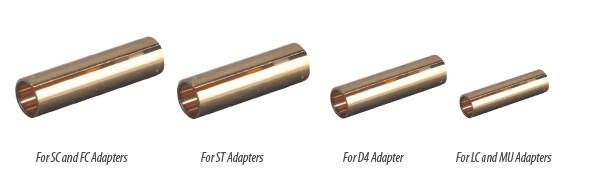

Sleeves are available in SC, FC, ST, D4, MU, and LC style.
Ceramic sleeves (zirconia sleeve) are mostly used in fiber adapter for the main purpose of connecting
and aligning two inserted ceramic ferrules together.
Ceramic Split sleeves and Solid ceramic sleeves.
Ceramic Split sleeves are to hold ferrules in place firmly and to enable a stable connection with Fiber Connectors . Solid ceramic sleeves (precision sleeves) are often used for connecting optical modules. Moreover, the solid ceramic sleeve requires a more accurate inner diameter process than the Ceramic split sleeve.
Ceramic Split Sleeves and Phosphor Bronze Split Sleeves
Ceramic Splits sleeves and Phosphor Bronze Split Sleeves are categorized into two types used for ferrule outer diameters of 12.5mm and 2.5mm. They are used for connecting and aligning ferrules used with ST, FC, SC, LC and MU Fiber Connectors.
We provide several kinds of ceramic split sleeves and Phosphor Bronze Split Sleeves with various Ferrules pull force requirements for φ2.5mm OD Ferrules used for SC, FC and ST Fiber Adapters and for φ1.25mm OD Ferrules used for LC and MU Fiber Adapters.
We also provide sleeves with special configurations, such as taped or chamfered in ends. Those configurations were uniquely designed to reduce the sleeve's broken rate and ferrule surface's abrasion when inserting the adapters into the sleeves. The configuration of products is greatly improved on the basis of considering requirements of pull-out force, insertion loss and length.
Besides Standard singlemode and multimode ceramic sleeves for standard FC, ST, SC, LC, MU fiber adapter, We also offer custom manufacturing Non Standard Ceramic Sleeves , both split and solid types of various length and O.D.
