Black 1000mm Cable Thermal Shrinkable Terminal Head
10sets
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: ISO9001-2015
Model Number: Thermal Shrinkable Terminal Head
High Light:

Crosslinked Cable Terminal Accessories

,

PE Thermal Shrinkable Terminal Head

Payment & Shipping Terms
Packaging Details: 20000 Piece/Pieces per Day
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000pcs Per Week
Specifications
Cable Type: Thermal Shrinkable Terminal Head
Material: PE
Temperature Range: -55 ℃ ~ 125 ℃
Color: Red, Yellow, Green;
Voltage Range: 1-35KV
Size1mm~4mm Length: 400m/roll Or 200m/roll
Size 5mm~22mm: 100m/roll
Size 25mm~150mm: 25m/roll
Wall Thickness: 2-5mm
Key Words: Heat Shrink Cable Accessories
Product Description



Cable Thermal Shrinkable Terminal Head Crosslinked Cable Terminal Accessories



The installation of the heat shrinkable cable accessories must be a complete continuous construction, so as not to be affected with damp be affected with damp, 10 kv and below cable heat appears should be completed within four hours. C .



Type heat shrinkable power cable accessories has small volume, reliable performance, strong adaptability, simple and easy for installation. Applicable to power cable households inside and outside the terminal and intermediate links.Type heat shrinkable power cable accessories when using the environment temperature allowed range is - 40 ° C to + 70 ° C.



The end of the insulation tube is generally 650mm, but can also be extended to

800mm, 1000mm, 1200m.(according to the requirements of customers).



The steel armor ground wire and copper screen ground wire separately,

making the cable pre-test more convenient and reasonable.



Product specification



Product Name Type cable section(mm2)
10kv three-core XLPE cable indoor termination HCW-10/3.1 25-50
HCW-10/3.2 70-120
HCW-10/3.3 150-240
HCW-10/3.4 300-500
10kv three-core XLPE cable outdoor termination HCW-10/3.1 25-50
HCW-10/3.2 70-120
HCW-10/3.3 150-240
HCW-10/3.4 300-500
10kv three-core PILC cable indoor termination HCW-10/3.1 25-50
HCW-10/3.2 70-120
HCW-10/3.3 150-240
10kv three-core PILC cable outdoor termination HCW-10/3.1 25-50
HCW-10/3.2 70-120
HCW-10/3.3 150-240



Technical Index



Product Name

10KV heat
shrinkable
termination

and joint

Sr. No. Test Name Standard Requirement Result Remarks
1 Power frequency
withstand voltage test
(wet)

39kv,5min,neither flashover

nor breakdown occurs

39kv,5min,neither flashover nor
breakdown occurs
Pass
2 Partial discharge test 15kv,the magnitude of discharge shall not exceed 10pc 15kv,the magnitude of discharge is 1.5pc Pass
3 Load cycling test at
constant voltage
heating 5h,cooling 3h,heating
conductor to
heating 5h,cooling 3h,heating conductor
to 75℃
Judged by
following
tests
4 Impulse voltage test 95kv,10 positive and 10 negative
impulses, neither flashover nor
breakdown occurs
10 positive and 10 negative
impulses, neither flashover nor
breakdown occurs
Pass
5 4h power frequency
withstand voltage test
35kv,4h,neither flashover nor
breakdown occurs
35kv,4h,neither flashover nor breakdown
occurs
Pass

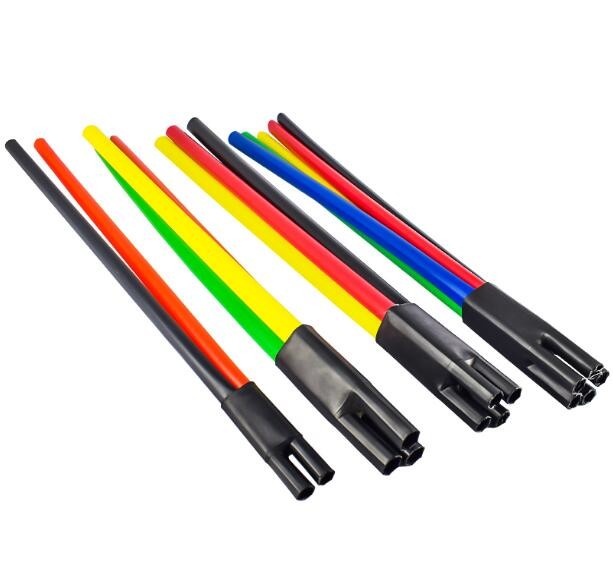

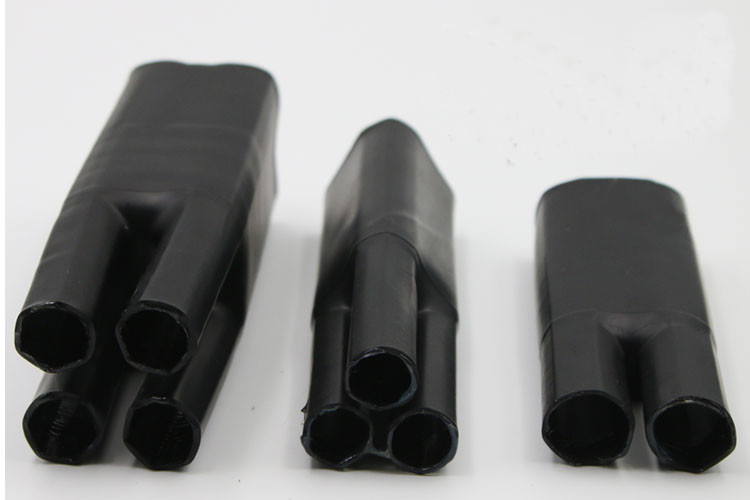

Black 1000mm Cable Thermal Shrinkable Terminal Head 0Black 1000mm Cable Thermal Shrinkable Terminal Head 1

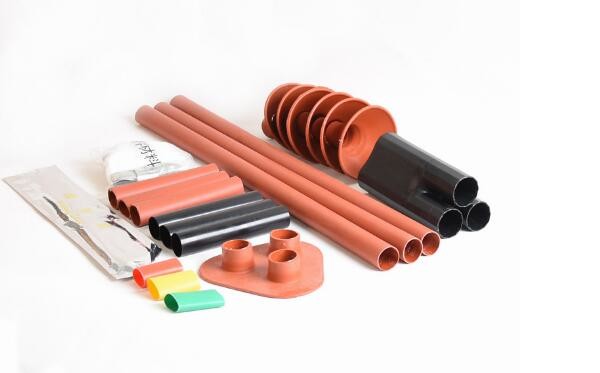

Black 1000mm Cable Thermal Shrinkable Terminal Head 2
