The installation of the heat shrinkable cable accessories must be a complete continuous construction, so as not to be affected with damp be affected with damp, 10 kv and below cable heat appears should be completed within four hours. C .

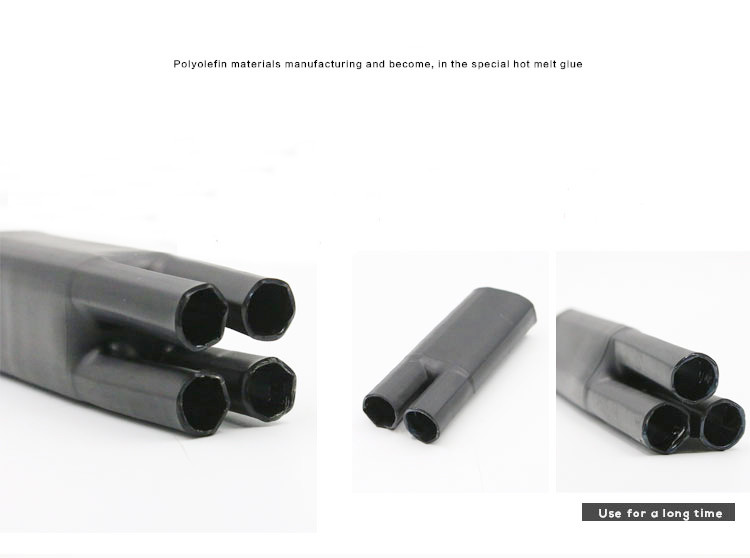

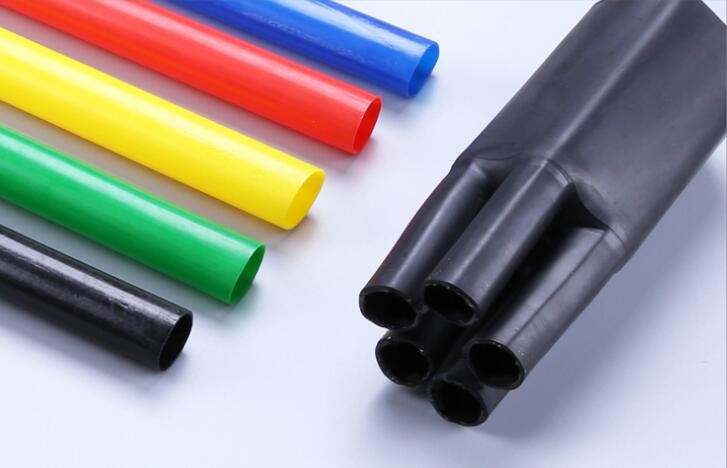

Type heat shrinkable power cable accessories has small volume, reliable performance, strong adaptability,
simple and easy for installation.
Applicable to power cable households inside and outside the terminal and intermediate links.

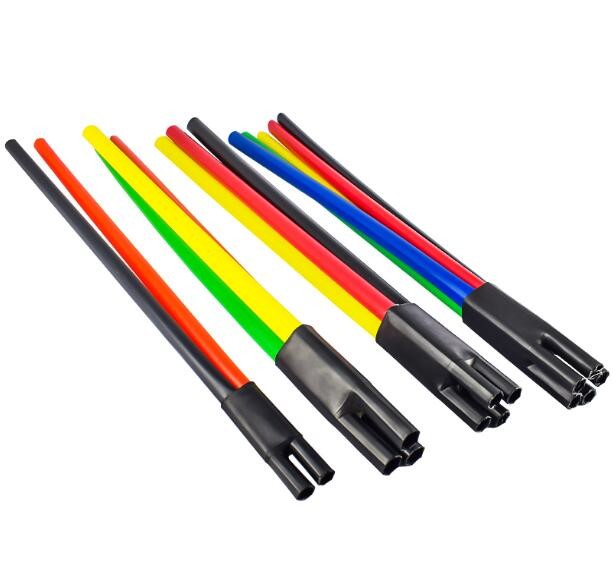

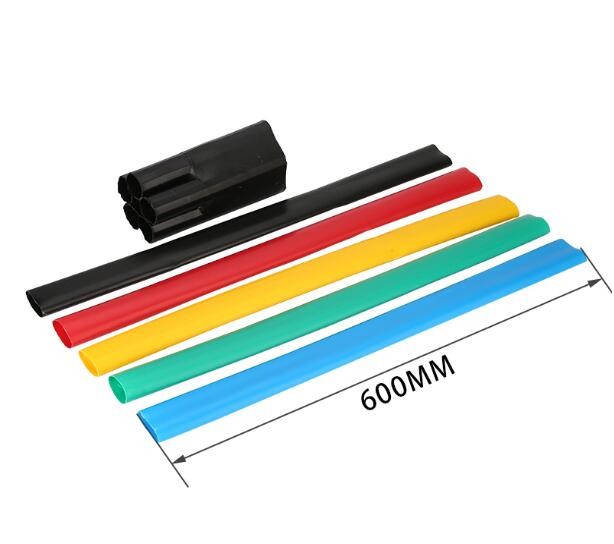

The end of the insulation tube is generally 650mm, but can also be extended to
800mm, 1000mm, 1200m.(according to the requirements of customers).
Before making cable head, need special tools to be complete, construction personnel
should be familiar with the use of various instruments, inspection, and matters needing attention.
The steel armor ground wire and copper screen ground wire separately,
making the cable pre-test more convenient and reasonable.
Product specification
| Product Name | Type | cable section(mm2) |
| 10kv three-core XLPE cable indoor termination | HCW-10/3.1 | 25-50 |
| HCW-10/3.2 | 70-120 | |
| HCW-10/3.3 | 150-240 | |
| HCW-10/3.4 | 300-500 | |
| 10kv three-core XLPE cable outdoor termination | HCW-10/3.1 | 25-50 |
| HCW-10/3.2 | 70-120 | |
| HCW-10/3.3 | 150-240 | |
| HCW-10/3.4 | 300-500 | |
| 10kv three-core PILC cable indoor termination | HCW-10/3.1 | 25-50 |
| HCW-10/3.2 | 70-120 | |
| HCW-10/3.3 | 150-240 | |
| 10kv three-core PILC cable outdoor termination | HCW-10/3.1 | 25-50 |
| HCW-10/3.2 | 70-120 | |
| HCW-10/3.3 | 150-240 |
Technical Index
|
Product Name 10KV heat and joint |
Sr. No. | Test Name | Standard Requirement | Result | Remarks |
| 1 | Power frequency withstand voltage test (wet) |
39kv,5min,neither flashover nor breakdown occurs |
39kv,5min,neither flashover nor breakdown occurs |
Pass | |
| 2 | Partial discharge test | 15kv,the magnitude of discharge shall not exceed 10pc | 15kv,the magnitude of discharge is 1.5pc | Pass | |
| 3 | Load cycling test at constant voltage |
heating 5h,cooling 3h,heating conductor to |
heating 5h,cooling 3h,heating conductor to 75℃ |
Judged by following tests |
|
| 4 | Impulse voltage test | 95kv,10 positive and 10 negative impulses, neither flashover nor breakdown occurs |
10 positive and 10 negative impulses, neither flashover nor breakdown occurs |
Pass | |
| 5 | 4h power frequency withstand voltage test |
35kv,4h,neither flashover nor breakdown occurs |
35kv,4h,neither flashover nor breakdown occurs |
Pass |
