Smooth Surface Forged Steel Double Riser Clamps
1set
MOQ
negotiation
Price
Smooth Surface Forged Steel Double Riser Clamps
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Heavy duty double riser clamps
High Light:

125MM Double Riser Clamps

,

101mm Double Riser Clamps

Payment & Shipping Terms
Packaging Details: The design and packaging is exquisite to ensure the product in good condition.
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000pcs Per Month
Specifications
Name: Heavy Duty Double Riser Clamps
Material: Steel,forged Steel,aluminum Alloy Or As Your Need Material
Advantage: Smooth Surface Long Service Life
Color: Black, White Or Silver Zinc , Hot Dip Galv
Installation: FTTH Cable Project
Type: Fastern Clamp,pole Clamp
Usage: To Connect The Fittings And Poles
Keyword: Cable Suspension Pole Clamp
Raw Material: Galvanized Steel
Package: Wooden Case
Product Description

Heavy Duty Double Riser Clamps



Description:



An embedded embrace hoop, it is the right and left halves join after embrace hoop involution, left and right half piece are in semicircle ring,



the hoop bending outward on both ends of the half circle, which formed an installation ears, whose character is:



the left piece at the end of the hoop as stated in the mounting ears open caulking groove, the corresponding, coupled with the right piece of hoop set



corresponding to the installed ear pin, right hoop end pin embedded left patches on the installed ear hoop end installation embedded groove on the ear.



The straight splint is used for tangent tower, it provides hanging point to ADSS optical optical cable.



The hold hoop fix the strain clamp and suspension clamp on the pole, and provide hanging point to ADSS optical cable erection.

Application:


Hold hoop is to use a material or so-called waling another material artifacts.



It belongs to the fasteners. Embrace hoop device by coupling board, wing, Rachel reinforcing plate, bolt and inner liner.



Hoop has a good variety of, embrace hoop cable, telephone pole embrace hoop, anchor hoop, messenger wire hoop,



stainless steel hoop are relatively common.



The fastening clamp could fix or connect different clamps on the steel tower or pole. It has pole type and tower type



according to the lines characteristics.



The tower type is metal splint, it fixes different clamps on the iron town without damage of iron tower strength. Pole type is hold hoop.



Tension splint is used for corner tower or terminal tower, it provides hangings point to ADSS optical cable erection.





Type Diameter of fixing locations Weight Devastating Load(kn)
HCW 070 125 101-125MM 2.3 70
HCW 070 150 126-150MM 2.5 70
HCW070 175 151-175MM 2.7 70
HCW 070 200 176-200MM 2.9 70
HCW 070 225 201-225MM 3.2 70
HCW 070 250 226-250MM 3.4 70
HCW 070 275 251-275MM 4.0 70
HCW 070 300 276-300MM 4.2 70
HCW 070 325 301-325MM 4.4 70

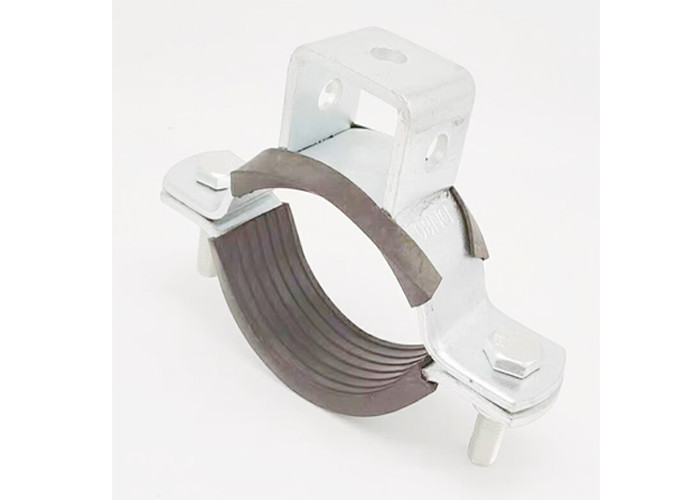

Smooth Surface Forged Steel Double Riser Clamps 0

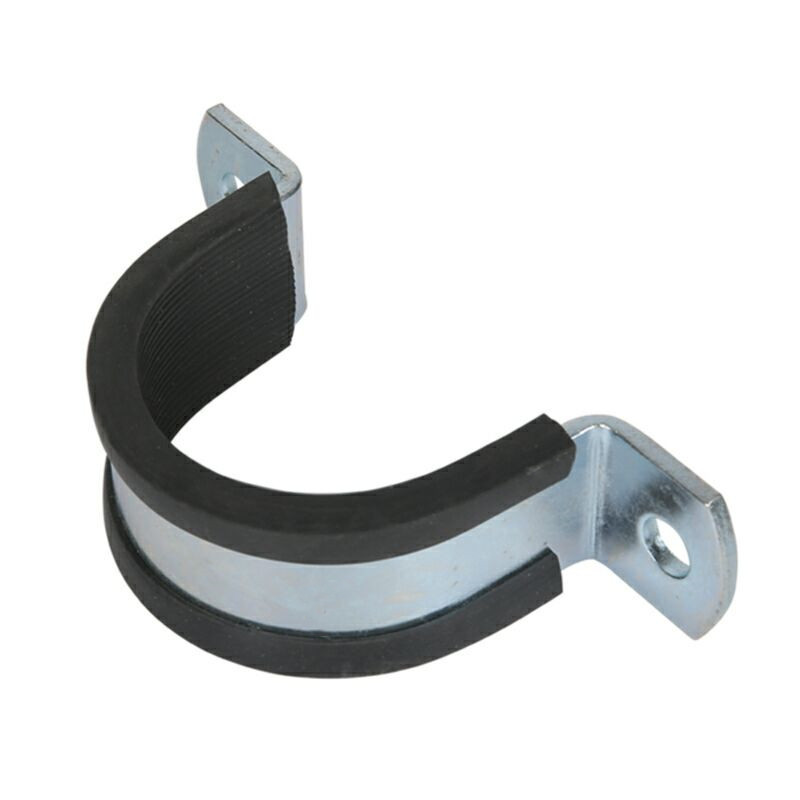

Smooth Surface Forged Steel Double Riser Clamps 1

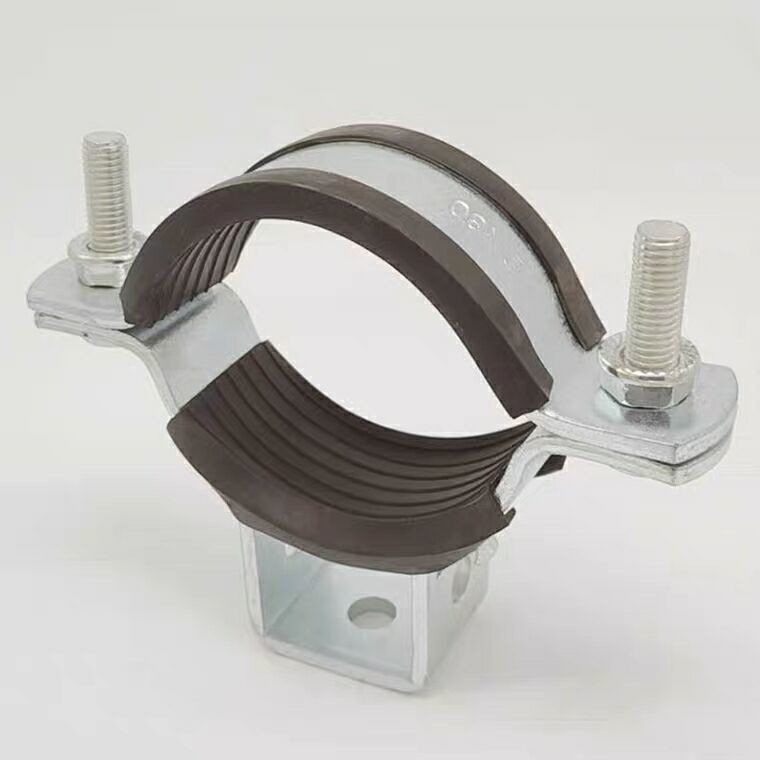

Smooth Surface Forged Steel Double Riser Clamps 2



Note: The color of the item may vary slightly due to photography and your own computer.

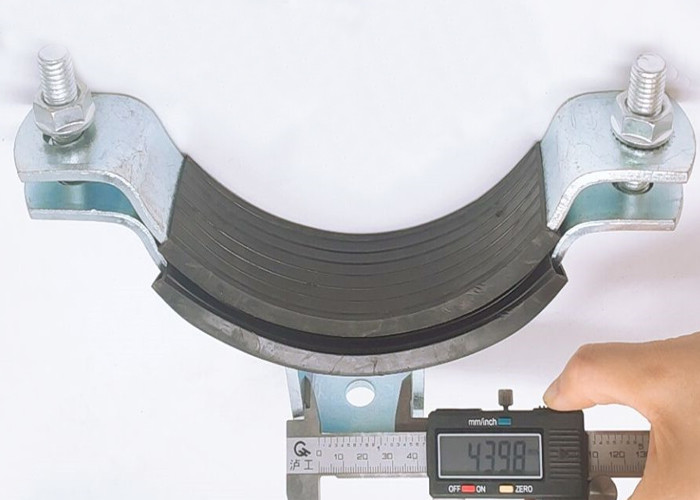

Smooth Surface Forged Steel Double Riser Clamps 3
