500 Foot Kevlar Armored Tactical Fiber Cable With Stainless Steel Connectors
1 sets, ( With or without Fo cable )
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: 500 foot FO Cable with Reel
High Light:

Armored Tactical Fiber Cable

,

Kevlar Tactical Fiber Cable

,

150 meter tac fiber

Payment & Shipping Terms

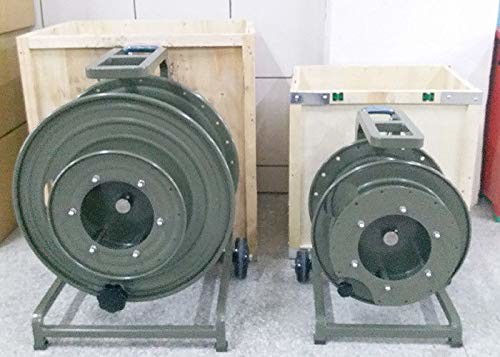

Packaging Details: 140*490*570 mm( unit size ) 1pcs pack in wooden box , Reel Capacity 150m
Payment Terms: Western Union, L/C, T/T
Supply Ability: 3000KM Per Week
Specifications
Cable Type: Outdoor FO Cable
Connectors: Customized,LC,FC,SC Connectors
Cable Purpose: Portable Media Usage
Reel Capacity: 150M (500 Foot)
Color: Army Green
Material: Mental
Dustcaps: Stainless Steel Dustcaps Are Durable And Waterproof
Unit Size: 140*490*570 Mm
Product Description

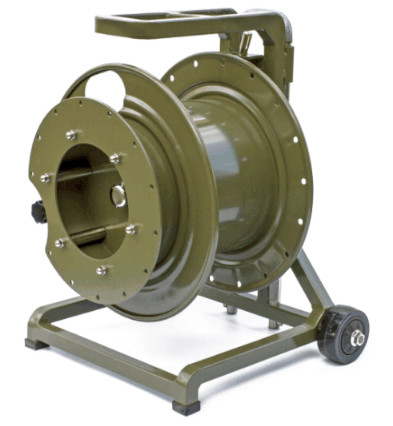

500 Foot (150 meter)Kevlar Armored Tactical Fiber Cable terminated with Stainless Steel Connectors



This reel features heavy duty, Also with a kevlar armored tactical fiber cable terminated with  connectors. Hicorpwell Magnum cable connectors are the very best choice for remote video production and field deployment. Hicorpwell magnum cable connectors provide excellent strength, durability and protection against dirt and damage during remote production.



Hicorpwell magnum cable connectors are complete precision machined stainless steel assemblies with screw-on water proof dust-caps. Magnum cable-end connectors are female preventing damage and contamination to the fragile internal fibers. The ultimate cable assembly available for repeat outdoor deployment and retrieval in harsh conditions.



        Main Features

  • Hicorpwell kevlar armored tactical fiber is up to 10 times stronger than ordinary fiber cables without compromising flexibility
  • Internal Fiber Contacts prevent contamination and damage to fiber ends
  • Stainless Steel Dustcaps are durable and waterproof
  • High impact and crush resistance
  • Stainless Steel Precision Machined for durability

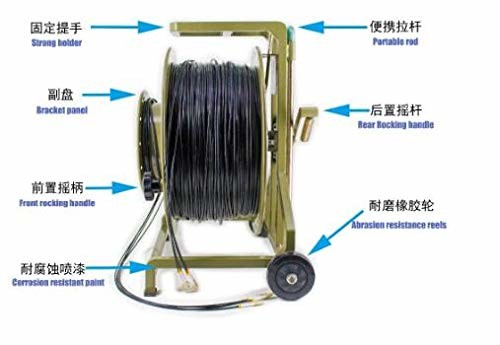

  • Handle Permanently attached to disc - Direct crank rewind.
  • Adjustable Cam-lock drag brake
  • Storage Drum extensions for breakout & easy access
  •
  • Applications :
  •
  • Remote Video Production & Broadcasting
  • Field deployment in abusive environments
  • Temporary installation of critical communications
    lines where quick retrieval and re-use is necessary
  • High Traffic areas
  • Security and Sensing applications
  • Installations in harsh environments available

Specifications&Performances



Cable
Count
ITEM CABLE
OD.mm(a)
S.S.T.
OD.mm(b)
T.B.O.F.
OD.mm(C)
4F 4.5MM Φ4.5±0.2 Φ2.4±0.02 Φ0.5
6F 4.5MM Φ4.5±0.2 Φ2.6±0.03 Φ0.5
8F 5.0MM Φ5.0±0.2 Φ2.8±0.05 Φ0.5
10F 5.0MM Φ5.0±0.25 Φ3.0±0.05 Φ0.5
12F 5.5MM Φ5.5±0.25 Φ3.2±0.05 Φ0.5
24F 7.0MM Φ7.0±0.3 Φ4.3±0.05 Φ0.5



Cable
Count
ITEM CABLE OD.
mm(a)
CABLE
WEIGHT
(kg)
MAXIMUM TENSILE BEND RADIUS* L.P.
N/100mm
S.T. L.T. Dyn. Sta.
4F 4.5MM Φ4.5±0.2 26.5 800 400 70 35 3000
6F 4.5MM Φ4.5±0.2 38.5 1000 500 100 50 3000
8F 5.0MM Φ5.0±0.2 33.0 1000 501 100 50 3000
10F 5.0MM Φ5.0±0.25 36.0 1000 502 120 60 3000
12F 5.5MM Φ5.5±0.25 39.0 1200 600 150 75 3000
24F 7.0MM Φ7.0±0.3 54.0 1500 750 170 85 3000



500 Foot Kevlar Armored Tactical Fiber Cable With Stainless Steel Connectors 0
