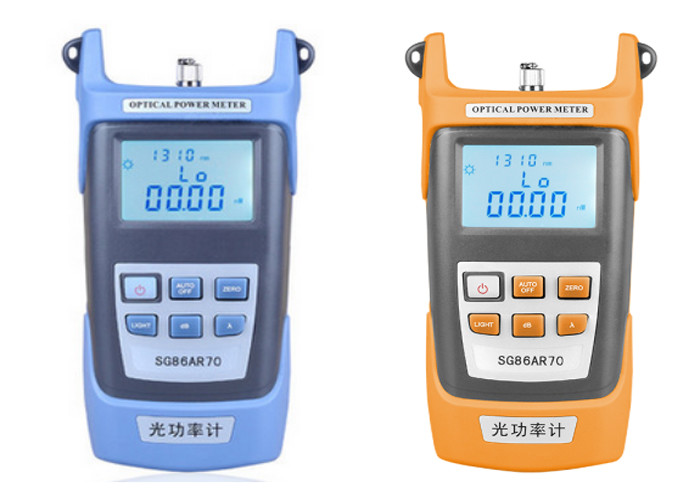

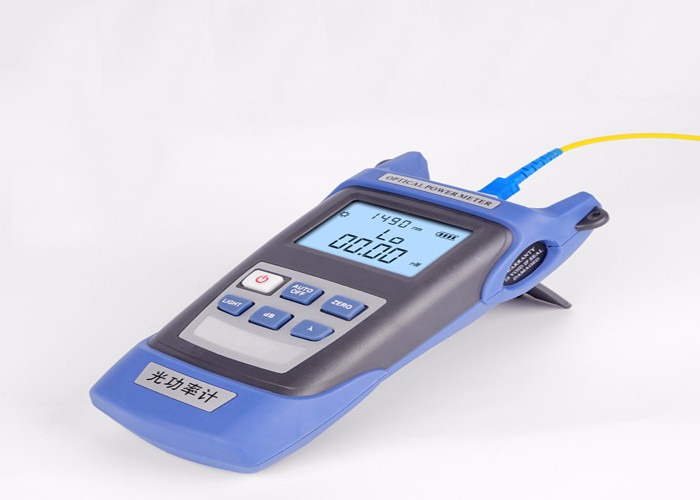

1MW,5MW,10MW,20MW,30MW Fiber Optical Power Meter
Handheld light power meter series, Light power meter red light pen integral
machine series products are mainly used for continuous optical signal power
measurement and optical fiber line breaking test.
Wavelength range 800～1700
Connector FC/SC/ST(ST optional )
Type of Detector InGaAs
Power Measurement Range -70~+3 or -50~+20

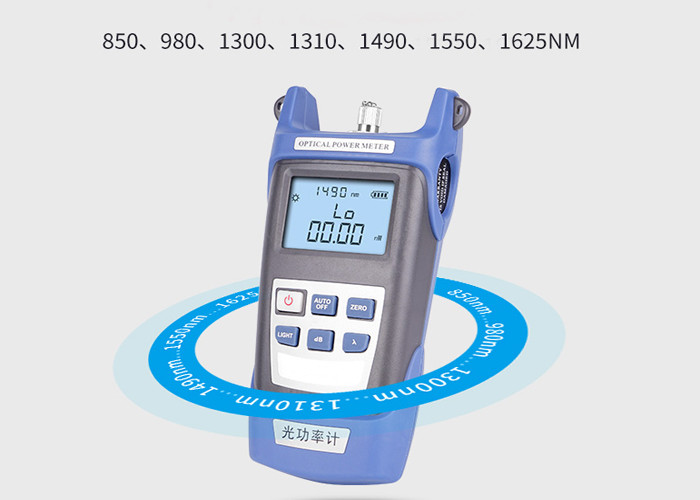

Standard Wavelength(nm) 850,980,1300,1310,1490,1550,1625
Display Resolution Linear indication:0.1% ,
Logarithmic indication: 0.01dBm
Working wavelength of red light ( integration machine series ) 650nm
Red power ( integration machine series )1MW,5MW,10MW,20MW,30MW( optional )
Working Temperature (℃) -10～+60
Storage Temperature (℃) -25～+70
Auto Power-off Time (min) 10
Battery Working Time (h) ≥48
Size (mm) 190 *100 *48 or 165*75*28
Power No. 5 battery *3 or rechargeable lithium battery
Weight (g) 300/400
1,Range of wavelength: a standard working wavelength that we specified:
min-入max, the optical power meter within this range can work well with all
indicators meeting requirements.
2,Power measurement range:the maximum power that the meter can
measure as per required indicators.
3,Uncertainty: the error between the test results and standard test results
over a standard optical power .
1,Support linear indicators (mW) and non-linear indicators (dB) showing at
the same time.
2,Support auto power-off
3,Support backlight ON/OFF
4,Support self calibration by user himself
5,Support SC, FC interface, ST interface (optional)
6,Charging unplugged working time 48 hours (optional)
7,Support portable battery / computer power supply (optional)

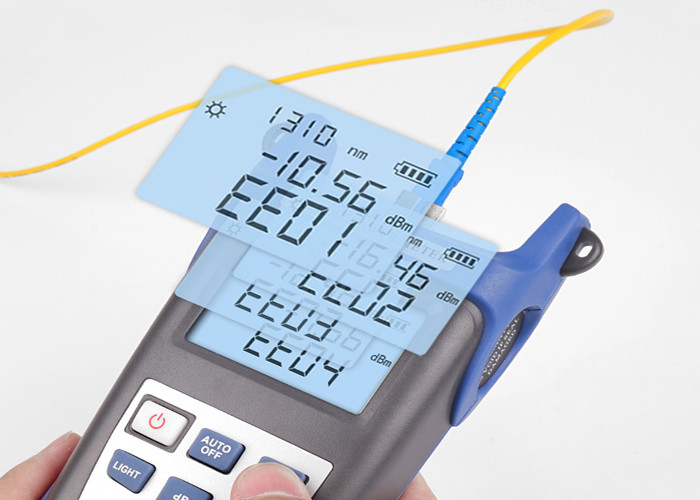

8,Support wavelength memory function
9,Support optical fiber work identification
10,Support red constant and flashing
(1 to 9 for the light power meter and integration machine series products,
a total of characteristics, Features of 10 integration machine series.)
Handheld light power meter series, They are controlled with singlechip microprocessor that is full function.
It is widely use in construction and maintenance of optical cable,optical communication and optical sensor
and optical CATV such areas.The design of the machine meets the requirement of ergonomics.
It adopts advanced cold mold technology which is beautiful and endurable.
The built-in detectors and lasers allow the product to be well protected.
Light power meter has a small shape, optional switch, background
light display and automatic shutdown function, wavelength memory function,
manual calibration, optical fiber work identification, wide testing range.
Light power meter red pen integration machine has automatic shutdown function,
two red light mode, three kinds of backlight mode, wavelength memory
function, optical fiber work identification, manual calibration, red light power,
wide testing range.
