AV6471 Fully Digitalized Optic Fiber Fusion Splicing Machine

1 pcs one pcs in lplastic box ,then in the carton
1500-4000 USD per set
AV6471 Fully Digitalized Optic Fiber Fusion Splicing Machine
Features Gallery Product Description Request A Quote
External Interface Capture / Splice Data Storage: Provide USB And VGA Ports
Operate Mode: Automatic ,semi-automatic ,manual
Cladding Diameter: 80-150um
Typical Splicing Time: 9 Second With Standard SM Fiber
Fiber Magnification: Vertical Dual Display, 304 Times Magnification; Level Of Dual Display, 152 Times Magnification
Power Supply: Built-in Lithium Battery 11.1V; Externaladapter,input: AC100-240V, Output: DC13.5V/4.5A
Size: 150(D)x150(w)x160(H)mm
Weight: 2.8KG Including Battery
Coating Diameter: 100-1000um
Fiber Aligning Method: Advanced PAS Alignment Mode
High Light:

AV6471 Fusion Splicing Machine


Optic Fiber Fusion Splicing Machine


fully digitalized ofc splicing machine

Basic Infomation
Place of Origin: China
Brand Name: HGW
Certification: ISO9001
Model Number: AV6471
Payment & Shipping Terms
Packaging Details: 129(W) x 195(D) x 99(H) mm (without protrusion) 1.2kg (without Battery), 1.3kg (with Battery BU-15)
Delivery Time: 5-8 days
Product Description
Optic Fiber Fusion Splicer AV6471 Fusion Splicing Machine Made in China
AV6471 is an optical fiber splicing device with a brand new design.
With powerful functions and super low splicing loss, it is highly competent for construction of trunk lines and FTTx.
Lightweight and compact, it is easy to use even in confined space.
The novel fiber imaging system makes the image clearer.
The real-time embeded Operating System provides a friendly man-machine interface and abundant functions.
The built-in large capacity Li-Ion battery can support long-time field work.
The real-time compensation system for temperature, humidity and air pressure has greatly enhanced the
device against unfavorable environment changes and thus guarantees its consistency of low loss splicing
in various environments.


- New fully-digitalized design;

- Small in size, lightweight: only 2.8kg with battery;

- Takes only 8 seconds for splicing,25 seconds for pyrocondensation;

- Can set automatic start of splicing or of pyrocondensation upon close of the cover;

- Simultaneous display of X/Y axis; zoom in up to 304 times original size;

- Real time discharging for adjustment; no need for further adjustment;

- Electrode has a long life; discharging times up to 4000;

- With USB and VGA ports;

- 5.7 inch digital high resolution LCD;

- Precise real-time display of remaining battery capacity;

- Built-in high capacity battery, which enables up to 220 times of splicing and heating;

Real-time Discharging Correction System

ο High performance discharging electrode
ο AC-DC mix discharging technique
ο Current feedback and environment compensation


HD Optical Image Acquisition System

ο HD aligner for double separate optical fibers
ο High performance CMOS sensor
ο Sensor pixels 640*480

Len Imaging Optical Fiber Aligning System

ο Fast evaluation of fiber profile
ο Precise fiber alignment
ο Precise evaluation of splicing loss


Typical Application:

AV6471 Fiber Splicer is mainly applied in fiber cable construction, fiber line maintenance, emergency repair of fiber cables and tests and production of optical fiber components.


Technical Parameter:

Indent Information:
Main body: AV6471 Fiber Splicer

Standard equipment:


Applicable SM, MM, DS, NZDS
Fiber cleaved length 8-16mm
Fiber diameter Cladding diameter: 80-150um; coating diameter: 100-1000um
Oprate mode Automatic ,semi-automatic ,manual
Fiber aligning method Advanced PAS alignment mode
Average Splice Loss 0.02dB(SM),0.01dB(MM), 0.04dB(DS), 0.04dB (NZDS)
Typical splicing time 9 second with standard SM fiber
Return loss >60dB
Fusion program 12 (templet), 188 (user)
Tube typical heating time 30 second
Protection sleeve length 60mm, 40mm
Storage of splice result 5000 results, 3 parameter per result
Tension test 2N
Fiber magnification Vertical dual display, 304 times magnification; level of dual display, 152 times magnification
Electrode life 4000
No. of splice/ heating with battery Typical 130 cycles
External interface provide USB and VGA ports
Display screen 5.7 inch 640*480 color LCD monitor
Power Supply Built-in lithium battery 11.1V; externaladapter,input: AC100-240V, output: DC13.5V/4.5A
Heat shrinkable tube 60mm,40mm and other series of tube
Operating condition 0-5000m above seal level, -10~50ºC, max wind velocity of 15m/s

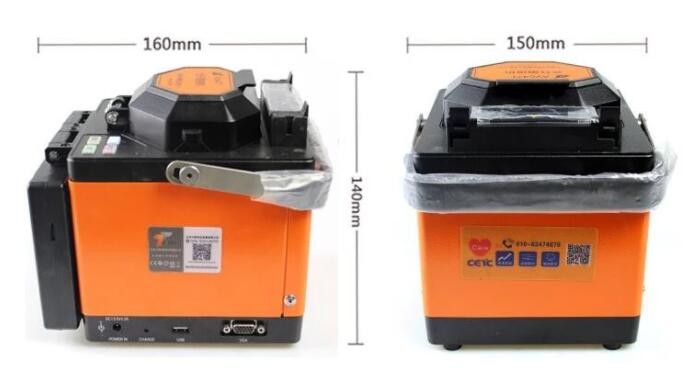

Dimension 150(D)x150(w)x160(H)mm
Weight 2.8KG including battery

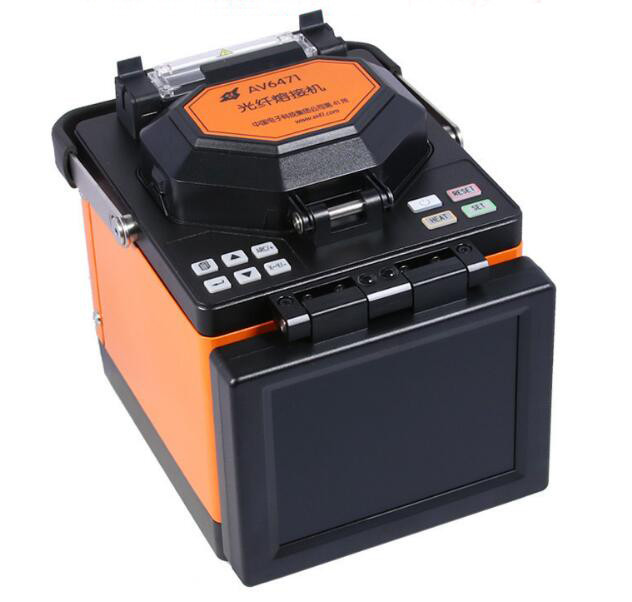

AV6471 Fully Digitalized Optic Fiber Fusion Splicing Machine 0

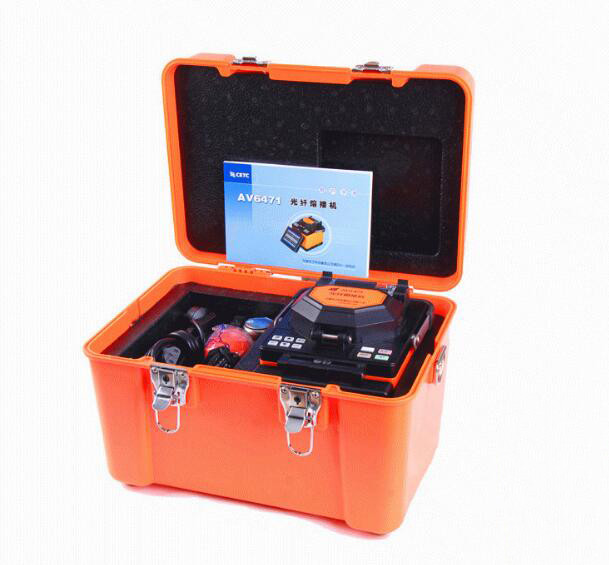

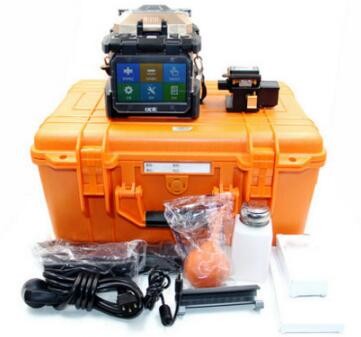

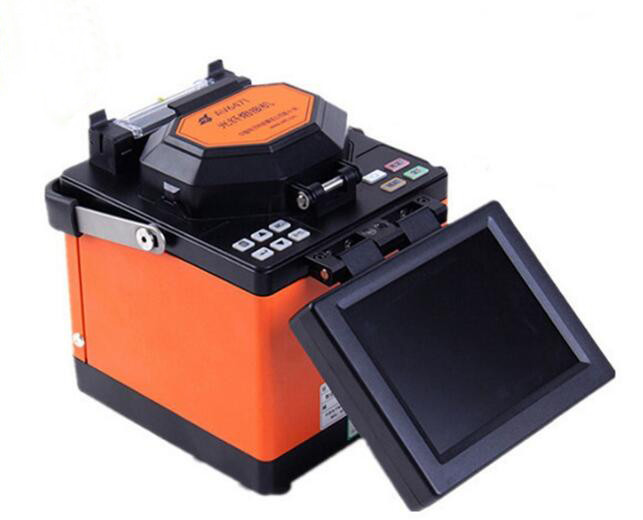

AV6471 Fully Digitalized Optic Fiber Fusion Splicing Machine 1AV6471 Fully Digitalized Optic Fiber Fusion Splicing Machine 2
