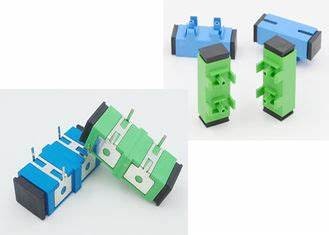

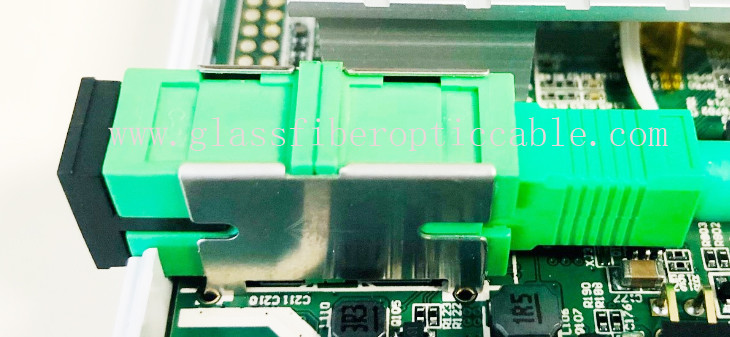

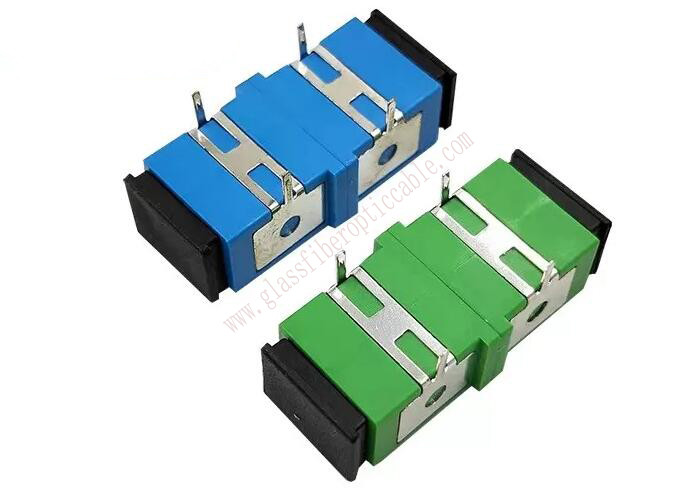

Fiber optic SC/APC UPC adapter for PCB circuit board
Description:
Fiber optic SC/APC adapter for PCB circuit board is a fiber optic connector on the activities of linking components.

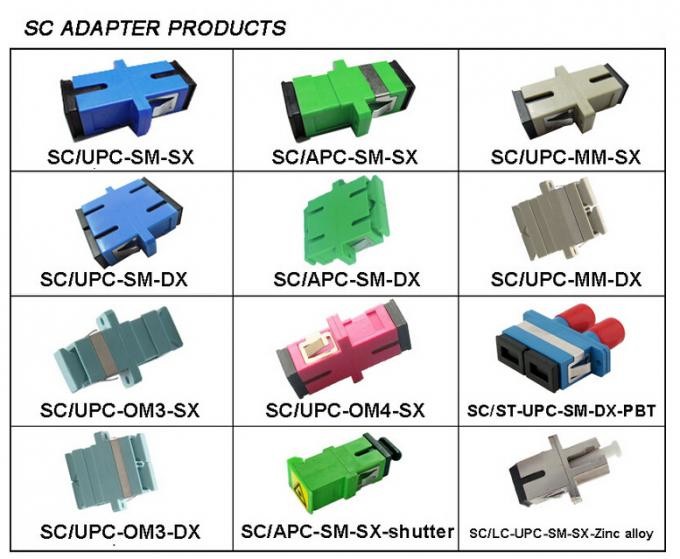

The complete series of products, including FC, SC, ST, LC, MTRJ, widely used in optical distribution frames (ODF),
and optical fiber communications equipment, instrumentation, performance is stable and reliable .
Fiber optic adapter is also called fiber optic coupler. It contains the interconnect sleeve,
that holds the two ferrules together.It is used to provide a cable to cable fiber connection.
Feature:
1, SC Type adapter

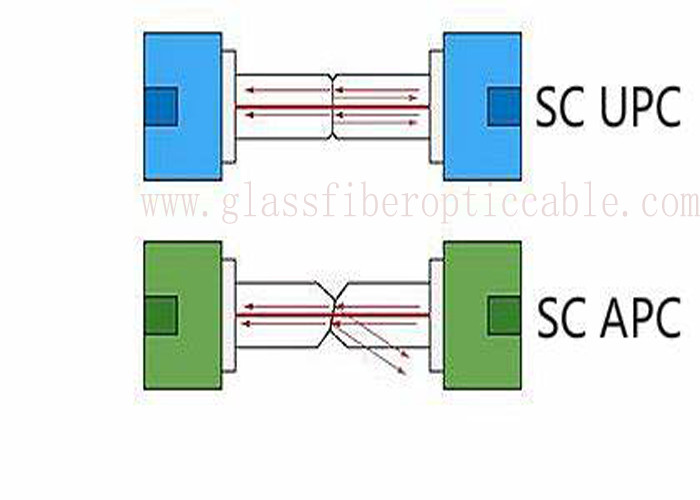

2, UPC or APC Optional
3, SM or MM Optional
4, With/Without flange Optional
5, Simplex , Duplex or Quad Optional
6, Zirconia Sleeve ,Compact design
7, Low insertional loss, High return loss
8, Comply with IEC, Telcordia GR 326 and JIS standard
Application:
CATV
Telecommunication networks
Test equipment
Local Area Networks(LANs)
Data processing networks
| Item | SC APC for PCB |
| Insertion loss | ≤0.2dB |
| Durability | ≤0.2dB after 1000cycles |
| Operating temperature | -25℃~75℃ |
| Storage temperature | -40℃~80℃ |
| Item | Insertion Loss | Mechanical resistance | Repeatability | Operating Temperature |
| SM/PC | ≤0.2dB | 200-600g | 0.2dB(1000times) | -40°C~+80°C |
| SM/APC | ≤0.2dB | 200-600g | 0.2dB(1000times) | -40°C ~+80°C |
| MM/PC | ≤0.3dB | 200-600g | 0.3dB(1000times) | -40°C ~+80°C |
