250um 900um Fast Connector FTTH Optical Fiber Mechanical Splice

10sets
MOQ
negotiation
Price
250um 900um Fast Connector FTTH Optical Fiber Mechanical Splice
Features Gallery Product Description Request A Quote
Features
Specifications
Type: 250um And 900um Communication Fast Connector Fusion Splice
Insertion Loss: Less Than 0.2 (max 0.4)
Paintcoat Color: Blue Or Green
Return Loss: ≥40dB
Tensile Strength: >50N
Application: 250um And 900um
Packages: PE Bag With Stick Label Or Blister Package
Leadtime: Within 5-7 Days Once Payment Confirmed
Highlight:

250um Optical Fiber Mechanical Splice

,

FTTH Optical Fiber Mechanical Splice

,

900um Fiber Mechanical Splice

Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: 250um and 900um Communication Fast Connector fusion splice
Payment & Shipping Terms
Packaging Details: Each fact connector into a plastic bag for assembly
Delivery Time: 15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 50000pcs Per Week
Product Description

250um And 900um Communication Fast Connector Fusion Splice FTTH Component Optical Fiber Mechanical Splice

Fiber splicing is a very important part of fiber optic communication technology.

There are two methods commonly used to splice optic fiber, they are fiber cold splicing and fiber fusing



splicing, both of them are effective but used in different applications, this article will explain them in



detail and clarify the difference between fiber cold splicing and fiber fusing splicing.



The fiber quick splicing connector is also called field assembly connector, means only use simple



splicing tools not fusion splicer to realize drop cable terminated. During assembly, no need glue



dispensing and polish.





Standard Splicing Point



According to quick splice connector’s fiber optic mechanical splice theory, at fiber splice point pre-



grinding spherical must elastic fit with the scene cut surface, matching fluid/oil is only a supporting role



to make up for agent, not be used as a permanent continuation dependent agent.



Standard pre-grinding spherical surface integrity, no adverse defects, and when on-site cutting surface



elastic fit, the splicing gap must be controlled within micron-scale, also with the help of matching fluid, it



will be better splicing performance and reduce splice loss.



Application
*Suitable for fiber random connection between fiber of φ0.25 mm and φ0.90 mm fiber ; take advantage of mature V-groove
*Technologies, suitable for single mode and multimode; No fixture, operation time less than 1 minute; better performance than the imported products.
*Applicable for φ0.25 mm &φ0.90 mm fiber
Specification

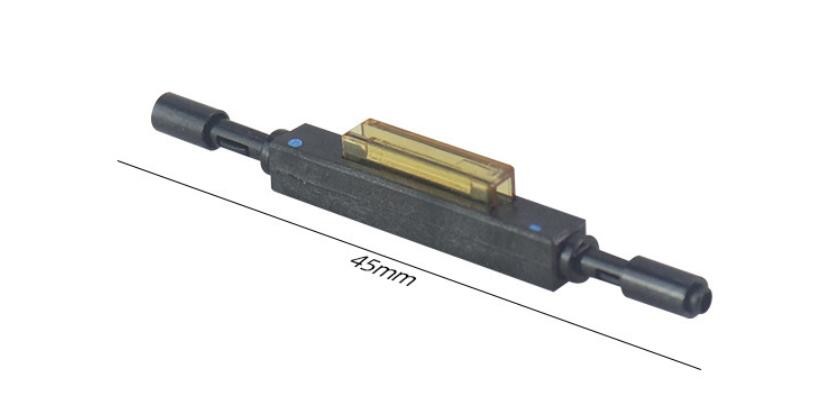

Size 45*4.0*4.7mm
Optical fiber diameter 125μm ( G652D & G657A )
Tight buffer diameter 250μm & 900μm
Applicable mode single &multimode Operation time about 10s (without fiber cut)
Insert loss ≤ 0. 15 dB(1310nm & 1490nm& 1550nm )
Return loss ≤ -50dB
Fastening strength of naked fiber >5 N ΔIL≤ 0.1dB
Clamping force of fiber with tight buffer >8 N ΔIL≤ 0.1dB
Using temperature -40- +75 ℃
Reusability (5 times) IL ≤ 0.2dB





Function: Colde shrink fiber optic cable splicing machine
Splitter type: customized
Splitter installation position: customized
Adaptor type: SC/FC/PC
color: black
Fiber Type Corning SMF-28TM,9/125µm
Splice tray quantity: 1pc
Cable: Drop cable, outdoor cable, standard indoor cable
Dimension customized
Optional accessory: Simplex SC/apc adapters
Installation method Wall mounted or pole mounted,outdoor or indoor use
Accessories plastic expansion screw,self-tapping screws,hose clamps,shrinkable sleeves,etc.

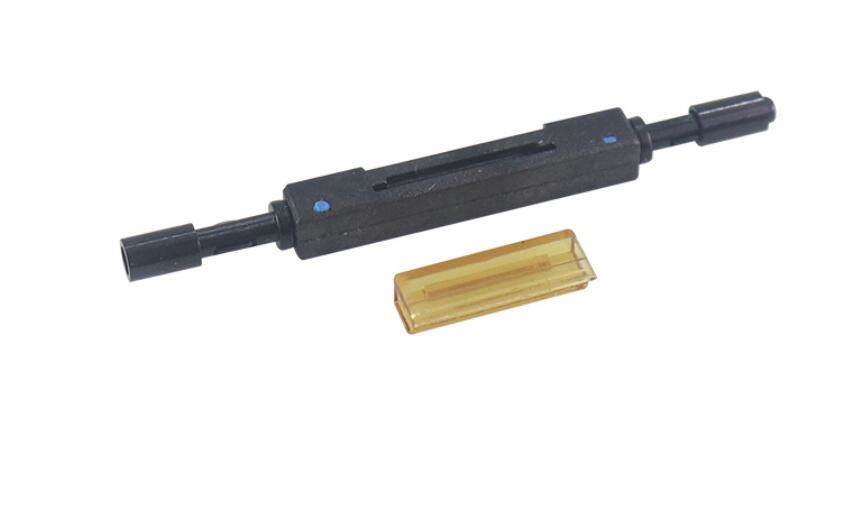

250um 900um Fast Connector FTTH Optical Fiber Mechanical Splice 0

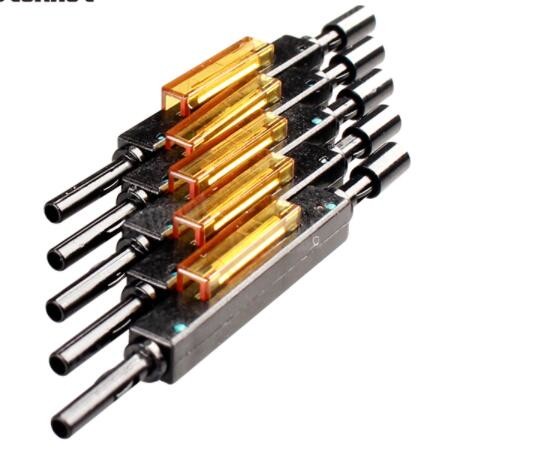

250um 900um Fast Connector FTTH Optical Fiber Mechanical Splice 1250um 900um Fast Connector FTTH Optical Fiber Mechanical Splice 2250um 900um Fast Connector FTTH Optical Fiber Mechanical Splice 3
