Jacket PU 4M Telephone Spiral Cable For Electronic Equipment

1set
MOQ
negotiation
Price
Jacket PU 4M Telephone Spiral Cable For Electronic Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
NameSpiral Cable Auto Spiral Wire: Spiral Cable Wire
Conductor Material: Copper
Length: 4M / 6M / 8M
Jacket: PU / TPU
Service: OEM ODM Accept
Insulation: PVC/PP/PE
Elastic Range: Elongation Length Up To 3.5-4 Times
Wire Specs:: 0.5mm2/0.75mm2
Max Payload: 35-70kg
Colour: Red, Black, Yellow, Blue, Nature Or As Your Require.
High Light:

Jacket PU Telephone Spiral Cable

,

Copper Conductor Telephone Spiral Cable

,

4M Telephone Spiral Cable

Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Telephone Spiral Cable Computer Spiral Wire Electronic Equipment Spiral Cable Auto Spiral Wire
Payment & Shipping Terms
Packaging Details: The design and packaging is exquisite to ensure the product in good condition.
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000pcs Per Month
Product Description

Telephone Spiral Cable Computer Spiral Wire Electronic Equipment Spiral Cable Auto Spiral Wire





In most areas of application, it is the optimal solution.
Chemical, mechanical, thermal and optical (different colors) excellent performance. Very good flexibility.


Technical Data:


Scope of application:



Used as gathering connection wire of the equipment circuit which needs to move back and forth or up-and-down, AC voltage 300/750V and below or DC voltage 1000V and below, such as telephone spiral cable, computer spiral wire, plug-in unit of electronic equipment spiral cable, auto spiral wire, trailer retractable cable, retractable connection wire, etc.


Product characteristics:



good flexibility and elasticity (extension length could be 4-5 times of the original). good cold resistance, flame retardance, oil and wear resistance. We can produce different kinds of spiral wires according to specific application conditions and requirements.


Conductor structure:

single strand or multi-strand copper wire (or tinned copper wire).


Insulation material:

may be PVC, polyethylene, polypropylene or called linked polyethylene, fluoroplastic, to meet the requirements of different conditions.


Sheathing material: generally use flexible polyurethane material.


Operating temperature:



according to the customer's requirements, cold residence: -65 degrees Celsius,



heat residence: 80 degrees Celsius, 105 degrees Celsius, 125 degrees Celsius.


Production range:



the standard cross-section: 0.08 to 6 mm2(special specifications can be produced according to customer's requirements ).


Core number:



1 to 37 (special specifications can be produced according to customer's requirements).


Wire length: no limitation.



Please try to provide us with detailed cable data in order that we could serve you better. If there is something you dont know, just let it be.



Cable data:



L0 (cable length):

L (working length):

L1(straight tail):

L2(straight tail):



Tail is vertical or parallel to coiled section:



D0 (OD of the coil):

D (Cable OD):

Insulation material:

Insulation color:



Conductor material:

Conductor structure:

Conductor cross section:



Core quantity:



Sheath material:

Sheath color:

Shielding method:



Electrical current:



Voltage:

Environment used:

Special requirement:

Quantity:

Your country:

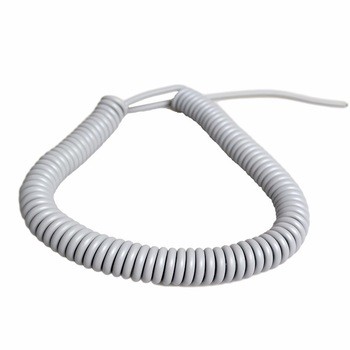

Jacket PU 4M Telephone Spiral Cable For Electronic Equipment 0

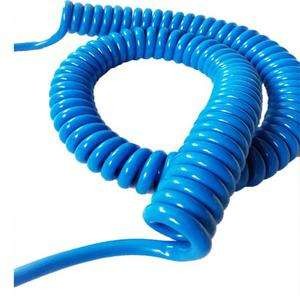

Jacket PU 4M Telephone Spiral Cable For Electronic Equipment 1
