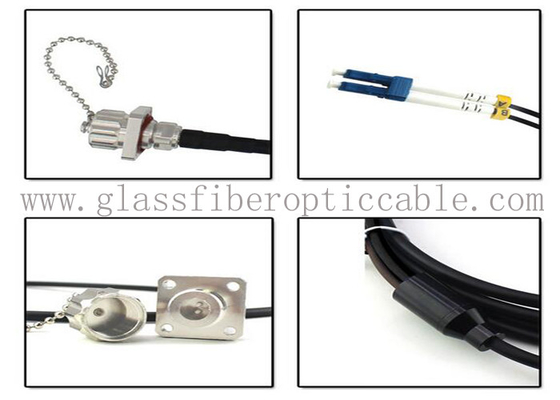

2 Core ODC Socket/Plug to LC TPU Connector for Fiber Optic Patch Cables in BBU RRU Base Station
ODC fiber optic connector can withstand harsh environmental conditions when being used in outdoor
applications. ODC connectors are designed for BBU RRU Base station in antenna(FTTA) applications.
They are used for data and telecommunications in mobile radio, process, utility and traffic automation.
ODC connector is next generation connectors for wireless base station application
These connectors meet the highest quality and robustness standards, and they offer reliability
and flexibility for outdoor applications. The odc connectors,together with the support optical cable,
are becoming the standard interface specified in 3G,4G and WiMax Base Station remote radios
and Fiber-to-the-Antenna applications.
The ODC Cable assemblies have passed testes like salt mist, vibration and shock and meet protection
They are well suited for Industrial and Aerospace and Defense applications.
Screwed locking mechanism, confirm the connection is long-term and reliable.
Guide structure, can be installed blindly, simply and quickly.
Airtight construction: Water proof, dust proof and corrosion resistant. Protection caps.
Compact appearance, robust and flexible.
Sealing design through wall.
Reduce the times of splicing.
Indoor and Outdoor applications
Outdoor & Military communication equipment connection.
Oil field, mine communication connection.
Far transmission wireless base station.
Video Surveillance system
Optical fiber sensor.
Railway signal control.
Fiber optic ODC connector assemblies are easy to install even in areas difficult to access and provide highest installation safety.
The high corrosion resistance convinced both naval and civil ship builders to use fiber optic ODC connector assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.
offers a range of mobile cabling systems and ODC connector assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc.and for temporary connections in case of natural hazards.
|Technology||Full ceramic ferrule and sleeve|
|Housing material||Nickel plated brass|
|Mechanical performance||ODC plug||≤1000 N tensile load≤30 N static side load|
|ODC socket||≤30 N tensile load|
|Installation torque force||min.1Nm||max.2Nm|
|Operating temperature||IEC 61300 – 2 – 22||-40℃ up to +85℃|
|Mating durability||1000 cycle|
|Ingress protection(mate)||IEC60529||Ip 68|
|Salt mist||IEC61300-2-26||30 days passed|
