Ferrules Loss Zirconia Ceramic Ferrules Fiber Optic System Components LC Ferrules 1.249mm SM
Description
Optical fiber ceramic core is in the core component of optical fiber connectors, it is a special ceramic parts with high precision, which is made through processing of ZrO2 and a series of other materials. It is widely used in optical fiber communication industry.
Features
Highly durable and stable material property under severe environmental conditions.
Few void/porosity for stable/reliable polishing.
High reflectivity
High quality and competitive price
good the coaxial tolerance and size accuracy;
properties of high intensity, the wear resistance, hight anti-aging
low insertion loss, high frequency of insert
Application
Telecommunication
CATV
LAN & WAN
Network
|
O.D.Size |
SC:2.499±0.0005 LC:1.249±0.0005 |
|
I.D.Size |
Customized |
|
Concentricity |
SM≤1.0um MM≤4.0um |
|
Length |
SM10.5±0.05 MM10.5±0.1 LC:6.4+0.1 |
|
Ferrule Type |
SC/LC/APC/Customized |
|
Material |
Zirconia Dioxide |
|
Endface |

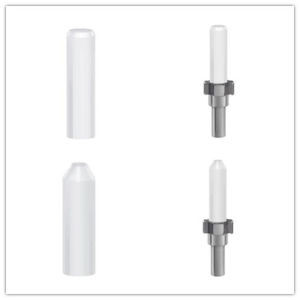

Conical type/ Step type/Plane type |
|
Color |
White |
|
Sample |
Free |
|
Type |
SC |
LC |
MU |
APC |
UNIT |
|
O.D.Size(mm) |
SM: 2.4999±0.0005 |
SM: 2.4999±0.0005 |
1.249±0.0005 |
2.499±0.0005 |
φd±0.0005 |
|
MM: 2.4999±0.001 |
MM: 1.249±0.001 |
||||
|
I.D.Size(mm) |
SM: d±0.001 |
SM: d±0.001 |
d±0.001 |
d±0.001 |
d±0.001 |
|
MM: d±0.002 |
MM: 0.126±0.004 |
||||
|
Concentricity(um) |
SM: ≤1.0 |
SM: ≤1.0 |
≤1.0 |
≤1.0 |
Customized |
|
MM: ≤4.0 |
MM: ≤4.0 |
||||
|
Length(mm) |
SM: 10.5±0.05 |
6.4+0.1 |
6.5±0.05 |
10.5±0.05 |
L±0.05 |
|
MM: 10.5±0.05 |
• High precision and Reliability .
• Excellent Strength, Endurability and Anti-aging performance .
• Various types of ferrules and End-faces .
Parking :Carton, Wooden box, or as per the customer’s requirements
Delivery time
In 15-25 days after get the deposit (including tooling making time).

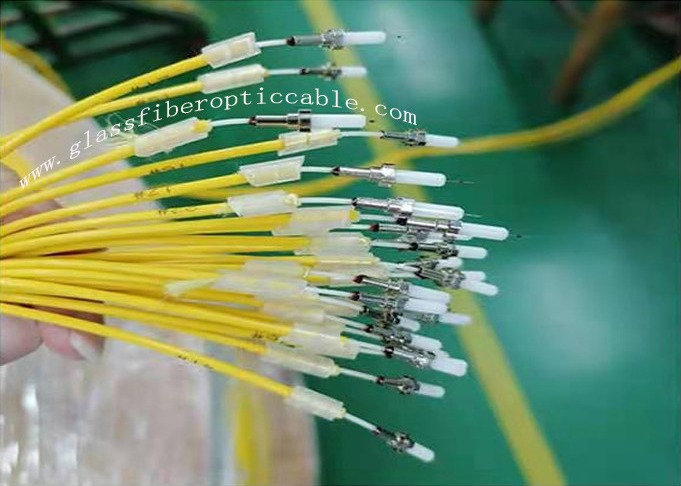

Ferrule is the most important component of fiber connectors and fiber patch cord .
It could be made of different materials, such as plastics, stainless steel, and ceramic (zirconia).
Most of the ferrules used in optical connectors are made of ceramic (Zirconia) material
due to some of the desirable properties they possess. Ceramic Ferrule include low insertion
loss required for optical transmission, remarkable strength, small elasticity coefficient,
easy control of product characteristics, and strong resistance to changes in environmental conditions.
The outer diameter (OD) Ceramic (Zirconia) Ferrule size for ST, FC and SC Fiber Connectors is φ2.5mm,
The OD Ceramic(Zirconia) Ferrule size for the MU and LC Fiber Connector Versions is φ1.25 mm.
The OD Ceramic (Zirconia) Ferrules size is precise with a tolerance level of ±0.0005 mm.
The inner diameter (ID) Ceramic Ferrules size has a precision of 0.001mm in concentricity
and 0.0005mm in eccentricity for the single mode ferrules used for optical communication components.
The OD Ceramic Ferrules size is precise with a tolerance level of ±0.001 mm.
The inner diameter (ID) Ceramic Ferrules size has a precision of 0.003mm in concentricity
and 0.004mm in eccentricity for the multimode ferrules used for LAN and/or SAN Applications.

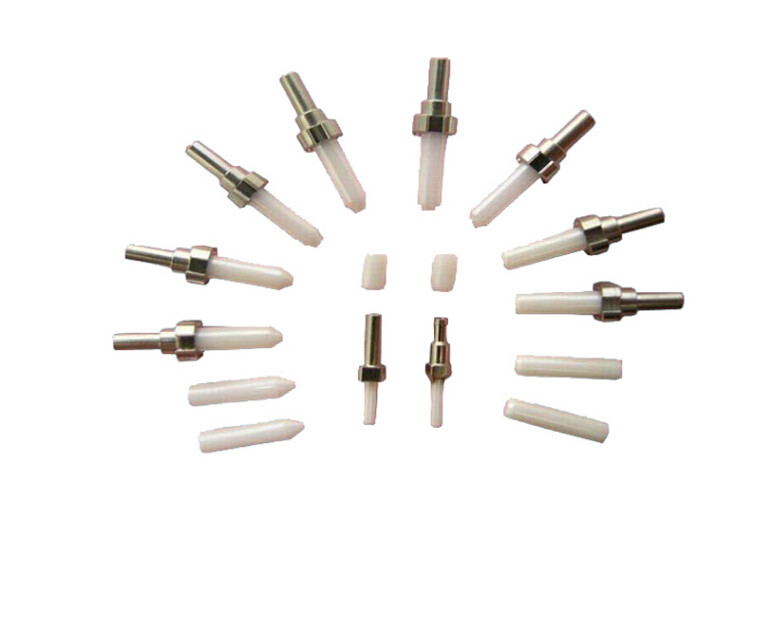

Hicorpwell provides wide variations of high precision single mode and multimode standard
Ceramic (Zirconia) ferrules with PC,UPC, APC, conical and step end-face for ST, SC, FC, LC, MU fiber connectors

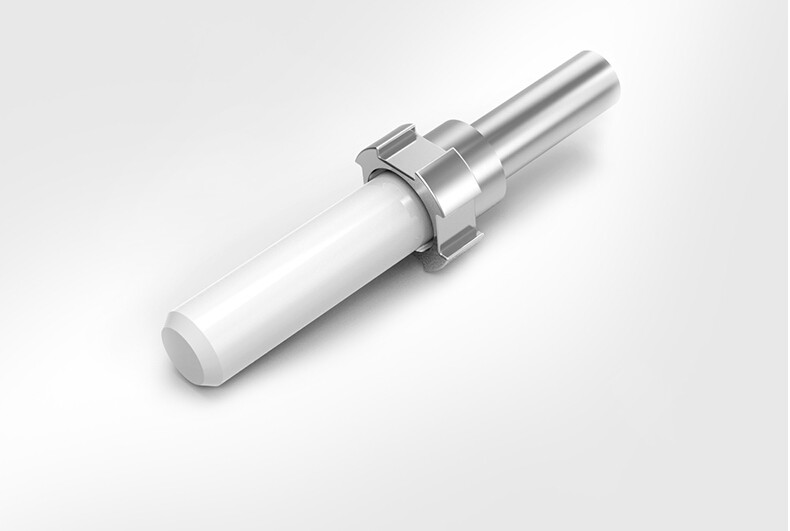

and patch cord, Standard ferrule assemblies with standard type SC, ST, MU flange are also available.
