RoHS Approved White RG6 Coaxial Cable For Video Applications
500M
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Coaxial Rg6
High Light:

RoHS Approved RG6 Coaxial Cable

,

White RG6 Coaxial Cable For Video

,

Flexible Rg6 Coaxial Cable For Video

Payment & Shipping Terms
Packaging Details: 2-4km/Reel Packaging Details: wooden drum or as per customer's request Delivery Detail: 5-15days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 3000KM Per Week
Specifications
Fiber Type: Cable Coaxial Rg6
Paintcoat Color: White
Cable Purpose: Outdoor Video Applications
Length: 15M/30M/50M/100M/150M/300M
Application: Outdoor Communication
Functions: Video Applications
Product Description



High Quality Best Price Coaxial Cable RG6 White Coaxial Cable for Video Applications

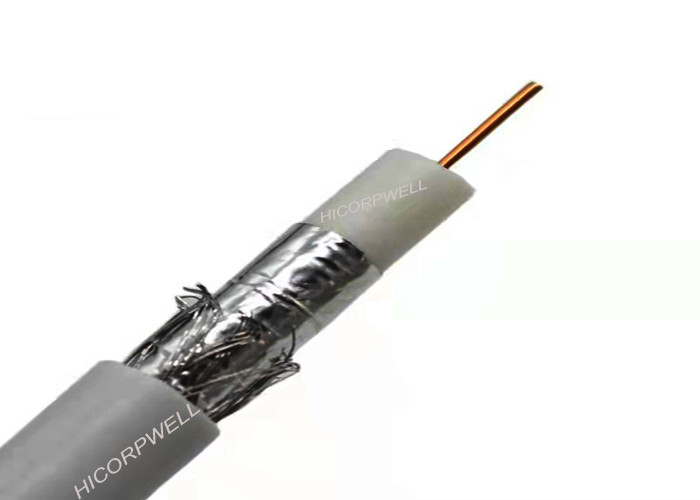

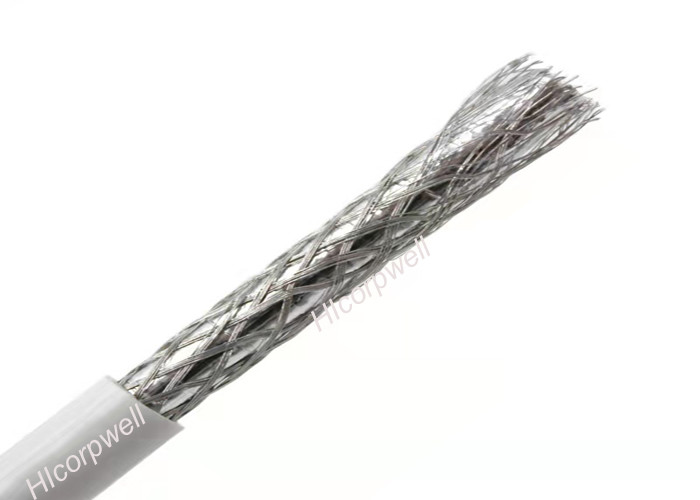

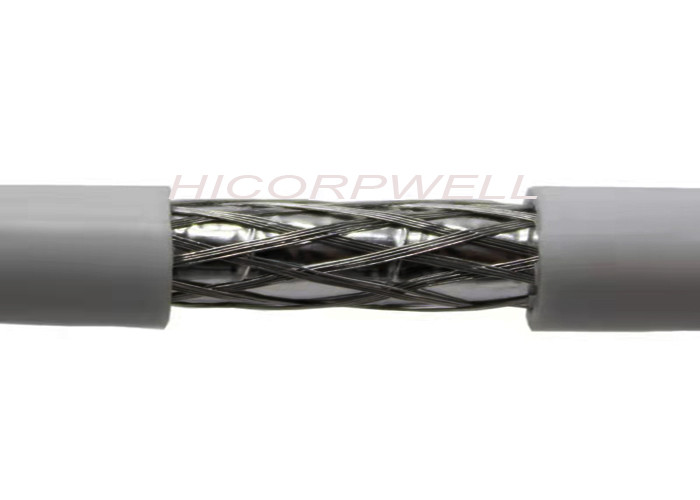

Coaxial cable conducts electrical signal using an inner conductor (usually a solid copper, stranded copper or copper plated steel wire)

surrounded by an insulating layer and all enclosed by a shield, typically one to four layers of woven metallic braid and metallic tape.



The advantage of coaxial design is that with differential mode, equal push-pull currents on the inner conductor,

and inside of the outer conductor, the signal's electric and magnetic fields are restricted to the dielectric,

with little leakage outside the shield.



Coaxial Digital Audio/Video Cable Provides a connection for TV's, VCR's, cable modems, satellite receivers,

off-air antennas & other coaxial F-Pin enabled devices.



Enjoy a crisp signal without electromagnetic & radio frequency interference. This cable is suitable for both indoor & outdoor use.

- Clear picture & sound without the hum/static of RF & EM interference

- Includes removable easy grip caps for effortless installs

- Plug-&-Play: Ready to use, once each end is connected to its respective port on a compatible device



Dimension:
Model 521 621 721 821 921 942
Item RG59 Rg58 Rg6 Rg7 Rg11 RG59+2C

Material of inner

conductor

CCS CCS CCS CCS CCS CCS

Diameter of inner

Conductor(mm)

0.81±0.02 19*0.2±0.01 1.00±0.02 1.29±0.02 1.63±0.02 0.81
Material of dielectric Foam PE Foam PE Foam PE Foam PE Foam PE Foam PE
Diameter of dielectric(mm) 3.66±0.15 2.95 4.57±0.01 5.72 7.11 3.7
Material of shield

ALfoil+AI

brading

BC/TC

brading

ALfoil+AI

brading

ALfoil+AI

brading

ALfoil+AI

brading

ALfoil+AI

brading

Diameter of 1st outer

conductor(mm)

3.90   4.90 5.90 7.52 3.9

Diameter of 2nd outer

conductor(mm)

4.12   5.00   7.80 4.3
Material of Jacket PVCPE PVCPE PVCPE PVCPE PVCPE PVCPE
Diameter of Jacket 6.30 4.95 6.90 8.10 10.16 11.5*6.00mm



Specification On RG6 Cable.pdf



Specifications:

1. All materials are RoHS approved

2.Competitive price

3.OEM service offered

4.We are able to supply various types of connector according to clients’ requirement

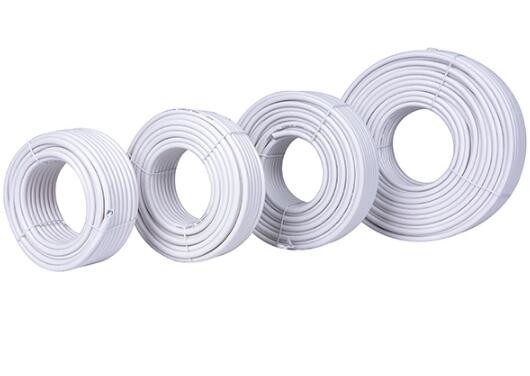

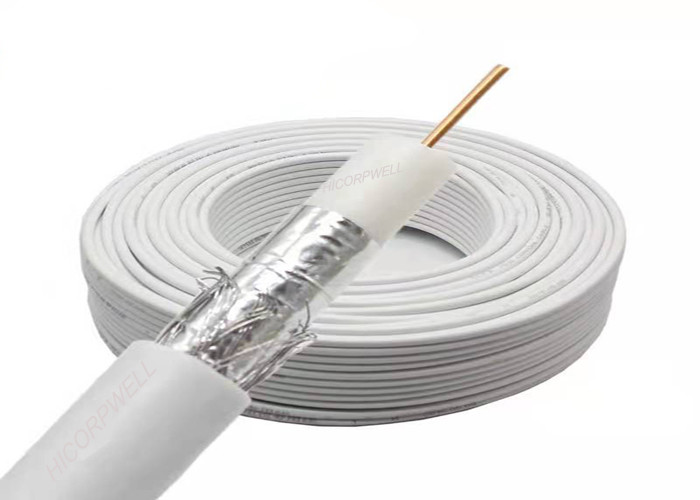

RoHS Approved White RG6 Coaxial Cable For Video Applications 0



RoHS Approved White RG6 Coaxial Cable For Video Applications 1

RoHS Approved White RG6 Coaxial Cable For Video Applications 2
