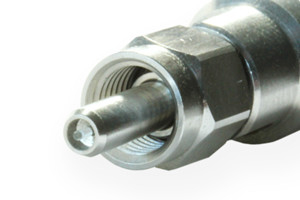

High Power SMA HP-SMA-905 & 905 Connector 230um To 1200um Medical Military Laser Fiber Optic Patch Cord
1set
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Hp-SMA905
High Light:

High Power Fiber HP-SMA905

,

Military Laser Fiber Optic Patch Cord

,

High Power SMA HP-SMA-905

Payment & Shipping Terms
Packaging Details: Polybag and Carton Package size: 25X20X38 cm
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000pcs Per Week
Specifications
Keyword: High Power Fiber HP-SMA905
MOQ: 10 Pcs
Leadtime: 5-10 Working Days
Packaging Details: Individual Package
Core: 100um/200um/300um/400um/600um/800um/1000um
Connector Type: HP-SMA905 Energy Fiber Connector
Core Material: Quartz
NA(Numerical Aperture ): 0.20-0.37
Fiber Type: IR/UV/FSI/DC/PM Fiber
Use: Medical Military Laser
Product Description



High Power SMA HP-SMA-905 & 905 Connector 230um to 1200um Medical Military Laser Fiber Optic Patch Cord Cable



Features

  • High precision stainless steel ferrule with counter bore "well tip"
  • Fiber centering sleeve for precision fiber alignment
  • Custom ID sizes up to 1200um
  • Hexagonal or round nut



Applications

  • Laser Surgery
  • Materials Processing
  • Spectrometers
  • Light detection and ranging (LIDAR)
  • Industrial Lasers


HP-SMA-905 Ordering Information

Part Number Description
HP905-H-230-A31

HP-SMA-905 Connector with Hex Nut,
well tip 230um ID ferrule, black 3mm boot
HP905-H-340-A31

HP-SMA-905 Connector with Hex Nut,
well tip 340um ID ferrule, black 3mm boot
HP905-H-445-A31

HP-SMA-905 Connector with Hex Nut,
well tip 445um ID ferrule, black 3mm boot
HP905-H-485-A31

HP-SMA-905 Connector with Hex Nut,
well tip 485um ID ferrule, black 3mm boot
HP905-H-635-A31

HP-SMA-905 Connector with Hex Nut,
well tip 635um ID ferrule, black 3mm boot
HP905-H-845-A31

HP-SMA-905 Connector with Hex Nut,
well tip 845um ID ferrule, black 3mm boot
HP905-H-1040-A31

HP-SMA-905 Connector with Hex Nut,
well tip 1040um ID ferrule, black 3mm boot

Custom ID sizes are available. Specify exact ferrule inside diameter when ordering connectors

High Power SMA HP-SMA-905 & 905 Connector 230um To 1200um Medical Military Laser Fiber Optic Patch Cord 0



High Power SMA HP-SMA-905 & 905 Connector 230um To 1200um Medical Military Laser Fiber Optic Patch Cord 1High Power SMA HP-SMA-905 & 905 Connector 230um To 1200um Medical Military Laser Fiber Optic Patch Cord 2High Power SMA HP-SMA-905 & 905 Connector 230um To 1200um Medical Military Laser Fiber Optic Patch Cord 3High Power SMA HP-SMA-905 & 905 Connector 230um To 1200um Medical Military Laser Fiber Optic Patch Cord 4
