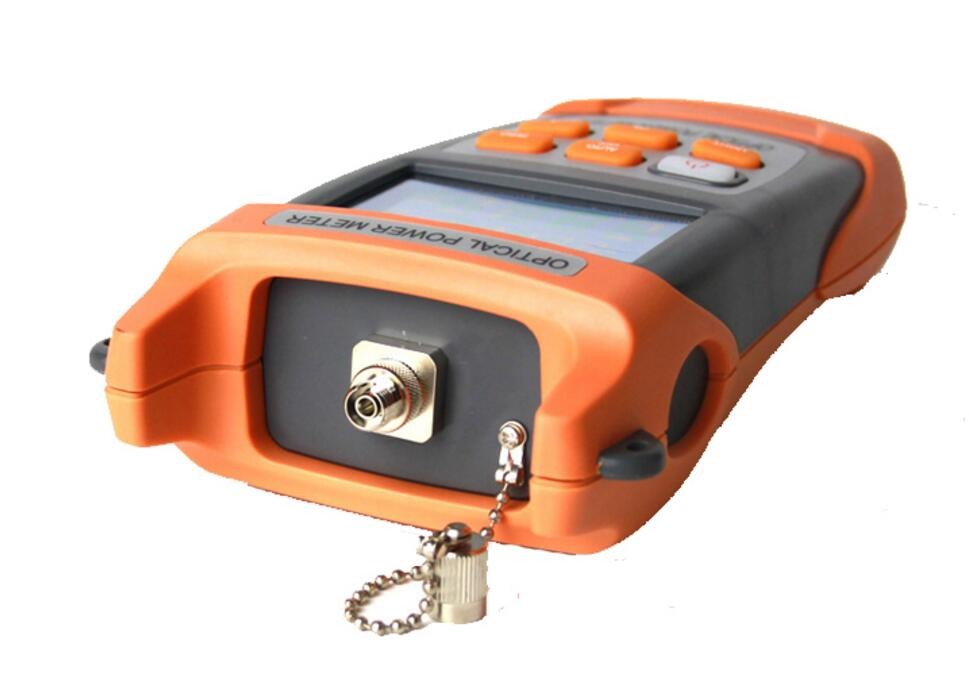

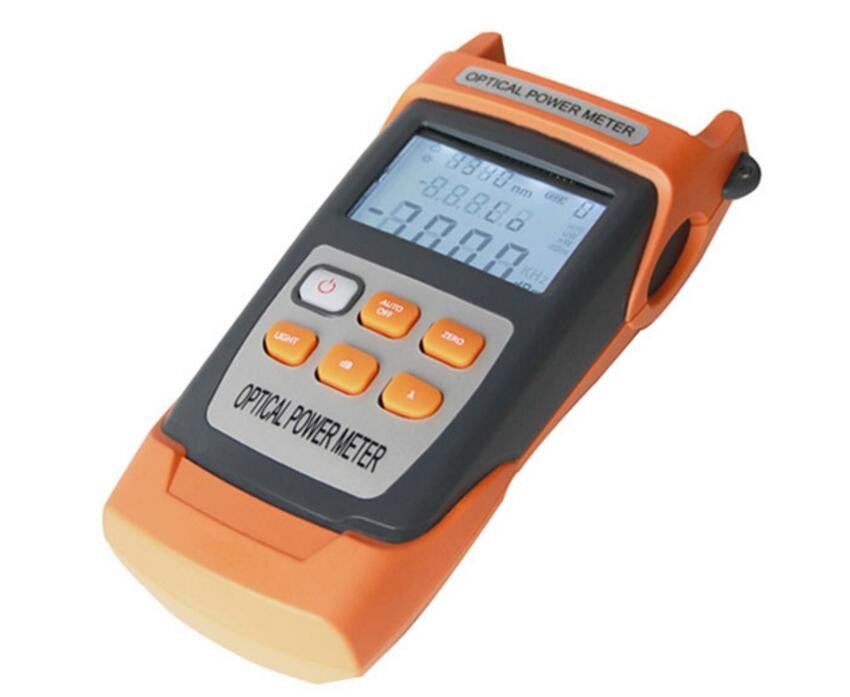

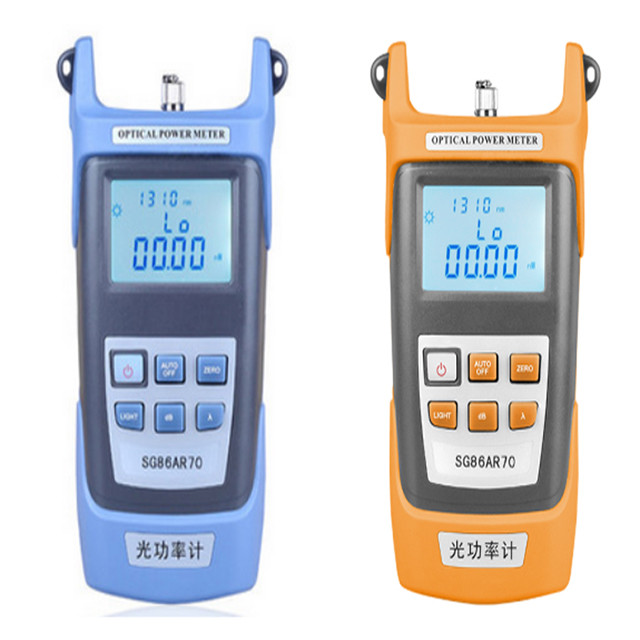

1MW 5MW 10MW 20MW 30MW Fiber Optical Power Meter
1 pcs
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC 60794-2-10/11
Model Number: Fiber optical power meter
High Light:

30MW Fiber Optical Power Meter

,

10MW Fiber Optical Power Meter

,

Optical Power Meter 20MW

Payment & Shipping Terms
Packaging Details: 190 *100 *48 MM or 165*75*28 MM
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000pcs Per Week
Specifications
Type: 1MW、5MW、10MW、20MW、30MW
Size: 190 *100 *48 MM Or 165*75*28 MM

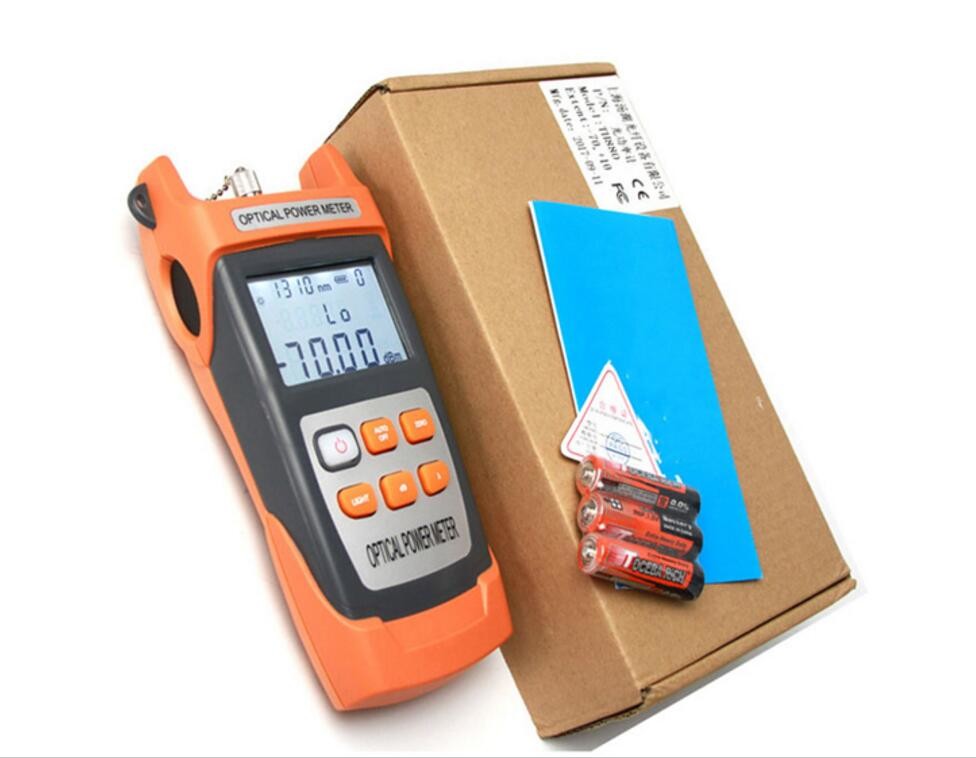

Package: Paper Box
Weight: 300/400g
Connector A: SC Connector
Connector B: FC Connector
Connector C: ST Connector (Option)
Wavelengths Types :: 850、980、1300、1310、1490、1550、1625
Product Description



MW 10MW 20MW 30MW Fiber Optical Power Meter with High Sensitivity Large Operation Scope



Product Description



Optical power meter refers to the instrument used to measure the absolute optical power or the relative loss of optical power through a fiber.



In the optical fiber system, the measurement of optical power is the most basic, very much like a multimeter in electronics; in optical fiber measurement, optical power meter is a heavy load table.



By measuring the absolute power of the transmitter or optical network, an optical power meter can evaluate the performance of the optical equipment.



When combined with a stable light source, the optical power meter can measure connection losses, test continuity, and help evaluate fiber link transmission quality.of fiber management.



Features

  • High sensitivity large operation scope
  • 0.01dB resolution, showing test value and wavelength at same time
  • Storage the reference value of the different wavelength, no data lost when power off
  • Battery supply, convenience for outside work

Performance Index

Item HCW--550 HCW-1007B
Detector Type InGaAs (300um) InGaAs(1mm)
Operation wavelength 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm
Measuring Range -70 ~ +10dBm
Absolute Accuracy ±0.2dB(in calibration conditions)
Linearity ±0.03dB(-50 ~ +0dBm)
Display mW, uW, nW, dBm, dB, dBr
Test wavelength, battery power out(LOB)
Resolution Log: 0.01dB, Linearity:0.1 ~ 1%
Output Mode FC/SC/ST are available(2.5mm)except LC
Data Storage EEPROM(Each wavelength storage one reference value)
Operation Temperature -15 ~ +60oC, 0% ~ 95%, RH (no condensing)
Storage Temperature -35 ~ +70oC, 0% ~ 95%, RH (no condensing)
Battery Two AA (No5)alkaline battery(continuous life time > 60hours)
Dimension&Weight 62×125×23 mm (not include protection glove), ≤100g(without battery)


1MW 5MW 10MW 20MW 30MW Fiber Optical Power Meter 0




1MW 5MW 10MW 20MW 30MW Fiber Optical Power Meter 11MW 5MW 10MW 20MW 30MW Fiber Optical Power Meter 2
