On Grid Solar And Diesel Generator Hybrid System 1KW 2KW 3KW 5KW 10KW Solar Hybrid Ups System

On Grid Solar And Diesel Generator Hybrid System 1KW 2KW 3KW 5KW 10KW Solar Hybrid Ups System
Features Gallery Product Description Request A Quote

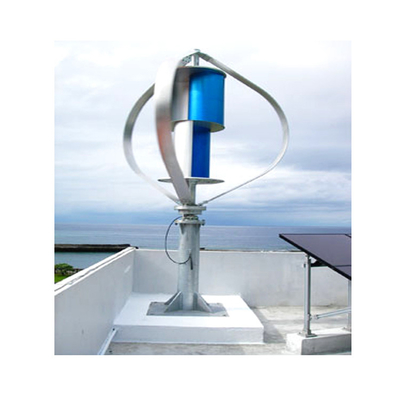

Name: Wind Generator Turbine
Blades Qty: 7 (3 Darrieusand 4 Savonius)
Color: Red & Blue, Sliver And Customrized
Advantage: Magnetic Levitation Technology
Start Wind Speed: 1m/s
Dimension (Height/Diameter): Ø2400mm / 1800mm
Net /Gross Weight: 100 Kg/150kg
Volume Weight: 320KG
Cut-off Wind Speed: 12m/s
Survival Wind Speed: 60m/s
High Light:

On Grid Solar Generator Hybrid System


10KW Solar Hybrid Ups System


5KW Solar Hybrid Ups System

Basic Infomation
Place of Origin: China
Certification: IEC & Intetek
Model Number: 1KW 2KW 3KW 5KW  Wind Turbine
Payment & Shipping Terms
Packaging Details: Plywood Package 3 CBM
Delivery Time: 15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 200pcs Per Month
Product Description
On Grid Solar And Diesel Generator Hybrid System 1KW 2KW 3KW 5KW 10KW Solar Hybrid Ups System

1. Quick Detail:


  •  Name : Maglev Wind Generator 1kw ,2kw ,3kw  5kw ,10kw
  •  Application :Generator in strong windy area for residential electricity
  •  Color: Red & blue, Sliver and customrized


2. Description:



Maglev Wind Generator For Off-Grid Lamp System can guarantee the lamp will work for 10 hours each day and ceaselessly work for 5 days in rainy weather. The totally configure will be based on the local weather situation, like the annual average wind speed and solar energy. And all the configuration will meet clients’ demand.


  1.  Also if the local situation is not good enough, then we can design that the lamp will work with full power in the first 5 hours, and work with half-power in the other 5 hours to achieve saving energy.
  2.  The height of the post and the LED streetlamp will be chosen according to the local standards of streetlight.
  3.  The battery can be placed inside the post to be easy to replace battery every four years or buried under ground to guarantee the span life of battery in ultimate weather.
  4.  The maglev wind turbine, 1m/s start-up wind speed, 2.5m/s cut-in wind speed, with high power efficiency, no noise, less vibration and balance structure, darrieus and savonieus design, classic appearance, with best capability to survive in over-high wind speed, like hurricane and typhoon, with span life 20 years; Lead Acid Gel battery, span life for 4 years; Mono Solar panel, power efficiency 17%; LED streetlamp, 60-120W, Good performance, IP65, with heat-dissipation patents; post with cold galvanizing and F-C white paint.
  5.  The whole system is not just a functional natural energy illumination, but also a beautiful scene for streetlight.


3. Applications:



Maglev Wind Generator 300w for Lamp Use  is ideal for both of residential as well as off grid power systems.


The unit provides a durable, reliable, and fully customized hybrid solution to Telecoms repeaters , Charging Station by Solar and wind and also very suitable for power supply to home.



4. Main Features:



  •  Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
  •  Turbine construction is resistant to gale 60m/s (132MPH)
  •  Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel


  •  Magnetic levitation technology
  •  Independent of the direction of the wind
  •  Startup at low wind speed of 1m/s
  •  Higher efficiency compared to traditional HAWT
  •  Works even in turbulence
  •  Visually pleasing appearance
  •  Design life: at least 20 years


NO Equipment Name Model No /Specification Unit Qty
1 Wind generator HCW -1KW ,2KW ,3KW  Pcs 1
2 Wind & solar hybrid controller 3KW -48V (Max 2000W Solar) Set 1
3 Pole 6 M Pcs 1
4 Solar panel 30W monocrystal silicion Pcs 6
5 Battery 12V/100AH Pcs 24
6 Main cables 3 X 4mm2 + 2 X 4mm2 M
