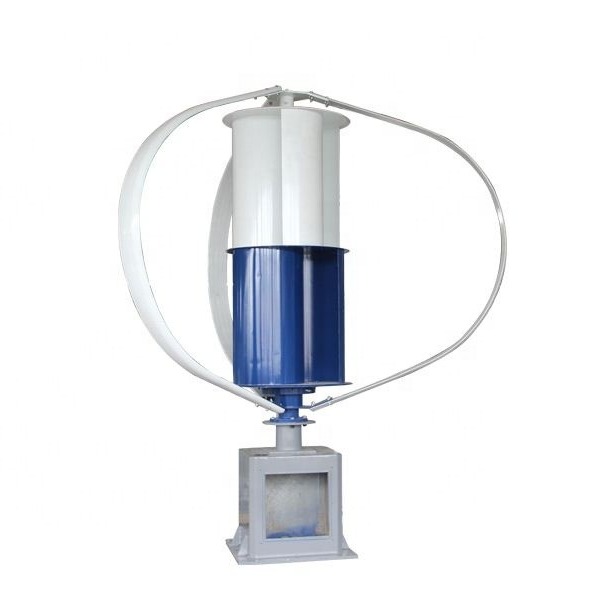

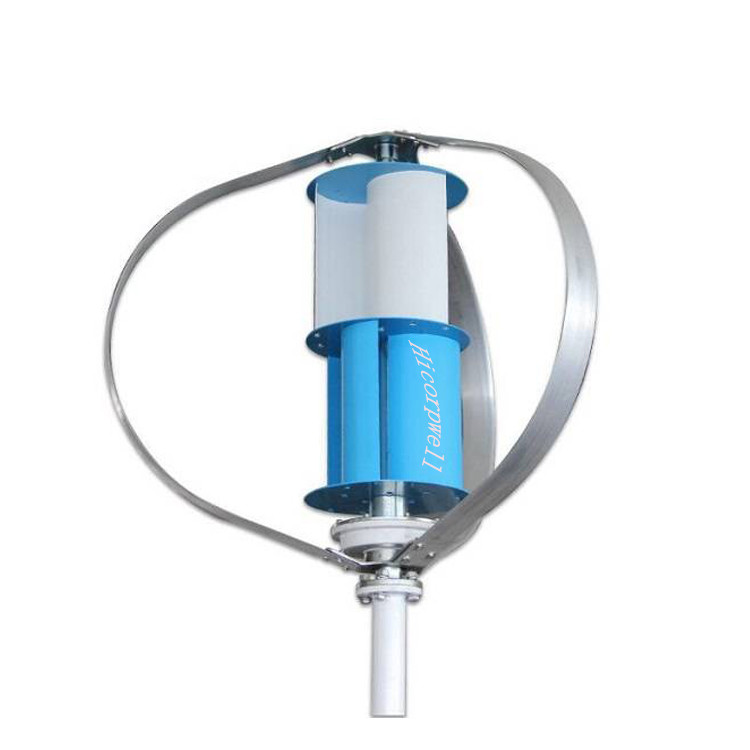

On Grid Maglev Vertical Axis Wind Turbine 600W / 1000W 48V /3000W 48V / 96V

1set
MOQ
negotiation
Price
On Grid Maglev Vertical Axis Wind Turbine 600W / 1000W 48V /3000W 48V / 96V
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 1000W 48V Wind Generator Turbine
Blades Qty: 7 (3 Darrieusand 4 Savonius)
Color: Red & Blue, Sliver And Customrized
Advantage: Magnetic Levitation Technology
Start Wind Speed: 1m/s
Dimension (Height/Diameter): Ø1940mm / 1350mm
Net /Gross Weight: 104 Kg/ 142kg
Volume Weight: 120KG
Cut-off Wind Speed: 15m/s
Survival Wind Speed: 60m/s
Highlight:

Utility Design wind generator turbine

,

Maglev Vertical Axis Wind Turbine

,

3000W 48V wind generator turbine

Basic Infomation
Place of Origin: China
Brand Name: HICORPWELL
Certification: IEC & Intetek
Model Number: 1000W 48V Wind Turbine
Payment & Shipping Terms
Packaging Details: Plywood Package 0.88 CBM
Delivery Time: 15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100pcs Per Month
Product Description
600W / 1000W 48V /3000W-48V/96V Advantages Of Maglev Vertical Axis Wind Turbine On-Grid Utility Design



1. Quick Detail:



  •  Name : Maglev Wind Generator 1000w-48V
  •  Application :Generator in strong windy area for residential electricity
  •  Color: Red & blue, Sliver and customrized



2. Description:





This 1000W vertical axis maglev wind turbines undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.





3. Applications:

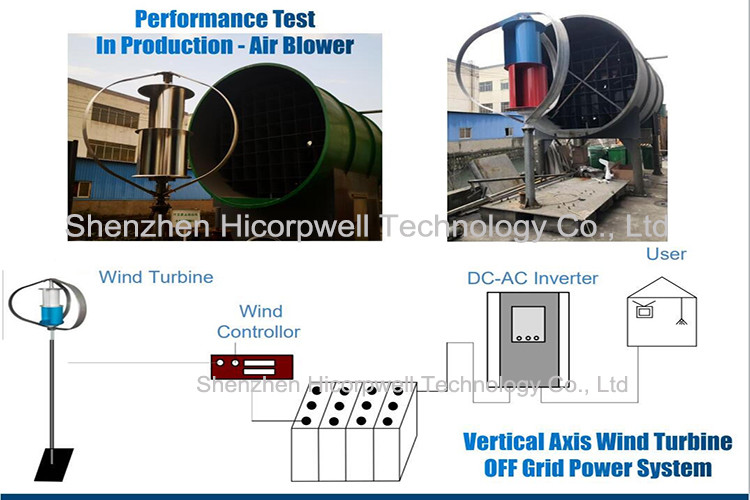

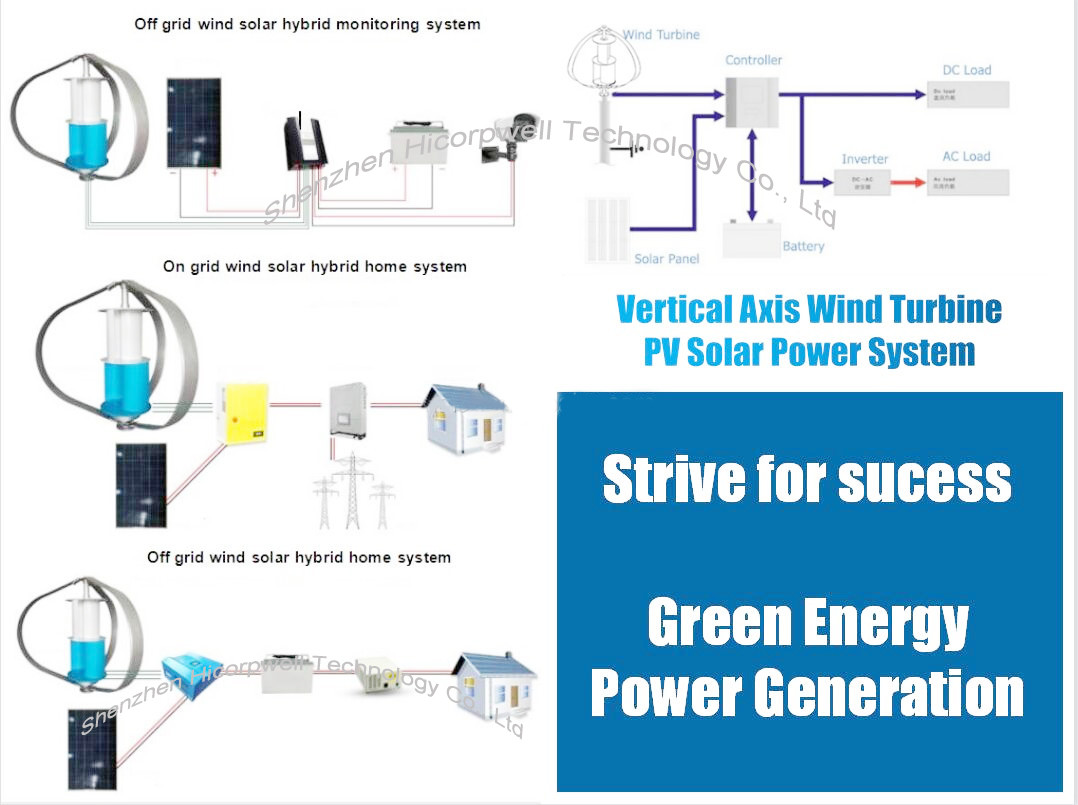

Maglev Wind Generator 1000w for Home Use  is ideal for both of residential and commercial applications as well as off grid and on grid power systems.The unit provides a durable, reliable, and fully customized hybrid solution to Telecoms repeaters , Charging Station by Solar and wind and also very suitable for power supply to home.





4. Main Features:



  •  Magnetic levitation technology
  •  Independent of the direction of the wind
  •  Startup at low wind speed of 1m/s
  •
  •  Higher efficiency compared to traditional HAWT
  •  Works even in turbulence
  •  Visually pleasing appearance
  •  Design life: at least 20 years
  •
  •  Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
  •  the Tower Foundation of Maglev Wind Generator 600w for the Antarctic area
  •
  •  Turbine construction is resistant to gale 60m/s (132MPH)
  •  Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel



5. Specifications







 MAGLEV WIND TURBINE TECHNICAL SPECIFICATION



Model Number



WT-300



WT-400



WT-600



WT-1000



WT-3000Ⅰ



WT-3000Ⅱ



Rated Power



300W



400W



600W



1000W



3000W



3000W



Size

(Diameter/Height)



1240/1080MM 1240/1120MM 1470/1260MM 1940/1350MM 3500/3370MM 4600/4200MM

Turbine Weight



27KG 29KG 65KG 180KG 510KG 790KG

Blades Material



Aluminum Alloy

Blades Number



3

Start-up

Wind Speed



1.3m/s 1.3m/s 1.3m/s 1.5m/s 2m/s 3m/s

Cut-in

Wind Speed



2.7m/s 2.7m/s 3m/s 3.5m/s 3.5m/s 4m/s

Rated Wind Speed



12m/s 12m/s 13m/s 13m/s 13m/s 13m/s

Cut Out

Wind Speed



15m/s

Survival

Wind Speed



65m/s 65m/s 50m/s 50m/s 50m/s 50m/s

Generator Type



3 phase AC

Controller

Output Voltage





12V or 24V



12V or 24V



24V or 48V



48V



48V



96V

Controller

Output Current





<20Amp



<20Amp



<30Amp



<50Amp



<130Amp



<130Amp

Controller

Brake System





Over speed automatic 3 phase short-circuit braking

Ambient Temperature





. -40~50 ℃
