Pipetting Device for The Multi Channel Pipette Plunger Injector and Assembly
1 pcs
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenzhen
Brand Name: Hicorpwell
Certification: CCC & CE
Model Number: HCW-PPD 121
High Light:

Plunger Injector Pipetting Device

,

Pipetting Device for Plunger Injector

Payment & Shipping Terms
Packaging Details: overall dimension (mm):124*12*12 mm
Delivery Time: 10-15working days
Payment Terms: T/T, L/C
Supply Ability: 100 sets Per Week
Specifications
Displacement: 2ml
Stroke(mm): 25.5
Life Cycle: 1 Million
Accuracy Of Suction And Drainage: 1.0%
Repeatability Of Suction And Drainage: 0.5%
Working PreSsure: 0.2Mpa
Chamber Material: Stainless Steel
Overall Dimension (mm): 124*12*12
Product Description

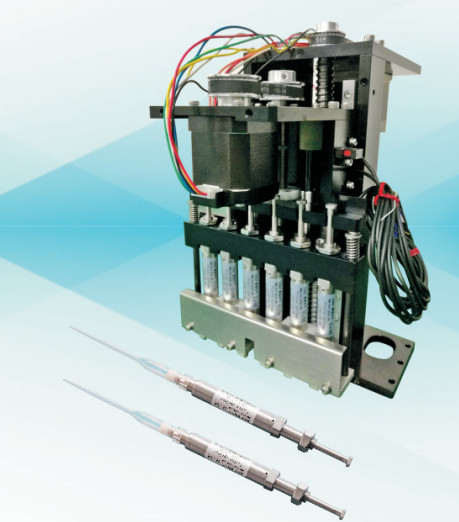

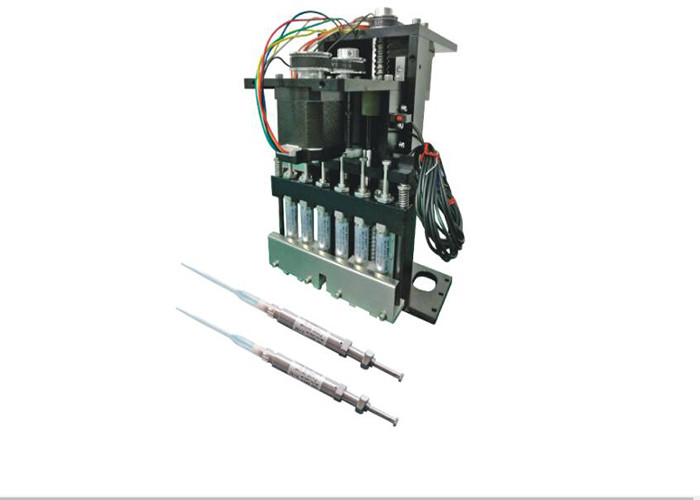

Pipetting Device for The Multi-Channel Pipette Plunger Injector and Assembly



Product characteristics:



1. A set of driving mechanism drives the multi-channel pipette to achieve multi-channel simultaneous suction and drainage,

   which has high control accuracy and long service life.

2. The disposable Tip can be inserted directly to avoid carrying pollution caused by traditional sampling methods.

3. Multi-channel integration, saving space and cost;



Application :



It is mainly used in occasions where multi-channel fluids need to be controlled simultaneously, such as automatic chemiluminescence analyzer.



Displacement 2ml
Stroke (mm) 25.5
Life cycle 1 million
Accuracy of suction and drainage 1.0%
Repeatability of suction and drainage 0.5%
Working preSsure 0.2MPa
Chamber material Stainless steel
Number of interface 1
overall dimension (mm) 124*12*12



Remark:



Note 1: In addition to the above specifications, the current nominal specifications can be customized.

Note 2: The nominal accuracy of suction and drainage is measured at a range of no less than 10% displacement.

Note 3: The nominal repetition accuracy is measured at a range of no less than 10% displacement.
