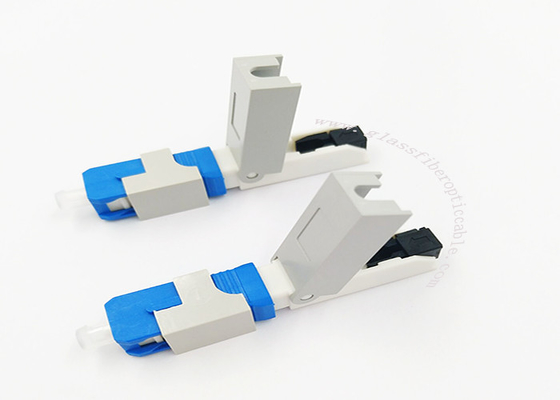

FTTH Fiber Optical Fast Connector SC Field Installable Fiber Connector

FTTH Fiber Optical Fast Connector SC Field Installable Fiber Connector
Features Gallery Product Description Request A Quote
Type: SC Fast Connector
Insertion Loss: Less Than 0.2 (max 0.4)
Paintcoat Color: Blue Or Green
Return Loss: ≥40dB
Drop Cable: 2.0*3.0mm
Tensile Strength: >50N
High Light:

Fiber Optic SC Fast Connector


Ftth Fast SC Connector


Ftth Fiber Optic Quick Connector

Basic Infomation
Place of Origin: China
Certification: IEC 60794-2-10/11
Model Number: SC Fast Connector
Payment & Shipping Terms
Packaging Details: Each fact connector into a plastic bag for SC Fast assembly
Delivery Time: 15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000pcs Per Week
Product Description

FTTH Fiber Optical Fast Connector SC Field Installable Fiber Connector


Product Description

       SC Fast Connector is widely used in FTTH (Fiber to The Home) access optical Networks.


Designed for simple and fast field termination of single fibers without polishing, adhesives or curing process.

SC Fast Connector uses Sumitomo’s guide rail technology to help position the fiber into the connector,

achieving a positive connection in the mechanical splice and low insertion loss termination.

For Singlemode Fiber, Multimode Fiber, as well as choose to 900 microns, 3.0mm and the introduction of cable 8 font type.

Fasten design makes installation easy. For connecting to other devices and fiber optic panels.

No electrical power supply is needed to assemble the Fast SC Connector.




- No special tools needed when installed
- Without any gluing and polishing process
- Can be made on-site without splicing connectors
- Only 30 seconds needed to learn the process of installation
- Good high temperature performance and good sealing
- Easy installation, quick and fast in the assembly field
- High return loss and low insertion loss



- Distribution Frames & Patch Panels
- Fiber Optic Patch Cord & Pigtail
- Telecommunication Networks
- Data Processing Networks
- FTTH (Fiber To The Home)
- Local Area Network (LAN)
- Test Equipment.




Fiber Optic Cable 2.0mmx3.0mm
Plug Type SC/PC
Fiber diameter 0.125mm
Fiber Mode Singlemode
Insertion Loss <0.5dB (typical 0.2dB)
Return Loss <50dB
Tensile strength <20N
Temperature -40℃—+70℃
Temperature cycling IL<0.3dB,RL<5dB


Items Test condition Value
Optical performance Insertion Loss(1310nm&1550nm) <0.2dB(typical)/ 0.5dB(Max)
Return Loss(1310nm&1550nm) UPC>40dB,APC>50dB

Environmental Performance

(Max. Insertion Loss change)

Temperature Cycle -20°C ~+70°C (96hours) <0.2dB

Mechanical Performance

(Max. Insertion Loss change)

Online tension 20N- 100N <0.2dB
Impaction 3 axis/3times 4m high <0.2dB
Repeated operation times 5


FTTH Fiber Optical Fast Connector SC Field Installable Fiber Connector 0
