Product Description
FTTH drop cable with easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes.
It is suitable for connecting with communication equipment, and used as access building cable in premises distribution system.
The optical fibers are positioned in the center. Two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides.
Then, the cable is completed with LSZH sheath.
Flat Type Drop Cable, also known as flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance.

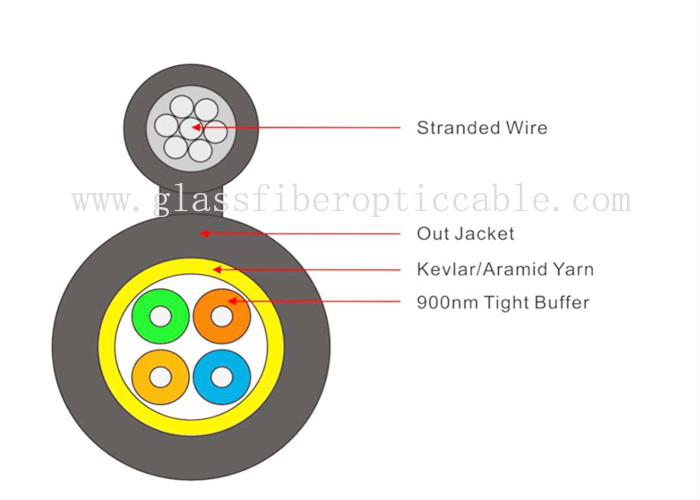

Figure-8 Aerial Drop Cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications.
Round Drop Cable usually contains a single bend-insensitive fiber buffered and surrounded by dielectric strength members and an outer jacket, which can provide durability and reliability in the drop segment of the network.
Also, Hicorpwell drop cables are located on the subscriber end to connect the terminal of a distribution cable to a subscriber's premises. They are typicality small diameter, low fiber count cables with limited unsupported span lengths, which can be installed aerially, underground or buried.
As it is used in outdoor, drop cable shall have a minimum pull strength of 1335 Newtons according to the industry standard. Drop cables are available in many different types.
Cable Characteristics
Cable Technical Parameters
Model | FTTH drop cable | |
Fiber Count | 1-24 Cores | |
Outer diameter (mm) | (2.0±0.2)×(5.0±0.3) | |
Nominal weight(kg/km) | 21.7 | |
Max.tensile Strength(N) | Short-term | 400 |
Long-term | 200 | |
Min.Bending Radius(mm) | Dynamic | 15D |
Static | 7.5D | |
Max.Crush Resistance(N/100mm) | Short-term | 2200 |
Long-term | 1000 | |
Jacket | LSZH | |
Color | Cable | Black |
Fiber | Blue | |
Strength Members | 2×0.5mm FRP | |
Environmental Protection | RoHS COMPLIANT | |
Temperature range | Storage or transportation | -20~70℃ |
Operation | -20~70℃ | |
Installation | 0 ~ 50℃ |
